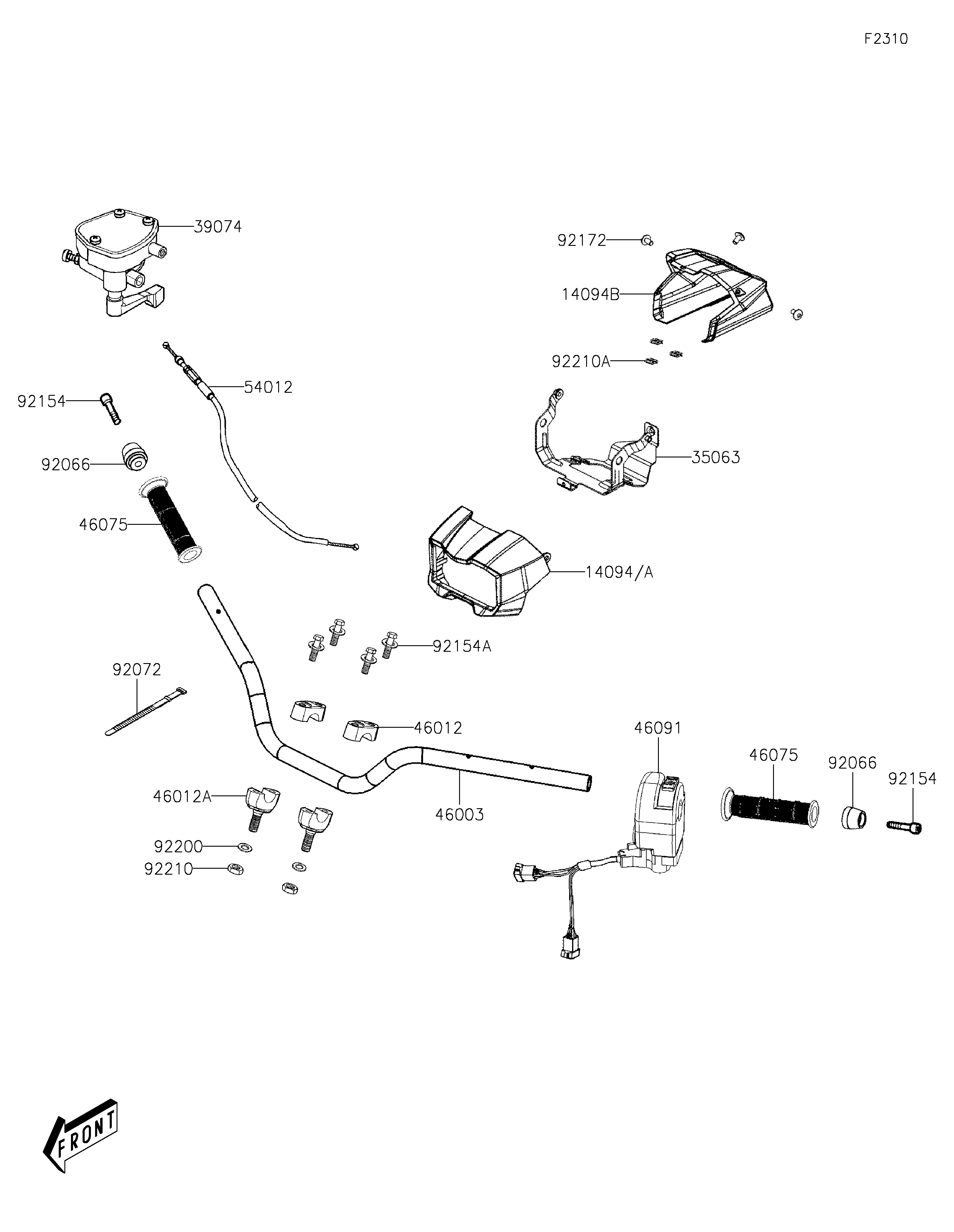

2026 Brute Force 300 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
14094
14094A
14094B
35063
39074
46003
46012
46012A
46075
46075
46091
54012
92066
92066
92072
92154
92154
92154A
92172
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,WORKING LAMP,F.RED 14094 14094-Y012-947 1
COVER,WORKING LAMP,G.BLUE 14094A 14094-Y012-984 1
COVER,METER,S.BLACK 14094B 14094-Y013-933 1
STAY 35063 35063-Y064 1
LEVER-ASSY-THROTTLE 39074 39074-Y001 1
HANDLE,BLACK 46003 46003-Y002-935 1
HOLDER-HANDLE,UPP 46012 46012-Y004 2
HOLDER-HANDLE,LWR 46012A 46012-Y005 2
GRIP,HANDLE 46075 46075-Y004 2
HOUSING-ASSY-CONTROL 46091 46091-Y007 1
CABLE-THROTTLE 54012 54012-Y010 1
PLUG,HANDLE 92066 92066-Y010 2
BAND 92072 92072-Y001 1
BOLT,8X42 92154 92154-Y017 2
BOLT,8X35 92154A 92154-Y018 4
SCREW,PAN,6X12 92172 92172-Y109 3
WASHER,10MM 92200 92200-Y020 2
NUT,10MM 92210 92210-Y042 2
NUT,5MM 92210A 92210-Y072 3
