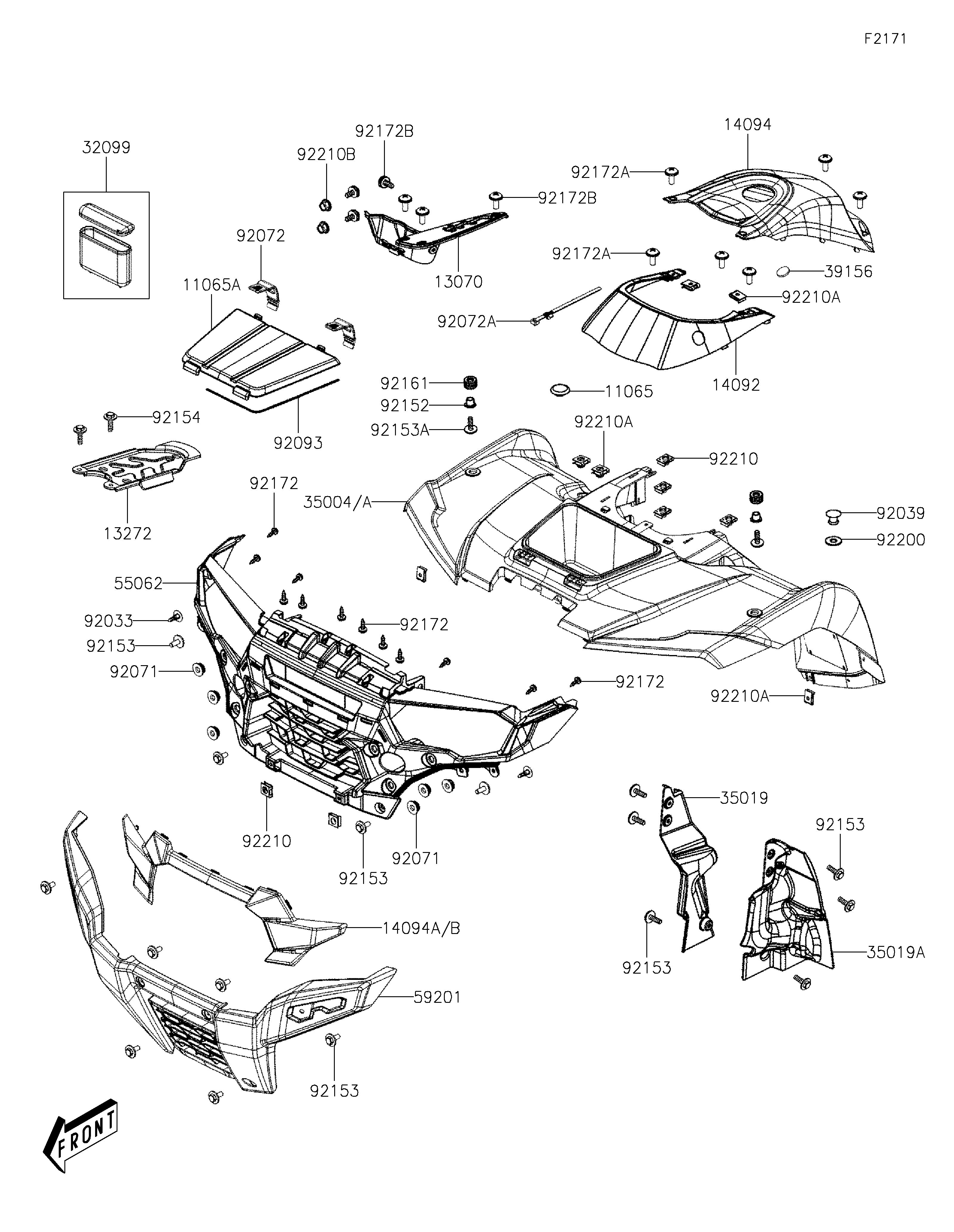

2026 Brute Force 300 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065A
13070
13272
14092
14094
14094A
14094B
32099
35004
35004A
35019
35019A
39156
55062
59201
92033
92039
92071
92071
92072
92072A
92093
92152
92153
92153
92153
92153
92153
92153A
92154
92161
92172
92172
92172
92172A
92172A
92172B
92172B
92200
92210
92210
92210A
92210A
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,TOOL BOX 11065 11065-Y009 1
CAP,STORAGE BOX,S.BLACK 11065A 11065-Y010-933 1
GUIDE,COVER SHIFT LEVER,BLACK 13070 13070-Y003-933 1
PLATE,S.BLACK 13272 13272-Y010-933 1
COVER,FRONT FENDER,S.BLACK 14092 14092-Y009-933 1
COVER,FUEL TANK,S.BLACK 14094 14094-Y022-933 1
COVER,FR GRILLE,F.RED 14094A 14094-Y025-947 1
COVER,FR GRILLE,G.BLUE 14094B 14094-Y025-984 1
CASE,OWNERS MANUAL 32099 32099-Y006 1
FENDER-FRONT,F.RED 35004 35004-Y016-947 1
FENDER-FRONT,G.BLUE 35004A 35004-Y016-984 1
FLAP,RH,S.BLACK 35019 35019-Y001-933 1
FLAP,LH,S.BLACK 35019A 35019-Y002-933 1
PAD,SIDE COVER 39156 39156-Y002 1
COVER-HEAD LAMP,S.BLACK 55062 55062-Y002-933 1
BUMPER,FR,S.BLACK 59201 59201-Y004-933 1
RIVET 92033 92033-Y010 2
RIVET,3.2X9.8 92039 92039-Y001 6
GROMMET 92071 92071-Y005 6
BAND,CAP STORAGE BOX 92072 92072-Y006 2
BAND 92072A 92072-Y007 1
SEAL 92093 92093-Y012 1
COLLAR 92152 92152-Y018 2
BOLT,6X16 92153 92153-Y018 16
BOLT,6X20 92153A 92153-Y019 2
BOLT,FLANGE,6MM 92154 92154-Y023 2
DAMPER 92161 92161-Y011 2
SCREW,TAPPING,5X12 92172 92172-Y038 12
SCREW,5X16 92172A 92172-Y039 6
SCREW,6X20 92172B 92172-Y041 6
WASHER,3MM 92200 92200-Y017 6
NUT,6MM 92210 92210-Y011 6
NUT,5MM 92210A 92210-Y016 6
NUT 92210B 92210-Y031 2
