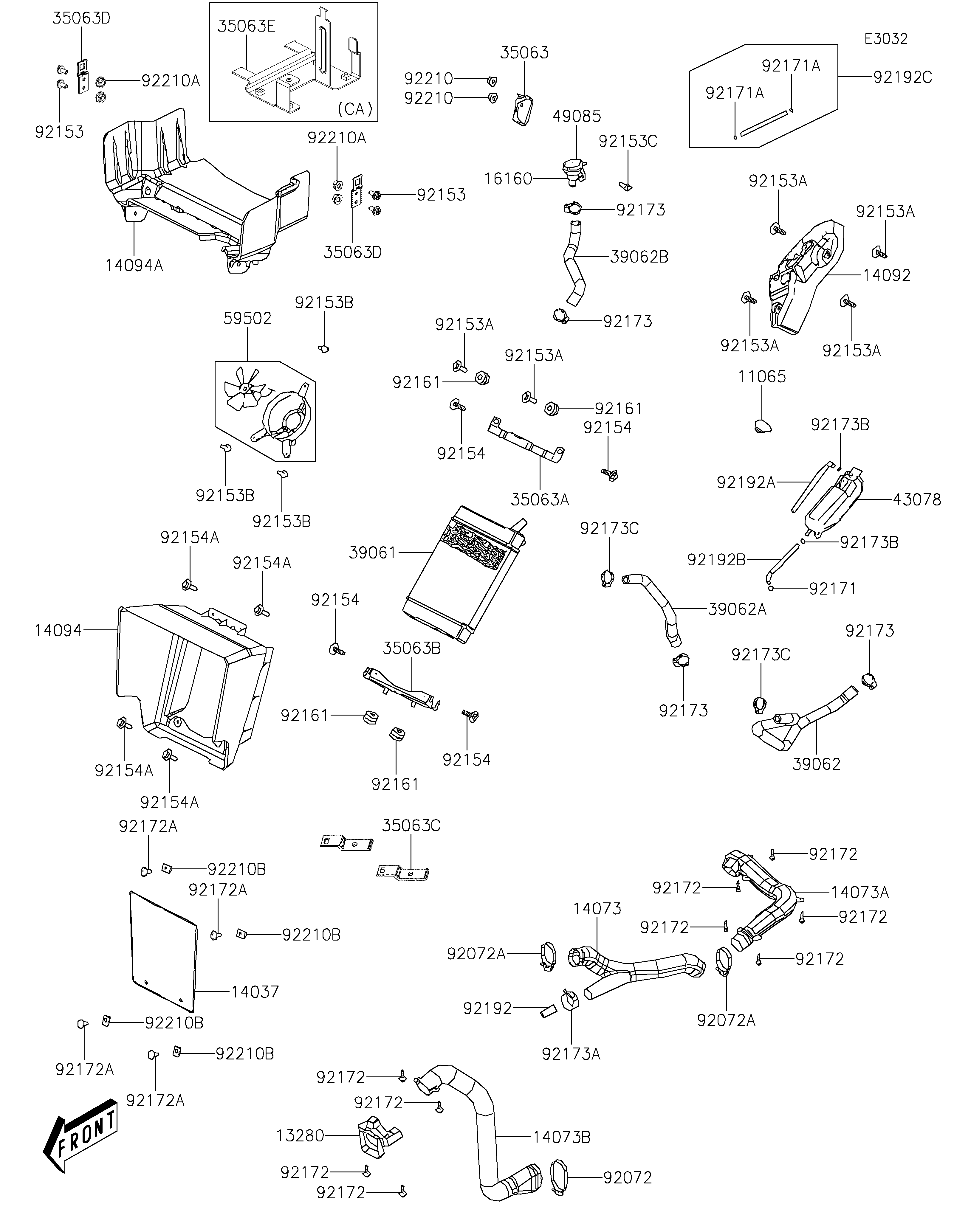

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11065
11065
13280
13280
14037
14037
14073
14073
14073A
14073A
14073B
14073B
14092
14092
14094
14094
14094A
14094A
16160
16160
35063
35063
35063A
35063A
35063B
35063B
35063C
35063C
35063D
35063D
35063D
35063D
35063E
35063E
39061
39061
39062
39062
39062A
39062A
39062B
39062B
43078
43078
49085
49085
59502
59502
92072
92072
92072A
92072A
92072A
92072A
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153C
92153C
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92161
92161
92161
92161
92161
92161
92161
92161
92171
92171
92171A
92171A
92171A
92171A
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173B
92173B
92173B
92173B
92173C
92173C
92173C
92173C
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,RESERVE TANK | 11065 | 11065-Y021 | 1 | ||
| HOLDER,DUCT | 13280 | 13280-Y017 | 1 | ||
| SCREEN | 14037 | 14037-Y003 | 1 | ||
| DUCT | 14073 | 14073-Y004 | 1 | ||
| DUCT | 14073A | 14073-Y006 | 1 | ||
| DUCT,COVER,LH | 14073B | 14073-Y033 | 1 | ||
| COVER,MASTER CYLINDER | 14092 | 14092-Y021 | 1 | ||
| COVER,RADIATOR,S.BLACK | 14094 | 14094-Y023-933 | 1 | ||
| COVER,WATERPROOF,S.BLACK | 14094A | 14094-Y024-933 | 1 | ||
| BODY,PRESSURE CAP | 16160 | 16160-Y003 | 1 | ||
| STAY,CAP-ASSY | 35063 | 35063-Y014 | 1 | ||
| STAY,RADIATOR,UPP | 35063A | 35063-Y015 | 1 | ||
| STAY,RADIATOR,LWR | 35063B | 35063-Y016 | 1 | ||
| STAY,COUPLER | 35063C | 35063-Y061 | 2 | ||
| STAY,RELAY | 35063D | 35063-Y062 | 2 | ||
| STAY,CANISTER | 35063E | 35063-Y065 | 1 | CA | |
| RADIATOR-ASSY | 39061 | 39061-Y006 | 1 | ||
| HOSE-COOLING | 39062 | 39062-Y002 | 1 | ||
| HOSE-COOLING | 39062A | 39062-Y003 | 1 | ||
| HOSE-COOLING | 39062B | 39062-Y033 | 1 | ||
| RESERVOIR,TANK | 43078 | 43078-Y002 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-Y001 | 1 | ||
| FAN-ASSY | 59502 | 59502-Y001 | 1 | ||
| BAND | 92072 | 92072-Y009 | 1 | ||
| BAND | 92072A | 92072-Y010 | 2 | ||
| BOLT,FLANGED,5X12 | 92153 | 92153-1991 | 4 | ||
| BOLT,6X16 | 92153A | 92153-Y018 | 6 | ||
| BOLT,6X20 | 92153B | 92153-Y019 | 3 | ||
| BOLT,FLANGE,6X12 | 92153C | 92153-Y023 | 1 | ||
| BOLT,6X12 | 92154 | 92154-Y032 | 4 | ||
| BOLT,5X12 | 92154A | 92154-Y049 | 4 | ||
| DAMPER | 92161 | 92161-Y006 | 4 | ||
| CLAMP | 92171 | 92171-Y011 | 1 | ||
| CLAMP | 92171A | 92171-Y017 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-Y020 | 9 | ||
| SCREW,4MM | 92172A | 92172-Y049 | 4 | ||
| CLAMP | 92173 | 92173-Y005 | 4 | ||
| CLAMP | 92173A | 92173-Y024 | 1 | ||
| CLAMP | 92173B | 92173-Y025 | 2 | ||
| CLAMP | 92173C | 92173-Y026 | 2 | ||
| TUBE,DRAIN | 92192 | 92192-Y019 | 1 | ||
| TUBE,DRAIN | 92192A | 92192-Y023 | 1 | ||
| TUBE,RESERVOIR | 92192B | 92192-Y091 | 1 | ||
| TUBE,RADIATOR CAP | 92192C | 92192-Y092 | 1 | ||
| NUT,6MM | 92210 | 92210-Y026 | 2 | ||
| NUT,FLANGE,5MM | 92210A | 92210-Y053 | 4 | ||
| NUT,4MM | 92210B | 92210-Y054 | 4 |
| CAP,RESERVE TANK | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,DUCT | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREEN | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,COVER,LH | |
| REF # | 14073B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,MASTER CYLINDER | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RADIATOR,S.BLACK | |
| REF # | 14094 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,WATERPROOF,S.BLACK | |
| REF # | 14094A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY,PRESSURE CAP | |
| REF # | 16160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,CAP-ASSY | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,RADIATOR,UPP | |
| REF # | 35063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,RADIATOR,LWR | |
| REF # | 35063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,COUPLER | |
| REF # | 35063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STAY,RELAY | |
| REF # | 35063D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STAY,CANISTER | |
| REF # | 35063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR,TANK | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,5X12 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGE,6X12 | |
| REF # | 92153C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,5X12 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SCREW,4MM | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,DRAIN | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,DRAIN | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,RESERVOIR | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,RADIATOR CAP | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGE,5MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,4MM | |
| REF # | 92210B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
