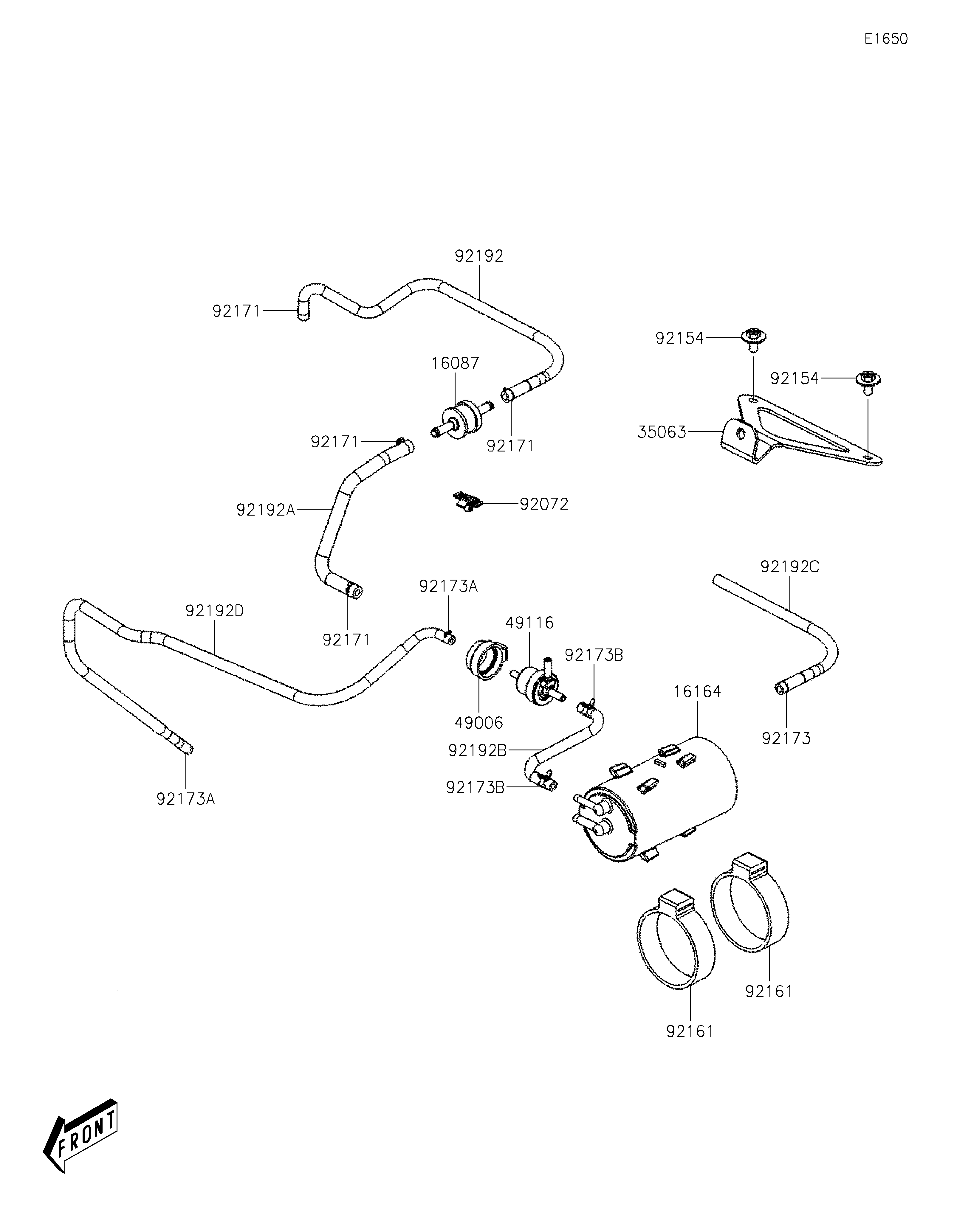

2026 Brute Force 300 - Fuel Evaporative System(CA)
16087
16164
35063
49006
49116
92072
92154
92154
92161
92161
92171
92171
92171
92171
92173
92173A
92173A
92173B
92173B
92192
92192A
92192B
92192C
92192D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE-CHECK | 16087 | 16087-Y002 | 1 | CA | |
| CANISTER | 16164 | 16164-Y005 | 1 | CA | |
| STAY,CHECK VALVE | 35063 | 35063-Y066 | 1 | CA | |
| BOOT,VCV | 49006 | 49006-Y024 | 1 | CA | |
| VALVE-ASSY,VAPOR CONTROL | 49116 | 49116-Y002 | 1 | CA | |
| BAND | 92072 | 92072-Y007 | 1 | CA | |
| BOLT,5X16 | 92154 | 92154-Y085 | 2 | CA | |
| DAMPER,CANISTER MOUNT | 92161 | 92161-Y070 | 2 | CA | |
| CLAMP | 92171 | 92171-Y011 | 4 | CA | |
| CLAMP,D12.5 | 92173 | 92173-Y106 | 1 | CA | |
| CLAMP | 92173A | 92173-Y110 | 2 | CA | |
| CLAMP,D8 | 92173B | 92173-Y111 | 2 | CA | |
| TUBE,CHECK VALVE-TANK | 92192 | 92192-Y093 | 1 | CA | |
| TUBE,CANISTER-CHECK VALVE | 92192A | 92192-Y094 | 1 | CA | |
| TUBE,CANISTER-VCV | 92192B | 92192-Y095 | 1 | CA | |
| TUBE,DRAIN,CANISTER | 92192C | 92192-Y097 | 1 | CA | |
| TUBE,VACUUM | 92192D | 92192-Y098 | 1 | CA |
