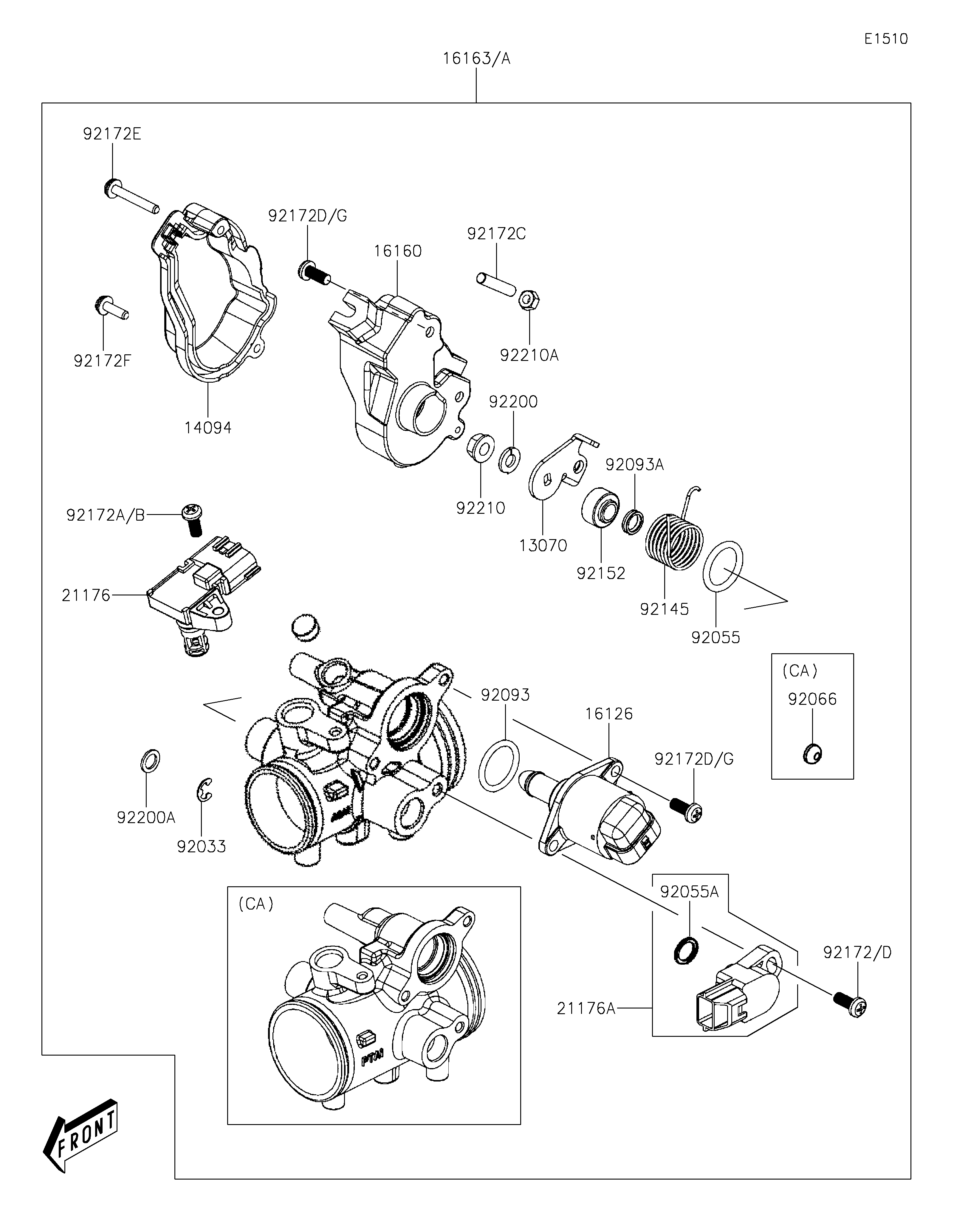

2026 Brute Force 300 - Throttle

DOWNLOAD PDF
SELECT A NEW PART
13070
14094
16126
16160
16163
16163A
21176
21176A
92033
92055
92055A
92066
92093
92093A
92145
92152
92172
92172A
92172B
92172C
92172D
92172D
92172D
92172E
92172F
92172G
92172G
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE 13070 13070-Y006 1
COVER,WIRE STAY,S.BLACK 14094 14094-Y005-933 1
VALVE,ISC 16126 16126-Y005 1
BODY,WIRE STAY 16160 16160-Y007 1
THROTTLE-ASSY 16163 16163-Y009 1 CN,US
THROTTLE-ASSY 16163A 16163-Y010 1 CA
SENSOR,PRESSURE 21176 21176-Y012 1
SENSOR,THROTTLE POSITION 21176A 21176-Y013 1
RING-SNAP,TYPE E 92033 92033-Y061 1
RING-O 92055 92055-Y077 1
RING-O,TPS 92055A 92055-Y082 1
PLUG 92066 92066-Y008 1 CA
SEAL 92093 92093-Y030 1
SEAL 92093A 92093-Y050 1
SPRING 92145 92145-Y076 1
COLLAR 92152 92152-Y079 1
SCREW,5X16 92172 92172-Y084 1 CN,US
SCREW,TAPPING,4X12 92172A 92172-Y085 1 CA
SCREW,PAN,4X12 92172B 92172-Y086 1 CN,US
SCREW,PILOT 92172C 92172-Y093 1
SCREW,PAN,5X12 92172D 92172-Y096 5 CA
SCREW,4X30 92172E 92172-Y110 1
SCREW,4X16 92172F 92172-Y111 1
SCREW,5X12 92172G 92172-Y112 4 CN,US
WASHER,6MM 92200 92200-Y042 1
WASHER 92200A 92200-Y108 1
NUT,6MM 92210 92210-Y027 1
NUT,HEX,5MM 92210A 92210-Y113 1
