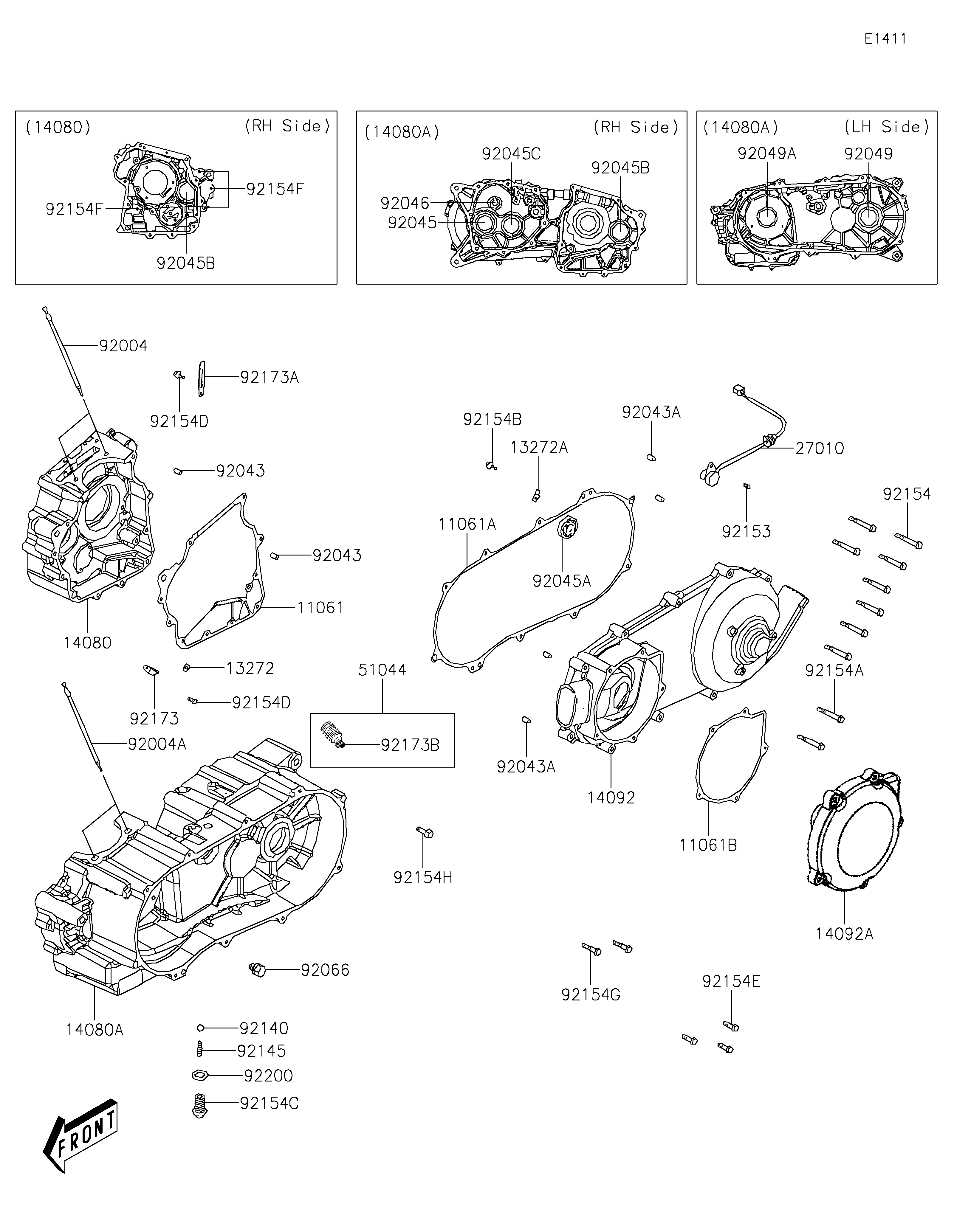

2026 Brute Force 300 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
13272
13272A
14080
14080A
14092
14092A
27010
51044
92004
92004A
92043
92043
92043A
92043A
92045
92045A
92045B
92045B
92045C
92046
92049
92049A
92066
92140
92145
92153
92154
92154A
92154B
92154C
92154D
92154D
92154E
92154F
92154F
92154G
92154H
92173
92173A
92173B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CRANK CASE 11061 11061-Y023 1
GASKET,CRANK CASE COVER,LH 11061A 11061-Y024 1
GASKET,RECOIL STARTER 11061B 11061-Y025 1
PLATE 13272 13272-Y003 1
PLATE 13272A 13272-Y004 1
CRANKCASE,RH 14080 14080-Y005 1
CRANKCASE,LH 14080A 14080-Y006 1
COVER,CRANK CASE,LH 14092 14092-Y004 1
COVER 14092A 14092-Y023 1
SWITCH,GEAR CHANGE 27010 27010-Y030 1
TUBE-ASSY,BREATHER 51044 51044-Y026 1
STUD 92004 92004-Y008 2
STUD 92004A 92004-Y009 2
PIN,8X14 92043 92043-Y012 2
PIN,10X16 92043A 92043-Y013 4
BEARING-BALL,6305 92045 92045-Y013 1
BEARING-BALL,6005LLU 92045A 92045-Y014 1
BEARING-BALL,6205 92045B 92045-Y015 2
BEARING-BALL,6304 92045C 92045-Y016 1
BEARING-NEEDLE 92046 92046-Y004 1
SEAL-OIL,25X40X8 92049 92049-Y010 1
SEAL-OIL,27X42X7 92049A 92049-Y049 1
PLUG,DRAIN 92066 92066-Y014 1
BALL,STEEL 12 92140 92140-Y001 1
SPRING 92145 92145-Y024 1
BOLT,FLANGE,6X10 92153 92153-Y045 1
BOLT,FLANGED,6X28 92154 92154-Y001 8
BOLT,FLANGED,6X40 92154A 92154-Y002 2
BOLT,SOCKET,6X10 92154B 92154-Y003 1
BOLT,14X21 92154C 92154-Y004 1
BOLT,FLANGE,6X12 92154D 92154-Y035 2
BOLT,FLANGE,6X25 92154E 92154-Y066 3
BOLT,FLANGED,6X50 92154F 92154-Y126 4
BOLT,FLANGE,6X32 92154G 92154-Y128 2
BOLT,SOCKET,6X10 92154H 92154-Y129 1
CLAMP 92173 92173-Y001 1
CLAMP 92173A 92173-Y002 1
CLAMP,10.5 92173B 92173-Y023 1
WASHER 92200 92200-Y023 1
