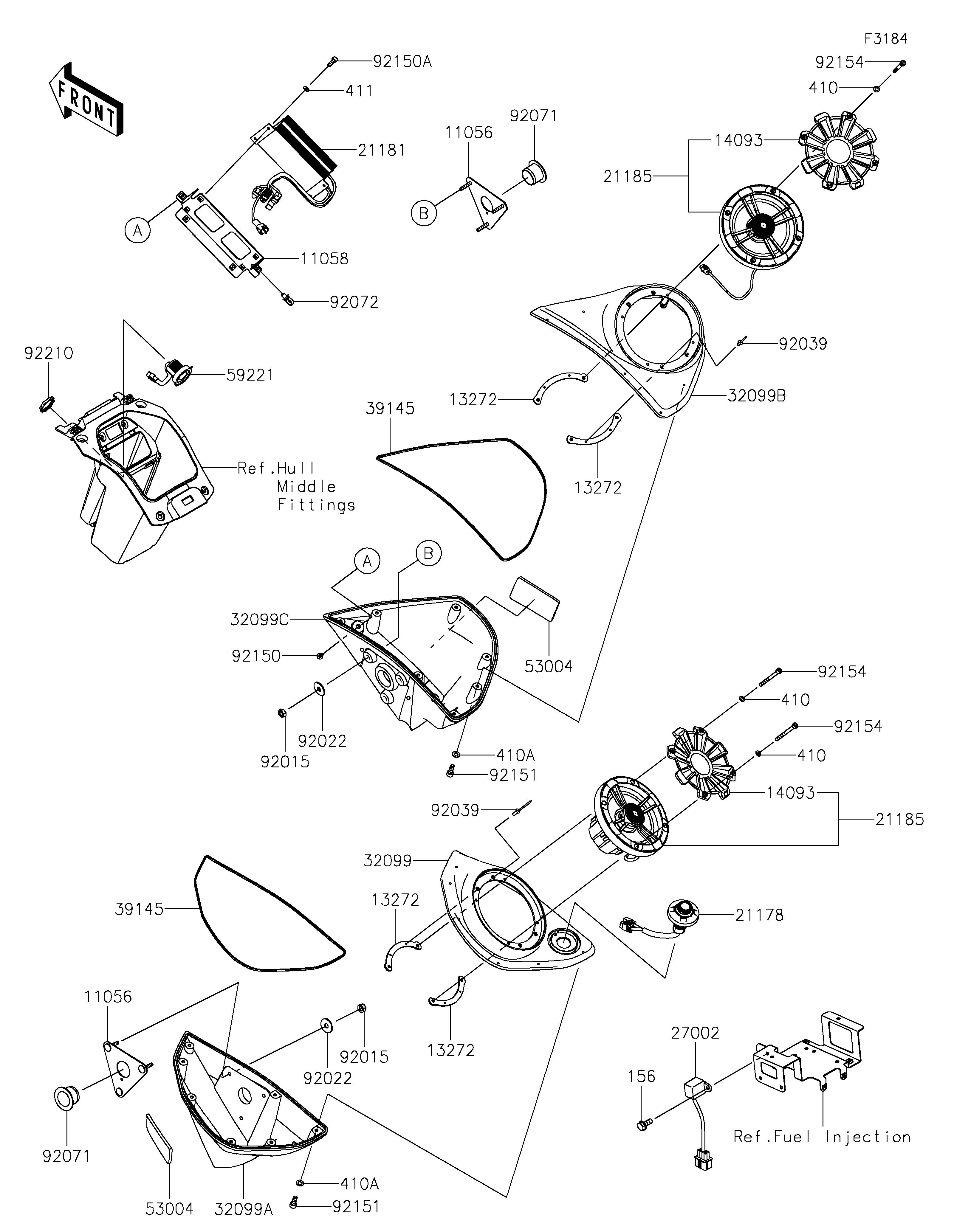

2026 JET SKI® STX® 160LX - Other

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11058
13272
13272
13272
13272
14093
14093
21178
21181
21185
21185
27002
32099
32099A
32099B
32099C
39145
39145
53004
53004
59221
92015
92015
92022
92022
92039
92039
92071
92071
92072
92150
92150A
92151
92151
92154
92154
92154
92210
156
410
410
410
410A
410A
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SPEAKER 11056 11056-2493 2
BRACKET,AMPLIFIER 11058 11058-1430 1
PLATE,SPEAKER,LWR 13272 13272-3866 4
COVER,SPEAKER GRILLE 14093 14093-1186 2
CONTROL-SWITCH,AUDIO 21178 21178-0009 1
AMPLIFIER 21181 21181-0021 1
SPEAKER,LWR 21185 21185-0036 2
RELAY-ASSY 27002 27002-3703 1
CASE,SPEAKER,LH,UPP,S.BLACK 32099 32099-0834-839 1
CASE,SPEAKER,LH,LWR,S.BLACK 32099A 32099-0835-839 1
CASE,SPEAKER,RH,UPP,S.BLACK 32099B 32099-0836-839 1
CASE,SPEAKER,RH,LWR,S.BLACK 32099C 32099-0837-839 1
TRIM-SEAL 39145 39145-0780 2
MAT 53004 53004-0614 2
CONNECTOR-CORD,USB 59221 59221-0049 1
NUT,LOCK,6MM 92015 92015-3766 6
WASHER,6.5X20X1.5 92022 92022-3710 6
RIVET,3.2X8 92039 92039-3763 8
GROMMET 92071 92071-0864 2
BAND,OS170-FT7(BLACK) 92072 92072-1414 1
BOLT,5X12 92150 92150-3760 4
BOLT,SOCKET,6X18 92150A 92150-3775 4
BOLT,SOCKET,5X14 92151 92151-1581 14
BOLT,SOCKET,4X40 92154 92154-4331 8
NUT 92210 92210-1934 1
BOLT-WP,6X16 156 156R0616 1
WASHER-PLAIN-SMALL,4MM 410 410S0400 8
W-PLAIN-S,5MM 410A 410S0500 14
WASHER-PLAIN,6MM 411 411S0600 4
