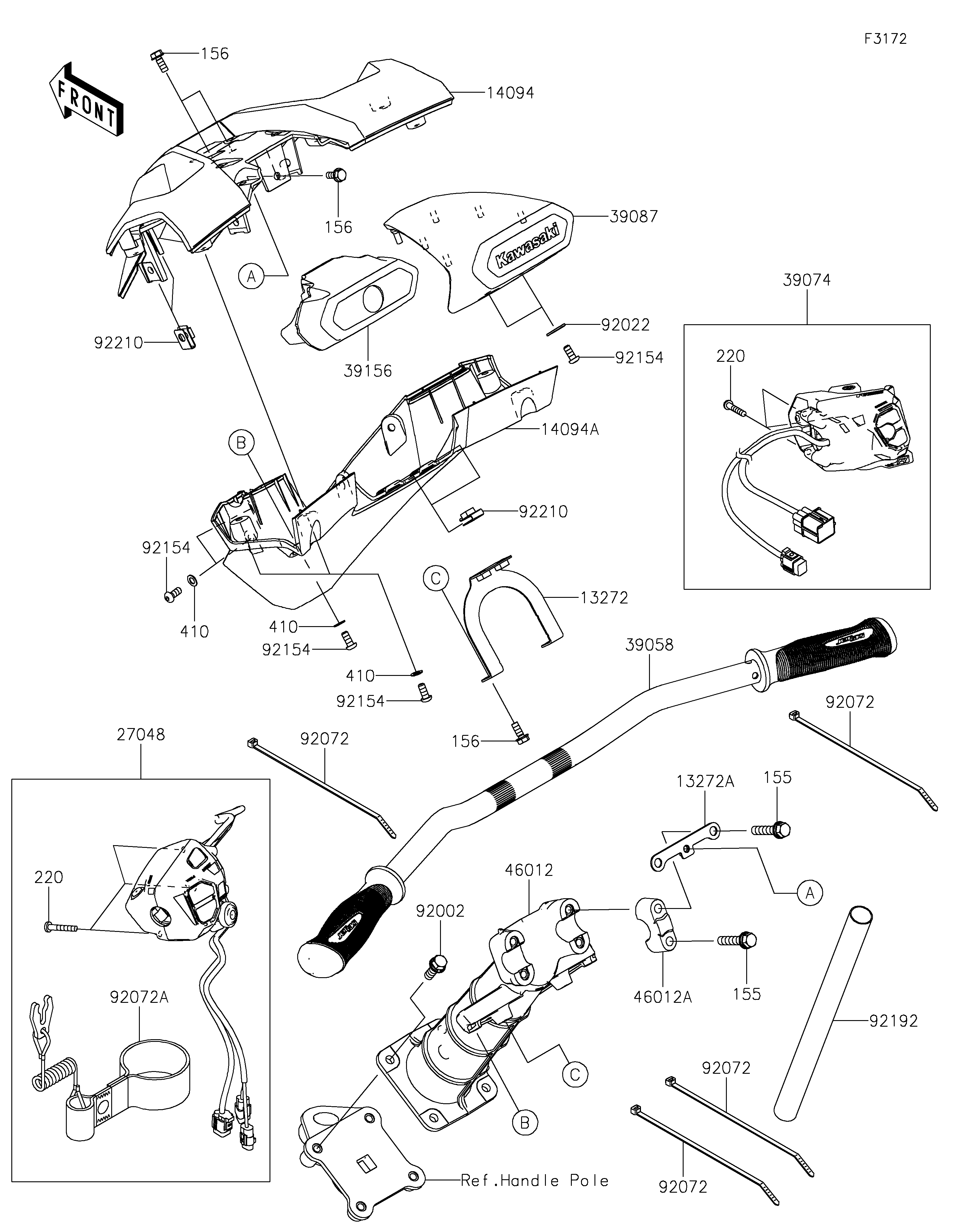

2026 JET SKI® STX® 160LX - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13272
13272A
14094
14094A
27048
39058
39074
39087
39156
46012
46012A
92002
92022
92072
92072
92072
92072
92072A
92154
92154
92154
92154
92192
92210
92210
155
155
156
156
156
220
220
410
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,HANDLE HOLDER 13272 13272-4373 1
PLATE 13272A 13272-4374 1
COVER,HOLDER,FR 14094 14094-0068 1
COVER,HOLDER,RR 14094A 14094-0069 1
SWITCH-ASSY,STOP&START 27048 27048-0054 1
HANDLE-COMP,BLACK 39058 39058-0049-6Z 1
LEVER-ASSY-THROTTLE 39074 39074-0014 1
PAD-HANDLE,GRAY 39087 39087-0022-66L 1
PAD,INNER 39156 39156-2901 1
HOLDER-HANDLE 46012 46012-0394 1
HOLDER-HANDLE,UPP 46012A 46012-3720 2
BOLT,8X25 92002 92002-3774 4
WASHER,6.5X20X1.5 92022 92022-3710 2
BAND,L=188.85 92072 92072-0105 4
BAND,TETHER SWITCH 92072A 92072-0891 1
BOLT,SOCKET,6X14 92154 92154-3988 12
TUBE,35X37X200 92192 92192-1990 1
NUT,6MM 92210 92210-3768 6
BOLT-WSP-SMALL,8X40 155 155R0840 4
BOLT-WP,6X16 156 156R0616 5
SCREW-PAN-CROS,5X30 220 220R0530 6
WASHER-PLAIN-SMALL,6MM 410 410S0600 10
