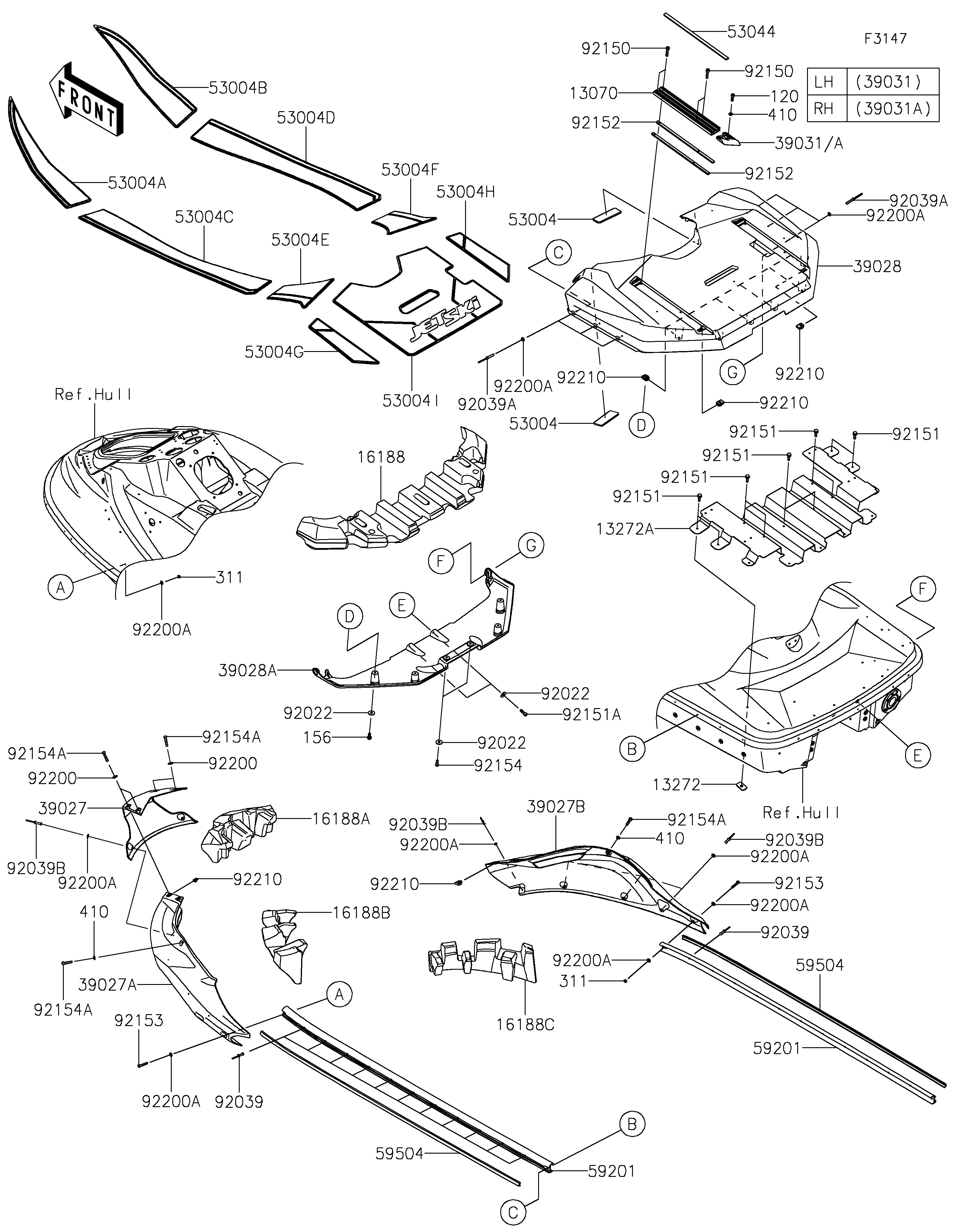

2026 JET SKI® STX® 160LX - Pads

DOWNLOAD PDF
SELECT A NEW PART
13070
13070
13272
13272
13272A
13272A
16188
16188
16188A
16188A
16188B
16188B
16188C
16188C
39027
39027
39027A
39027A
39027B
39027B
39028
39028
39028A
39028A
39031
39031
39031A
39031A
53004
53004
53004
53004
53004A
53004A
53004B
53004B
53004C
53004C
53004D
53004D
53004E
53004E
53004F
53004F
53004G
53004G
53004H
53004H
53004I
53004I
53044
53044
59201
59201
59201
59201
59504
59504
59504
59504
92022
92022
92022
92022
92022
92022
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039B
92039B
92039B
92039B
92039B
92039B
92150
92150
92150
92150
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151A
92151A
92152
92152
92152
92152
92153
92153
92153
92153
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
120
120
156
156
311
311
311
311
410
410
410
410
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,RR 13070 13070-0974 2
PLATE 13272 13272-3861 10
PLATE,RR BUMPER 13272A 13272-4345 1
FLOAT,RR BUMPER 16188 16188-0090 1
FLOAT,FR,CNT 16188A 16188-0161 1
FLOAT,FR,LH 16188B 16188-0162 1
FLOAT,FR,RH 16188C 16188-0163 1
BUMPER-FRONT,CNT,C.WHITE 39027 39027-0007-57Z 1
BUMPER-FRONT,LH,BLACK 39027A 39027-0008-6Z 1
BUMPER-FRONT,RH,BLACK 39027B 39027-0009-6Z 1
BUMPER-REAR,UPP,BLACK 39028 39028-0012-6Z 1
BUMPER-REAR,LWR,BLACK 39028A 39028-0013-6Z 1
CAP-END,LH,S.BLACK 39031 39031-0036-839 1
CAP-END,RH,S.BLACK 39031A 39031-0037-839 1
MAT,50X135X6 53004 53004-0694 2
MAT,FR,LH 53004A 53004-0734 1
MAT,FR,RH 53004B 53004-0735 1
MAT,MID,LH,FR 53004C 53004-0736 1
MAT,MID,RH,FR 53004D 53004-0737 1
MAT,MID,LH,RR 53004E 53004-0738 1
MAT,MID,RH,RR 53004F 53004-0739 1
MAT,RR,LH 53004G 53004-0741 1
MAT,RR,RH 53004H 53004-0742 1
MAT,RR,CNT 53004I 53004-0756 1
TRIM,GUIDE 53044 53044-0733 2
BUMPER,SIDE,BLACK 59201 59201-0011-6Z 2
INSERT-BOAT FENDER,F.SILVER 59504 59504-0007-AG 2
WASHER,6.5X20X1.5 92022 92022-3710 8
RIVET 92039 92039-3771 22
RIVET 92039A 92039-3773 6
RIVET 92039B 92039-3794 8
BOLT,SOCKET,6X30 92150 92150-3822 8
BOLT,6X22 92151 92151-3769 10
BOLT,SOCKET,6X20 92151A 92151-3774 2
COLLAR,GUIDE 92152 92152-2815 4
BOLT,SOCKET,5X30 92153 92153-3742 2
BOLT,SOCKET,6X18 92154 92154-4447 2
BOLT,SOCKET,6X30 92154A 92154-7512 6
WASHER,6.5X16X1.0 92200 92200-3712 4
WASHER,5X12X1 92200A 92200-3796 18
NUT,6MM 92210 92210-3768 10
BOLT-SOCKET,6X20 120 120R0620 2
BOLT-WP,6X16 156 156R0616 4
NUT-HEX,5MM 311 311R0500 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
