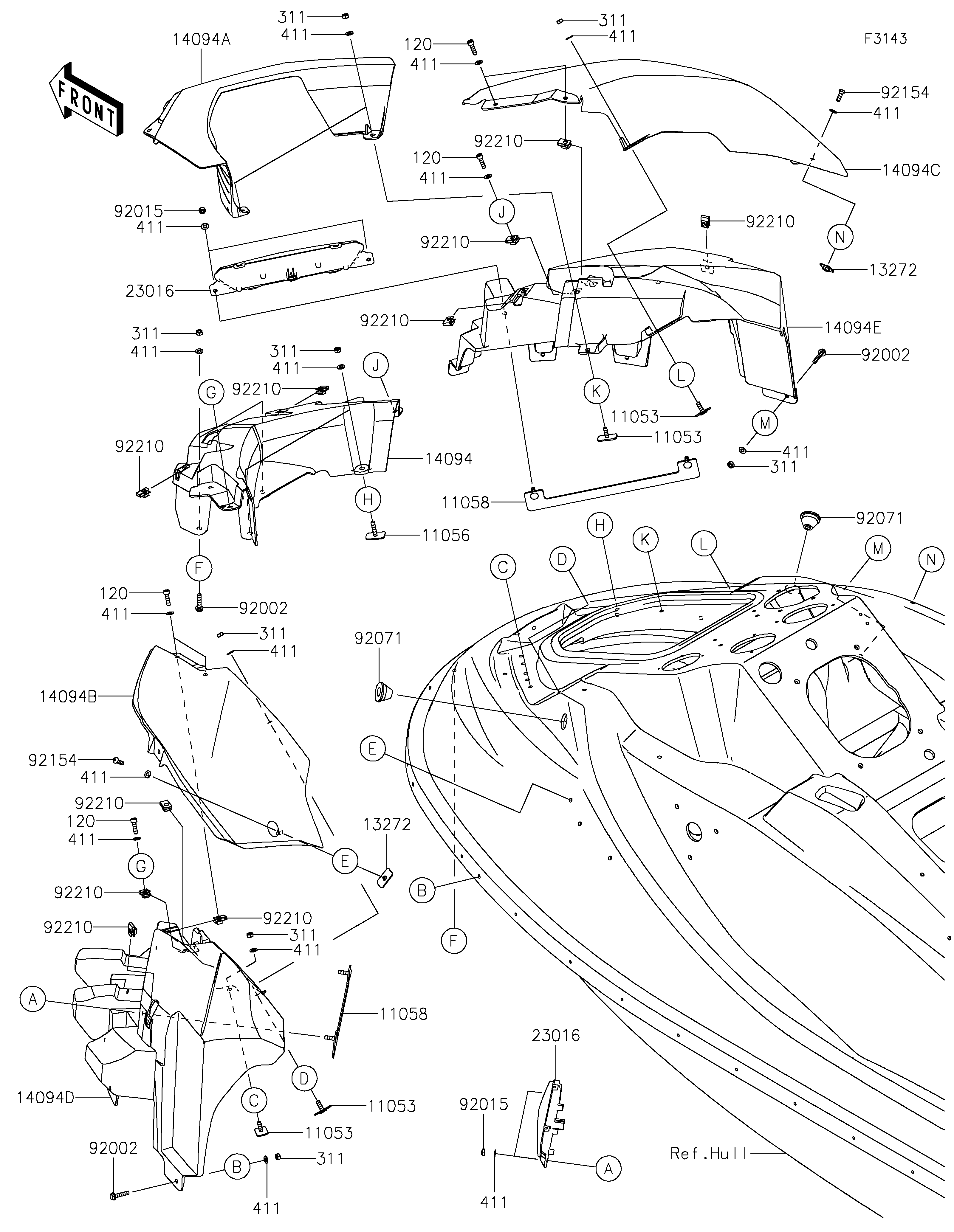

2026 JET SKI® STX® 160LX - Hull Fittings
11053
11053
11053
11053
11056
11058
11058
13272
13272
14094
14094A
14094B
14094C
14094D
14094E
23016
23016
92002
92002
92002
92015
92015
92071
92071
92154
92154
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
120
120
120
120
311
311
311
311
311
311
311
311
411
411
411
411
411
411
411
411
411
411
411
411
411
411
411
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11053 | 11053-3776 | 4 | ||
| BRACKET | 11056 | 11056-3724 | 2 | ||
| BRACKET,ACCENT LAMP | 11058 | 11058-2110 | 2 | ||
| PLATE | 13272 | 13272-3861 | 2 | ||
| COVER,TRIM INNER | 14094 | 14094-0079 | 1 | ||
| COVER,FR TRIM,M.P.SILVER | 14094A | 14094-0080-IS | 1 | ||
| COVER,DECK,LH,M.P.SILVER | 14094B | 14094-0085-IS | 1 | ||
| COVER,DECK,RH,M.P.SILVER | 14094C | 14094-0086-IS | 1 | ||
| COVER,ACCENT LAMP,LH | 14094D | 14094-0087 | 1 | ||
| COVER,ACCENT LAMP,RH | 14094E | 14094-0088 | 1 | ||
| LAMP-ASSY,LED,CLEAR | 23016 | 23016-0677 | 2 | ||
| BOLT,6X30 | 92002 | 92002-3726 | 10 | ||
| NUT,LOCK,6MM | 92015 | 92015-3766 | 4 | ||
| GROMMET | 92071 | 92071-0862 | 2 | ||
| BOLT,SOCKET,6X18 | 92154 | 92154-4447 | 2 | ||
| NUT,6MM | 92210 | 92210-3768 | 10 | ||
| BOLT-SOCKET,6X22 | 120 | 120R0622 | 6 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 16 | ||
| WASHER-PLAIN,6MM | 411 | 411S0600 | 28 |
