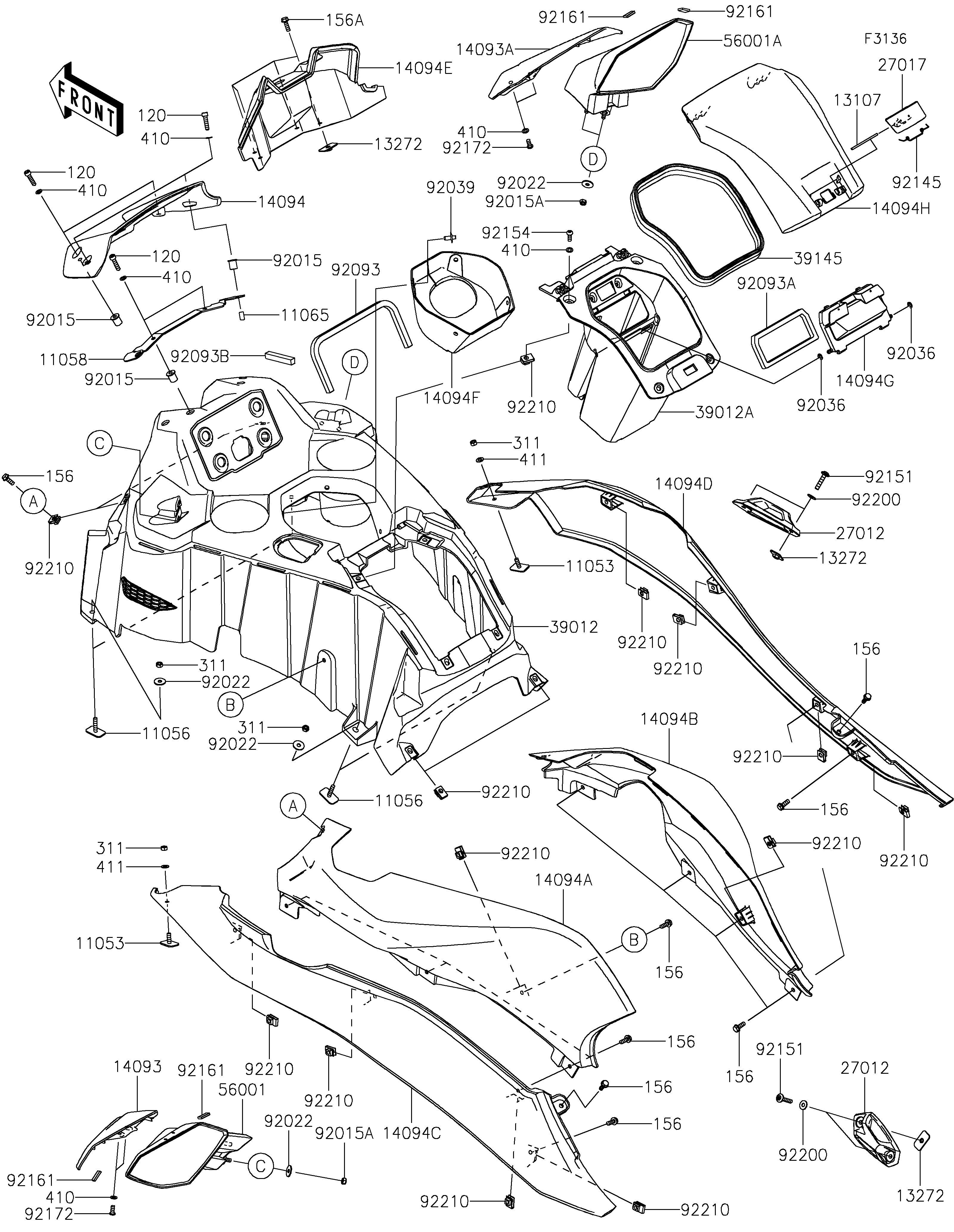

2026 JET SKI® STX® 160LX - Hull Middle Fittings

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053
11053
11056
11056
11056
11056
11058
11058
11065
11065
13107
13107
13272
13272
13272
13272
13272
13272
14093
14093
14093A
14093A
14094
14094
14094A
14094A
14094B
14094B
14094C
14094C
14094D
14094D
14094E
14094E
14094F
14094F
14094G
14094G
14094H
14094H
27012
27012
27012
27012
27017
27017
39012
39012
39012A
39012A
39145
39145
56001
56001
56001A
56001A
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92022
92022
92036
92036
92036
92036
92039
92039
92093
92093
92093A
92093A
92093B
92093B
92145
92145
92151
92151
92151
92151
92154
92154
92161
92161
92161
92161
92161
92161
92161
92161
92172
92172
92172
92172
92200
92200
92200
92200
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
120
120
120
120
120
120
156
156
156
156
156
156
156
156
156
156
156
156
156
156
156
156
156A
156A
311
311
311
311
311
311
311
311
410
410
410
410
410
410
410
410
410
410
410
410
411
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-3776 2
BRACKET 11056 11056-3724 4
BRACKET,METER VISOR 11058 11058-1499 1
CAP 11065 11065-1422 2
SHAFT 13107 13107-3790 1
PLATE 13272 13272-3861 8
COVER,MIRROR,LH,C.WHITE 14093 14093-1148-57Z 1
COVER,MIRROR,RH,C.WHITE 14093A 14093-1149-57Z 1
COVER,METER VISOR 14094 14094-0070 1
COVER,SIDE,LH,UPP,EBONY 14094A 14094-0089-H8 1
COVER,SIDE,RH,UPP,EBONY 14094B 14094-0090-H8 1
COVER,SIDE,LH,LWR,EBONY 14094C 14094-0091-H8 1
COVER,SIDE,RH,LWR,EBONY 14094D 14094-0092-H8 1
COVER,DUCT 14094E 14094-0093 1
COVER,HANDLE 14094F 14094-0094 1
COVER,STORAGE,INSIDE 14094G 14094-0095 1
COVER,STORAGE,OUT,S.BLACK 14094H 14094-0096-839 1
HOOK,CLEAT 27012 27012-0919 2
LOCK,CNT STORAGE 27017 27017-0594 1
CASE-STORAGE 39012 39012-0082 1
CASE-STORAGE 39012A 39012-0083 1
TRIM-SEAL,STRAGE,CNT 39145 39145-0802 1
MIRROR-ASSY,LH 56001 56001-0440 1
MIRROR-ASSY,RH 56001A 56001-0441 1
NUT 92015 92015-1700 6
NUT,LOCK,6MM 92015A 92015-3766 4
WASHER,6.5X20X1.5 92022 92022-3710 8
RING-SNAP 92036 92036-518 2
RIVET 92039 92039-3785 4
SEAL 92093 92093-0808 1
SEAL 92093A 92093-0833 1
SEAL,10X10X60 92093B 92093-0872 1
SPRING 92145 92145-3729 1
BOLT,SOCKET,6X30 92151 92151-1605 4
BOLT,SOCKET,6X18 92154 92154-4447 4
DAMPER,10X20X3 92161 92161-2787 4
SCREW,TAPPING,6X14 92172 92172-1428 4
WASHER,6.5X16X1.0 92200 92200-3712 4
NUT,6MM 92210 92210-3768 18
BOLT-SOCKET,6X25 120 120R0625 6
BOLT-WP,6X18 156 156R0618 14
BOLT-WP,6X20 156A 156R0620 4
NUT-HEX,6MM 311 311R0600 6
WASHER-PLAIN-SMALL,6MM 410 410S0600 14
WASHER-PLAIN,6MM 411 411S0600 2
