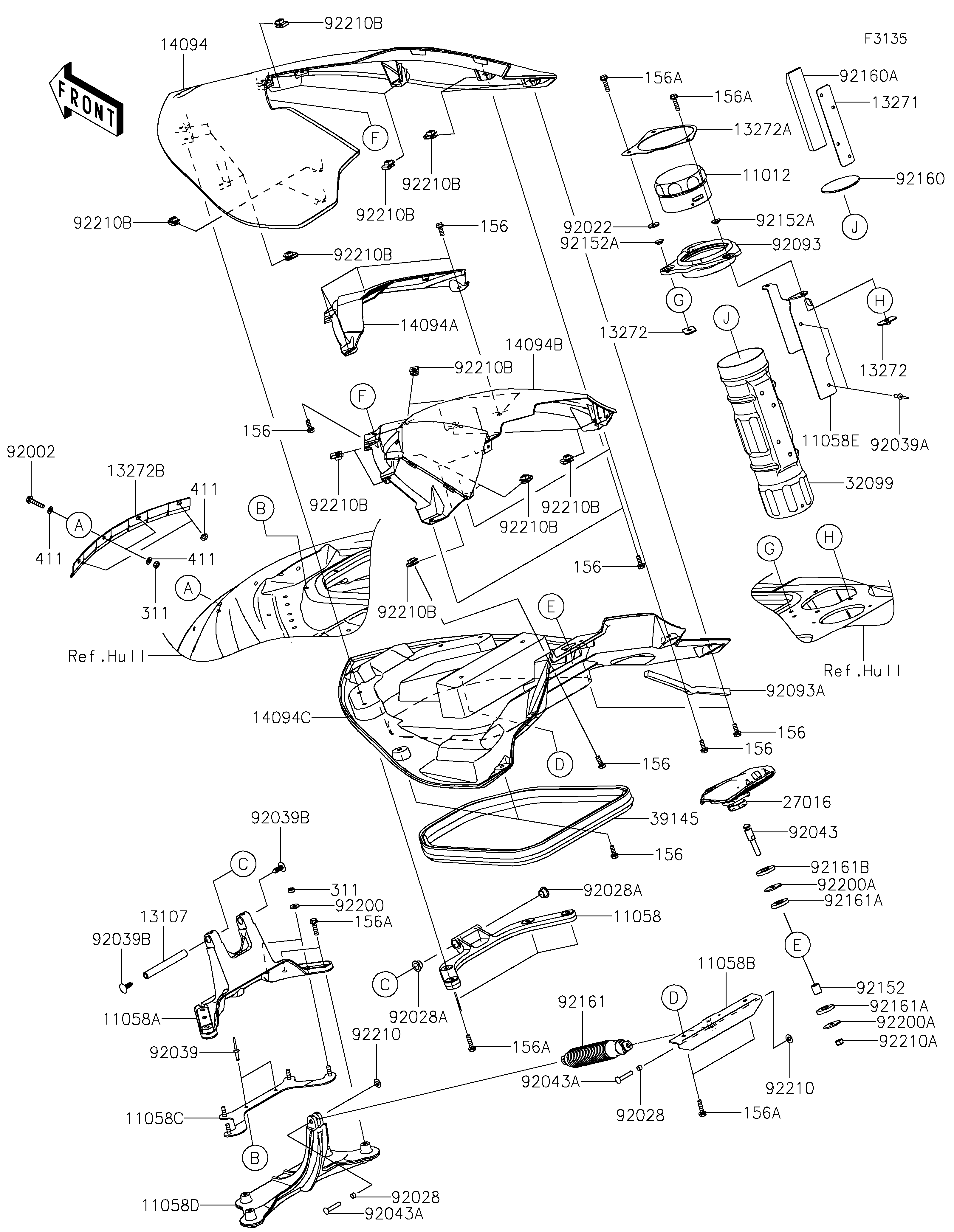

2026 JET SKI® STX® 160LX - Hull Front Fittings

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11058
11058
11058A
11058A
11058B
11058B
11058C
11058C
11058D
11058D
11058E
11058E
13107
13107
13271
13271
13272
13272
13272
13272
13272A
13272A
13272B
13272B
14094
14094
14094A
14094A
14094B
14094B
14094C
14094C
27016
27016
32099
32099
39145
39145
92002
92002
92022
92022
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92039
92039
92039A
92039A
92039B
92039B
92039B
92039B
92043
92043
92043A
92043A
92043A
92043A
92093
92093
92093A
92093A
92152
92152
92152A
92152A
92152A
92152A
92160
92160
92160A
92160A
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92200
92200
92200A
92200A
92200A
92200A
92210
92210
92210
92210
92210A
92210A
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
156
156
156
156
156
156
156
156
156
156
156
156
156
156
156A
156A
156A
156A
156A
156A
156A
156A
156A
156A
311
311
311
311
411
411
411
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FIRE EXTINGUISHER 11012 11012-3766 1
BRACKET,HINGE,UPP 11058 11058-1505 1
BRACKET,HINGE,LWR 11058A 11058-1506 1
BRACKET 11058B 11058-1507 1
BRACKET,DECK 11058C 11058-1696 1
BRACKET 11058D 11058-1697 1
BRACKET,FIRE EXTINGUISHER 11058E 11058-4241 1
SHAFT,FRONT HINGE 13107 13107-3802 1
PLATE,FIRE EXTINGUISHER 13271 13271-3775 1
PLATE 13272 13272-3861 3
PLATE 13272A 13272-7397 1
PLATE,FR BUMPER,IN 13272B 13272-7573 1
COVER,FR HATCH,M.P.SILVER 14094 14094-0081-IS 1
COVER,HATCH TRIM 14094A 14094-0082 1
COVER,HATCH UPPER 14094B 14094-0083 1
COVER,HATCH INNER 14094C 14094-0084 1
LOCK-ASSY,HATCH 27016 27016-0101 1
CASE,FIRE EXTINGUISHER 32099 32099-3769 1
TRIM-SEAL,FR,HATCH 39145 39145-0718 1
BOLT,6X30 92002 92002-3726 2
WASHER,6.2X20X2 92022 92022-3714 1
BUSHING 92028 92028-3765 2
BUSHING 92028A 92028-3770 2
RIVET 92039 92039-3733 2
RIVET 92039A 92039-3783 2
RIVET 92039B 92039-3788 2
PIN 92043 92043-0754 1
PIN,6X33 92043A 92043-3748 2
SEAL 92093 92093-0852 1
SEAL,10X10X190 92093A 92093-0871 1
COLLAR,8.2X14X16.2 92152 92152-0979 1
COLLAR 92152A 92152-3794 3
DAMPER 92160 92160-3814 1
DAMPER 92160A 92160-3821 1
DAMPER,HATCH 92161 92161-1581 1
DAMPER 92161A 92161-3739 2
DAMPER 92161B 92161-3747 1
WASHER,6.5X16X1.0 92200 92200-3712 4
WASHER,8.5X32X2 92200A 92200-3786 2
NUT,SPEED,6MM 92210 92210-3739 2
NUT,LOCK,8MM 92210A 92210-3742 1
NUT,6MM 92210B 92210-3768 20
BOLT-WP,6X18 156 156R0618 14
BOLT-WP,6X25 156A 156R0625 13
NUT-HEX,6MM 311 311R0600 6
WASHER-PLAIN,6MM 411 411S0600 6
