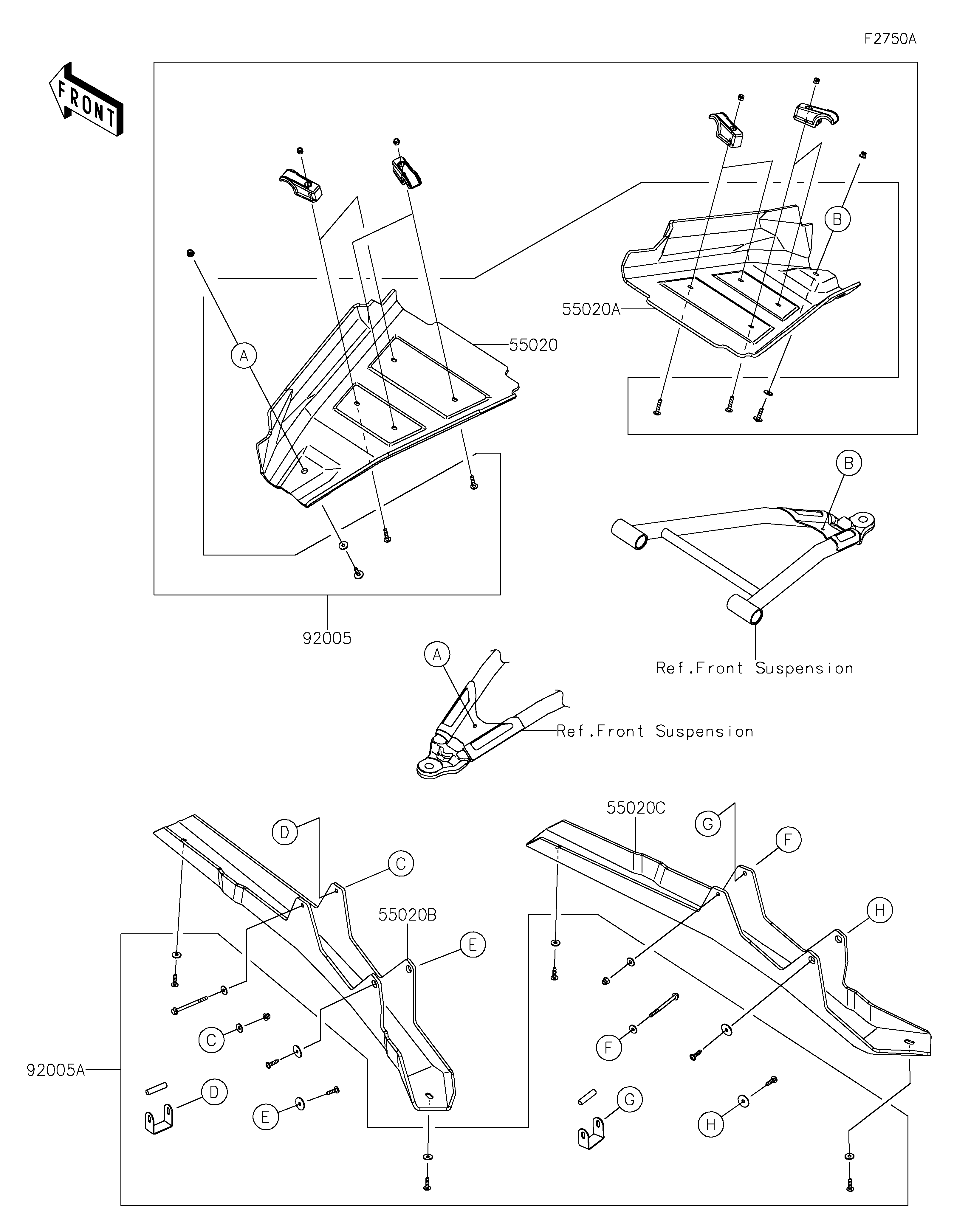

2026 TERYX KRX® 1000 ROCK EDITION - Other(Arm Guard)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUARD,A-ARM,LH,B.ORANGE | 55020 | 55020-2625-75Z | 1 | ||
| GUARD,A-ARM,RH,B.ORANGE | 55020A | 55020-2626-75Z | 1 | ||
| GUARD,TRAILING ARM,LH,B.ORANGE | 55020B | 55020-2627-75Z | 1 | ||
| GUARD,TRAILING ARM,RH,B.ORANGE | 55020C | 55020-2628-75Z | 1 | ||
| FITTING,A-ARM GUARD | 92005 | 92005-0994 | 1 | ||
| FITTING,A-ARM GUARD | 92005A | 92005-0995 | 1 |
| GUARD,A-ARM,LH,B.ORANGE | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,A-ARM,RH,B.ORANGE | |
| REF # | 55020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,TRAILING ARM,LH,B.ORANGE | |
| REF # | 55020B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,TRAILING ARM,RH,B.ORANGE | |
| REF # | 55020C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,A-ARM GUARD | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,A-ARM GUARD | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
