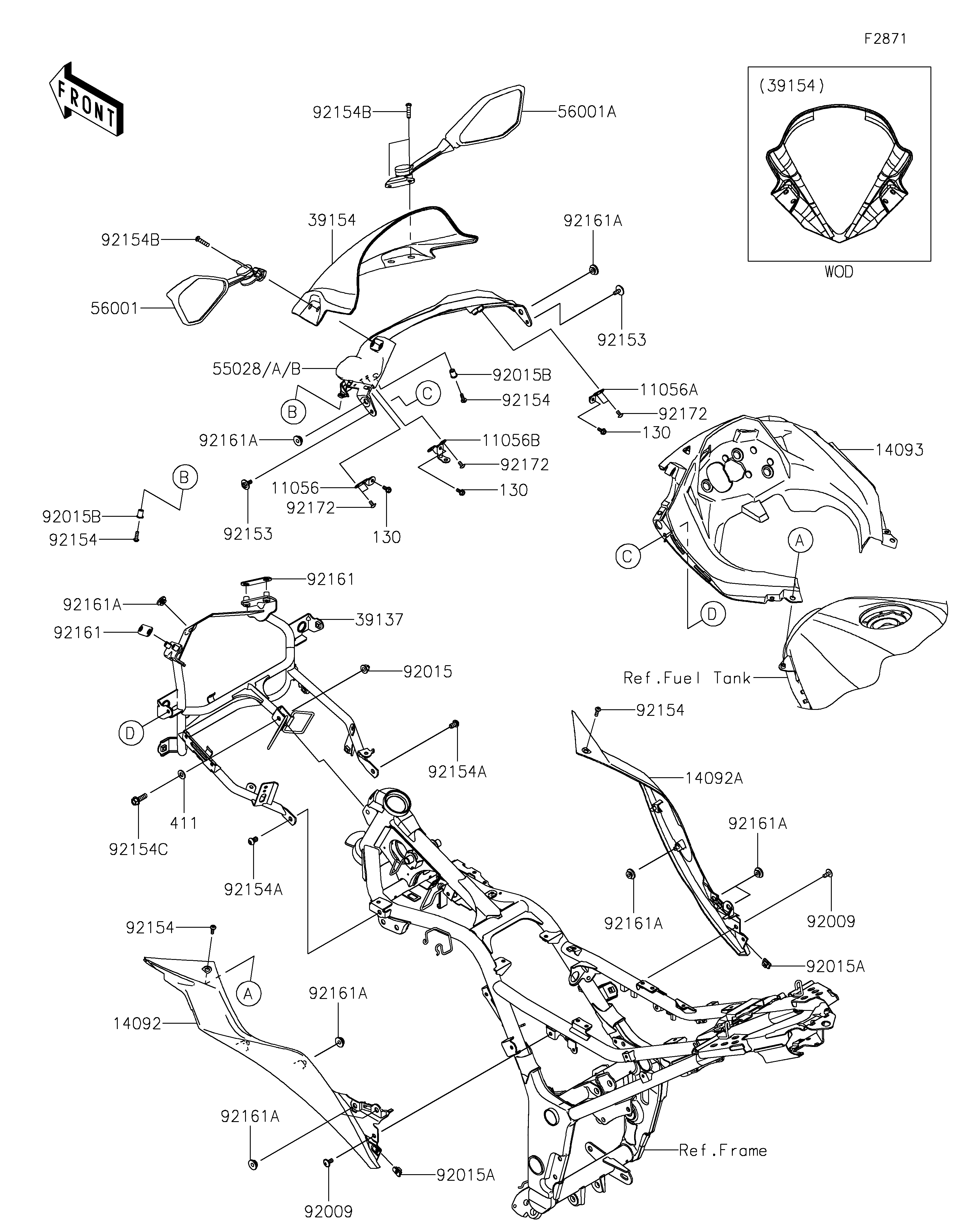

2026 Ninja 300 ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
14092
14092A
14093
39137
39154
55028
55028A
55028B
56001
56001A
92009
92009
92015
92015A
92015A
92015B
92015B
92153
92153
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154C
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92172
92172
92172
130
130
130
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,COWL. STAY,LH 11056 11056-1608 1
BRACKET,COWL. STAY,RH 11056A 11056-1610 1
BRACKET,COWL. STAY 11056B 11056-1611 1
COVER,TANK,LH 14092 14092-0922 1
COVER,TANK,RH 14092A 14092-0923 1
COVER,METER 14093 14093-0249 1
STAY-COMP,COWLING 39137 39137-0684 1
WINDSHIELD 39154 39154-0321 1
COWLING,UPP,C.L.GREEN 55028 55028-0666-51P 1 CN
COWLING,UPP,P.B.WHITE 55028A 55028-0666-54X 1
COWLING,UPP,L.GREEN 55028B 55028-0666-777 1
MIRROR-ASSY,LH 56001 56001-0386 1
MIRROR-ASSY,RH 56001A 56001-0387 1
SCREW,6X14 92009 92009-1662 2
NUT,CAP,8MM,BLACK 92015 92015-1174 1
NUT,5MM 92015A 92015-1627 2
NUT,WELL,5MM 92015B 92015-1757 2
BOLT,6X16 92153 92153-1423 2
BOLT,SOCKET,5X16 92154 92154-0182 4
BOLT,SOCKET,8X14 92154A 92154-1032 2
BOLT,SOCKET,6X25 92154B 92154-1142 4
BOLT,FLANGED,8X25 92154C 92154-4012 1
DAMPER 92161 92161-1467 2
DAMPER 92161A 92161-1531 9
SCREW,TAPPING,5X10 92172 92172-0262 6
BOLT-FLANGED,5X12 130 130BA0512 3
WASHER-PLAIN,8.5X18X1.6 411 411AB0800 1
