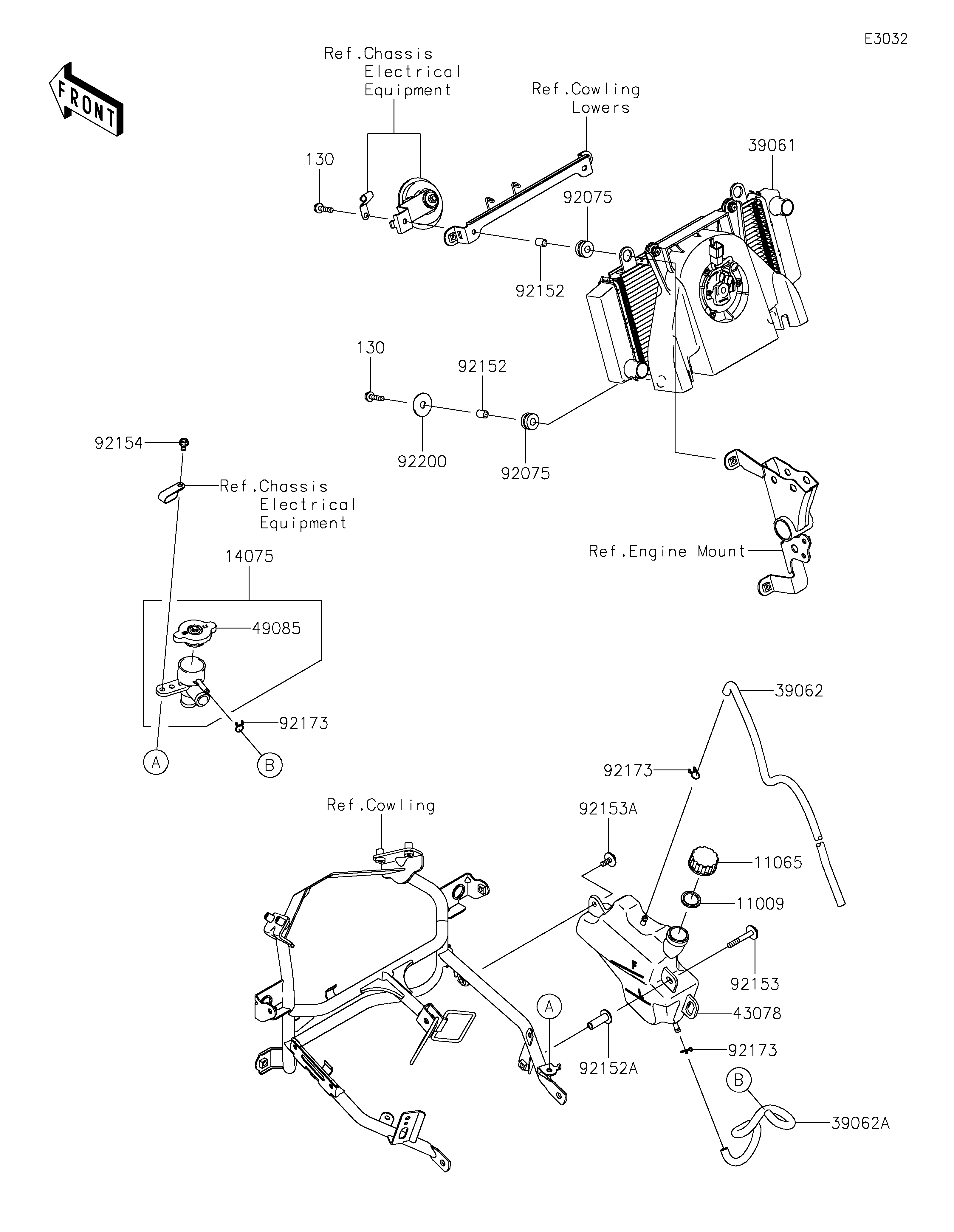

Parts Diagrams |
11009
11065
14075
39061
39062
39062A
43078
49085
92075
92075
92152
92152
92152A
92153
92153A
92154
92173
92173
92173
92200
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11065 | 11065-0969 | 1 | ||
| CAP-ASSY,RADIATOR | 14075 | 14075-1061 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0853 | 1 | ||
| HOSE-COOLING,OVERFLOW | 39062 | 39062-0907 | 1 | ||
| HOSE-COOLING,RESERVOIR | 39062A | 39062-0908 | 1 | ||
| RESERVOIR | 43078 | 43078-0558 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| DAMPER,10X24X12 | 92075 | 92075-1690 | 4 | ||
| COLLAR,6.8X10X13 | 92152 | 92152-0846 | 4 | ||
| COLLAR,L=29 | 92152A | 92152-1591 | 1 | ||
| BOLT,6X45 | 92153 | 92153-0003 | 1 | ||
| BOLT,FLANGED-SMALL,6X16 | 92153A | 92153-1798 | 1 | ||
| BOLT,UPSET-WP,6X16 | 92154 | 92154-0961 | 1 | ||
| CLAMP | 92173 | 92173-0050 | 3 | ||
| WASHER,6.5X24X1.6 | 92200 | 92200-0789 | 2 | ||
| BOLT-FLANGED,6X25 | 130 | 130BA0625 | 4 |
| GASKET,RESERVOIR TANK CAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY,RADIATOR | |
| REF # | 14075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,OVERFLOW | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RESERVOIR | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X24X12 | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X13 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=29 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X45 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED-SMALL,6X16 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,UPSET-WP,6X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X24X1.6 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
