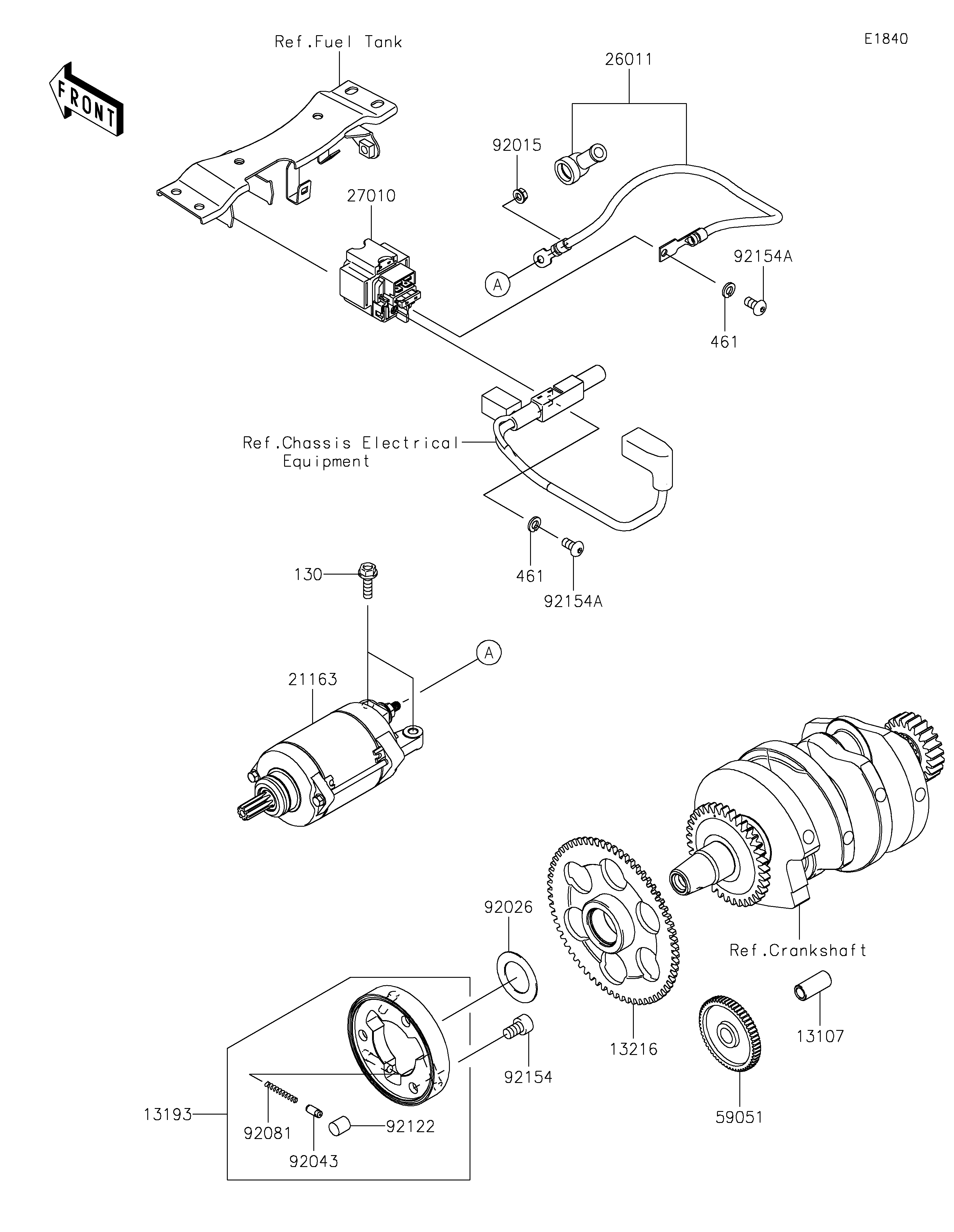

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13107
13193
13216
21163
26011
27010
59051
92015
92026
92043
92081
92122
92154
92154A
92154A
130
461
461
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,7.8X12X26.5 | 13107 | 13107-0743 | 1 | ||
| CLUTCH-ASSY-ONEWAY | 13193 | 13193-1002 | 1 | ||
| GEAR-COMP,ONEWAY CLUTCH,65T | 13216 | 13216-0880 | 1 | ||
| STARTER-ELECTRIC | 21163 | 21163-0769 | 1 | ||
| WIRE-LEAD,STARTER | 26011 | 26011-1944 | 1 | ||
| SWITCH,MAGNETIC | 27010 | 27010-0956 | 1 | ||
| GEAR-SPUR,IDLER | 59051 | 59051-0722 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
| SPACER,25.2X40X1.0 | 92026 | 92026-0846 | 1 | ||
| PIN | 92043 | 92043-132 | 3 | ||
| SPRING,COIL | 92081 | 92081-159 | 3 | ||
| ROLLER | 92122 | 92122-006 | 3 | ||
| BOLT,SOCKET,8X13 | 92154 | 92154-0175 | 3 | ||
| BOLT,SOCKET,5X10 | 92154A | 92154-2801 | 2 | ||
| BOLT-FLANGED,6X20 | 130 | 130BA0620 | 2 | ||
| WASHER-SPRING,5MM | 461 | 461DA0500 | 2 |
