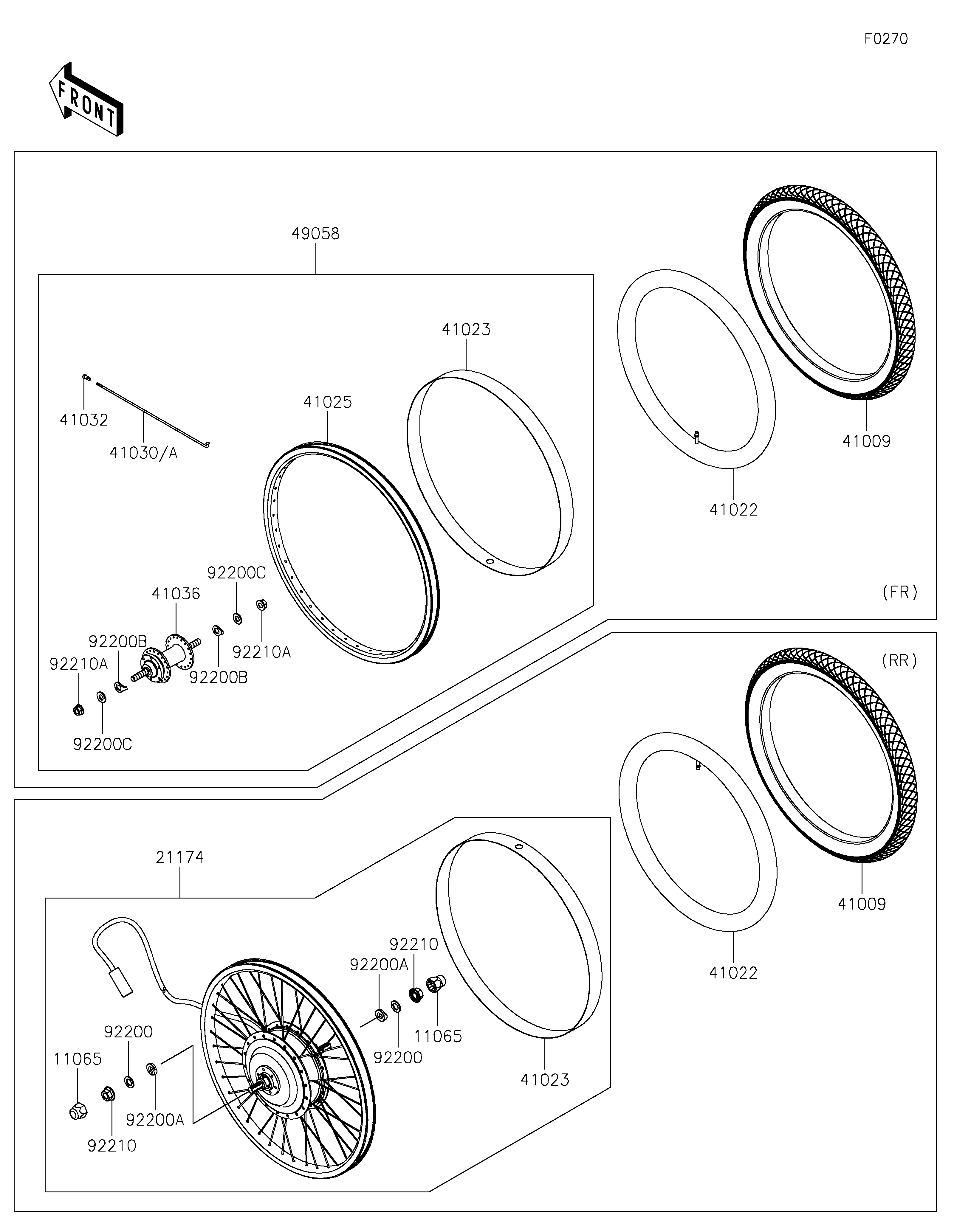

2025 ELEKTRODE® 20FS - Wheel

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11065
11065
21174
41009
41009
41022
41022
41023
41023
41025
41030
41030A
41032
41036
49058
92200
92200
92200A
92200A
92200B
92200B
92200C
92200C
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11058 11058-4345 1
BRACKET,RH 11058A 11058-4346 1
CAP 11065 11065-1443 2
MOTOR-ELECTRIC 21174 21174-0039 1
TIRE,20X1.95,BMX-44(IRC) 41009 41009-0971 2
TUBE-TIRE,20X1.85-2.125 41022 41022-0157 2
BAND-RIM,FR,20INCH 41023 41023-0062 2
RIM,FR,20X1.95-2.3,BLACK 41025 41025-0462 1
SPOKE-OUTER,FR,183MMX93.3D 41030 41030-0040 18
SPOKE-OUTER,FR,185MMX93.3D 41030A 41030-0041 18
NIPPLE-SPOKE 41032 41032-0039 36
HUB-ASSY,FR 41036 41036-0994 1
WHEEL,FR,20INCH 49058 49058-0799 1
WASHER,INNER,WITH TAB 92200 92200-2582 2
WASHER,SAFETY HOOK 92200A 92200-2730 2
WASHER,10.5X20X2 92200B 92200-2731 2
WASHER,13.25X26X2 92200C 92200-2840 2
NUT,LOCK,12MM 92210 92210-0274 2
NUT,FLANGED,10MM 92210A 92210-2239 2
