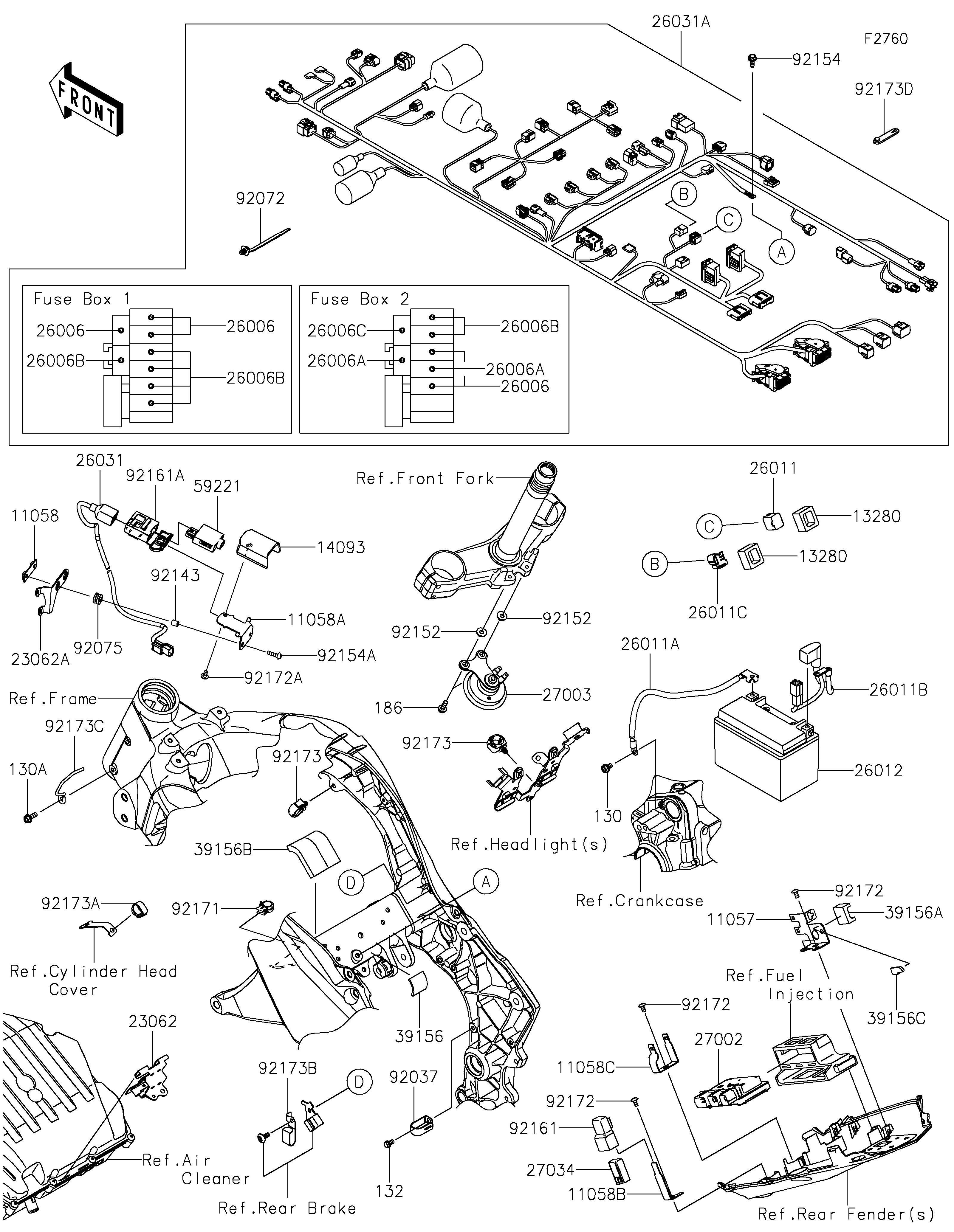

2026 Z1100 SE ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11058
11058
11058A
11058A
11058B
11058B
11058C
11058C
13280
13280
13280
13280
14093
14093
23062
23062
23062A
23062A
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006C
26006C
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
26031A
26031A
27002
27002
27003
27003
27034
27034
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
59221
59221
92037
92037
92072
92072
92075
92075
92143
92143
92152
92152
92152
92152
92154
92154
92154A
92154A
92161
92161
92161A
92161A
92171
92171
92172
92172
92172
92172
92172
92172
92172A
92172A
92173
92173
92173
92173
92173A
92173A
92173B
92173B
92173C
92173C
92173D
92173D
130
130
130A
130A
132
132
186
186
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REAR PARTS COUPLERS 11057 11057-1334 1
BRACKET,USB,RR 11058 11058-1409 1
BRACKET,USB,FR 11058A 11058-2312 1
BRACKET,RELAY 11058B 11058-3888 1
BRACKET,FUSE BOX 11058C 11058-3944 1
HOLDER,DIAG CONNECTOR 13280 13280-0959 2
COVER,USB 14093 14093-1458 1
BRACKET-COMP,AIR BOX 23062 23062-1637 1
BRACKET-COMP 23062A 23062-1654 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 5
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,10A,RED 26006B 26006-1078 7
FUSE,MINI BLADE,30A,GREEN 26006C 26006-1080 1
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0822 1
WIRE-LEAD,BATTERY(+) 26011B 26011-0839 1
WIRE-LEAD,DIAG CONNECTOR 26011C 26011-1901 1
BATTERY,YT12A-BS,12V 26012 26012-1529 1
HARNESS,USB CHARGER 26031 26031-4061 1
HARNESS,MAIN 26031A 26031-7234 1
RELAY-ASSY 27002 27002-0061 1
HORN 27003 27003-0096 1
RELAY 27034 27034-0012 1
PAD,30X30X3 39156 39156-1766 1
PAD 39156A 39156-1804 1
PAD,60X60X10 39156B 39156-2216 1
PAD,13X27X4 39156C 39156-2234 1
CONNECTOR-CORD,USB TYPE-C 59221 59221-0022 1
CLAMP,CABLE,STEEL SHEET 92037 92037-2014 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
DAMPER 92075 92075-1912 2
COLLAR,5.6X8X9.3 92143 92143-1984 2
COLLAR,6.3X8.3X16 92152 92152-0286 2
BOLT,FLANGED,6X16 92154 92154-0551 1
BOLT,SOCKET,5X18 92154A 92154-2107 2
DAMPER 92161 92161-2290 1
DAMPER 92161A 92161-2497 1
CLAMP,EDGE CLIP 92171 92171-1722 1
SCREW,TAPPING,5X10 92172 92172-0262 4
SCREW,5X10 92172A 92172-1194 1
CLAMP 92173 92173-0861 2
CLAMP,HOLDER CLIP 92173A 92173-0868 1
CLAMP,84MM 92173B 92173-1008 1
CLAMP,IRON WIRE 92173C 92173-1199 1
CLAMP 92173D 92173-2198 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X16 130A 130BB0616 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
BOLT-UPSET-WP,6X18 186 186BB0618 2
