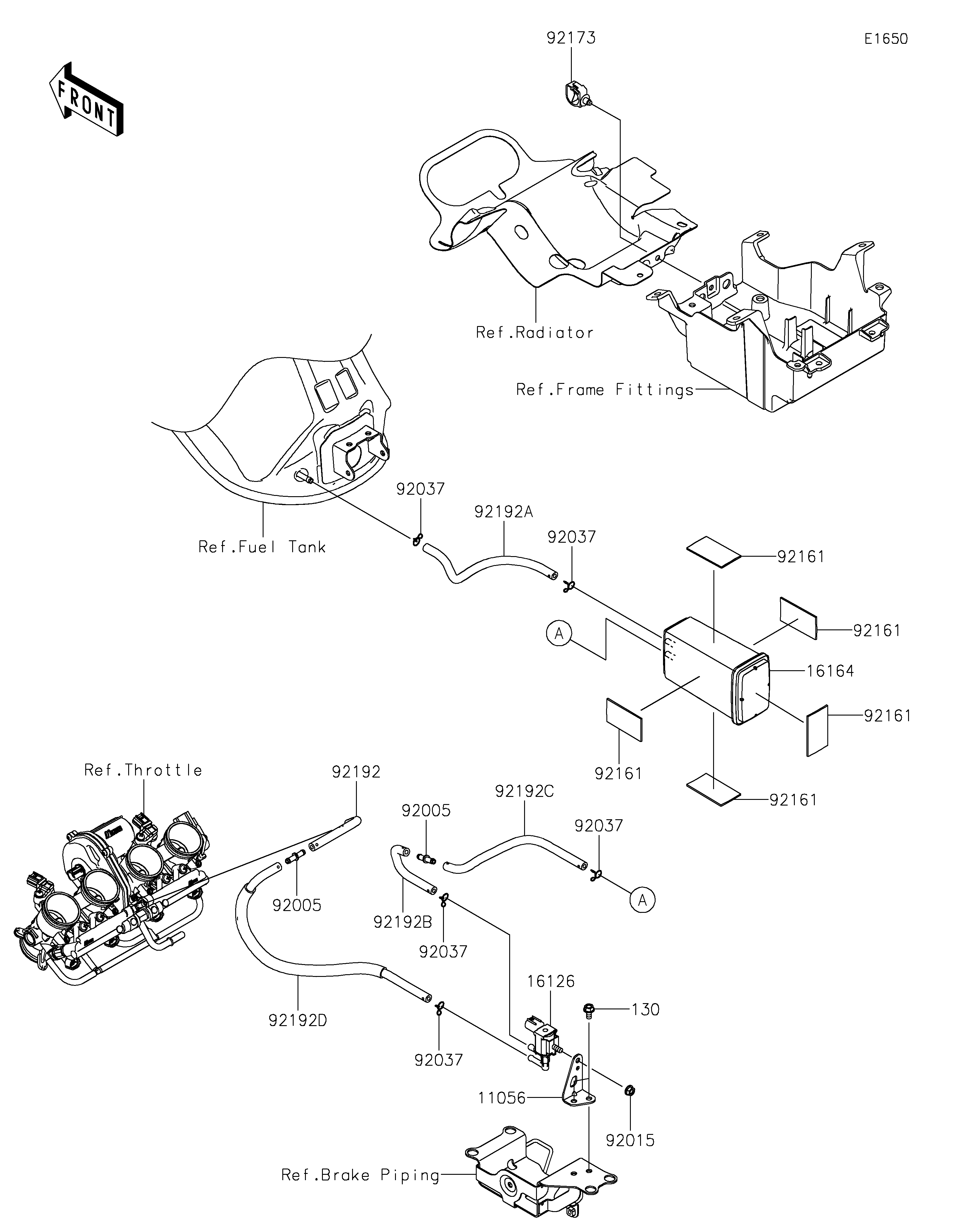

2026 Z1100 SE ABS - Fuel Evaporative System
11056
16126
16164
92005
92005
92015
92037
92037
92037
92037
92037
92161
92161
92161
92161
92161
92173
92192
92192A
92192B
92192C
92192D
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,VALVE | 11056 | 11056-2480 | 1 | ||
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | ||
| CANISTER | 16164 | 16164-0012 | 1 | ||
| FITTING | 92005 | 92005-0721 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
| CLAMP | 92037 | 92037-1712 | 5 | ||
| DAMPER | 92161 | 92161-1883 | 5 | ||
| CLAMP | 92173 | 92173-0861 | 1 | ||
| TUBE,FITTING(VALVE)-THROTTLE | 92192 | 92192-2890 | 1 | ||
| TUBE,CANISTER-TANK | 92192A | 92192-2891 | 1 | ||
| TUBE,VALVE-FITTING(CANISTER) | 92192B | 92192-2892 | 1 | ||
| TUBE,FITTING(VALVE)-CANISTER | 92192C | 92192-2893 | 1 | ||
| TUBE,VALVE-FITTING(THROTTLE) | 92192D | 92192-2894 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 2 |
| BRACKET,VALVE | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE,SOLENOID | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FITTING(VALVE)-THROTTLE | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CANISTER-TANK | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,VALVE-FITTING(CANISTER) | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FITTING(VALVE)-CANISTER | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,VALVE-FITTING(THROTTLE) | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
