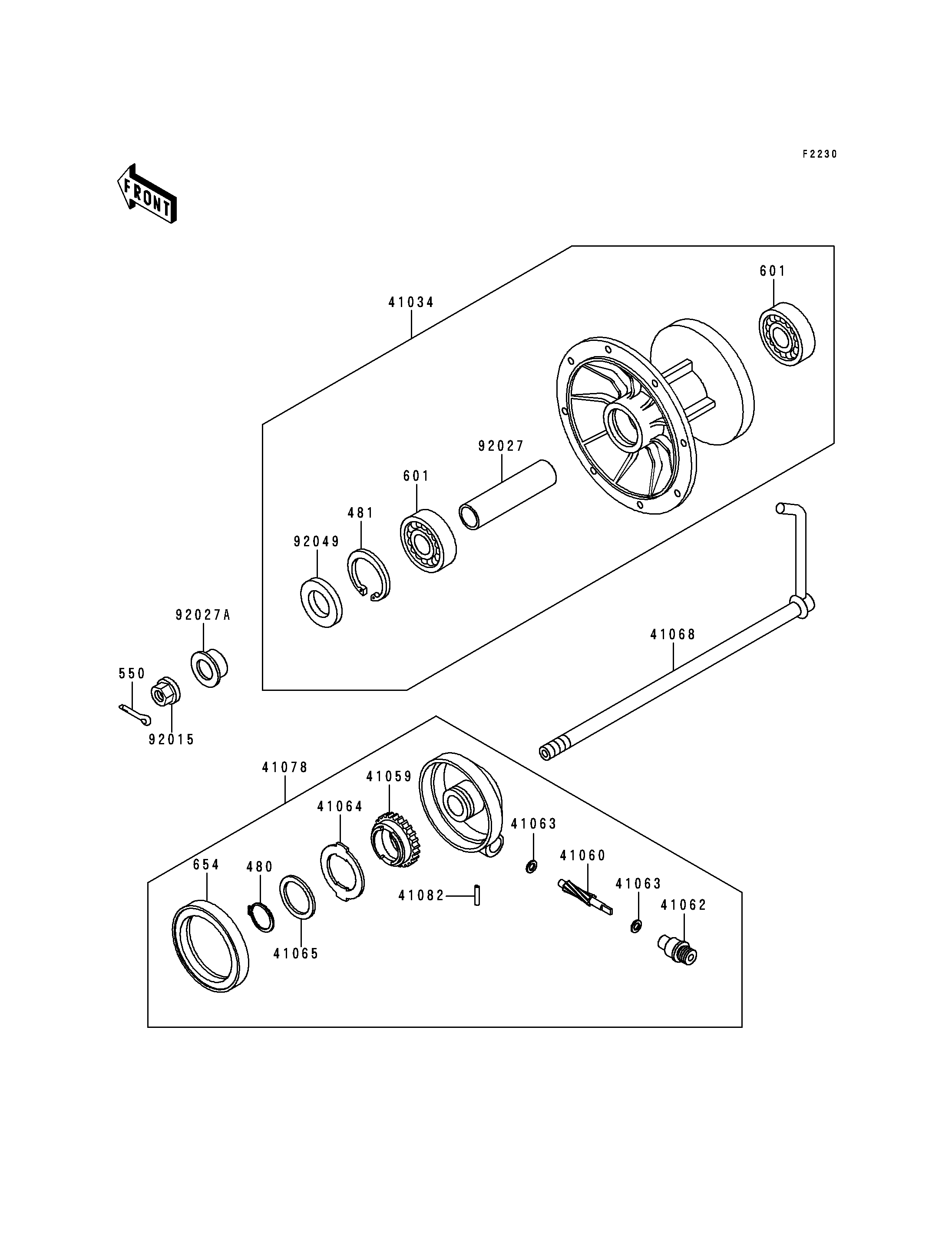

1992 KDX200 - Front Hub(KDX200-E4)

DOWNLOAD PDF
SELECT A NEW PART
480
481
550
601
601
654
41034
41059
41060
41062
41063
41063
41064
41065
41068
41078
41082
92015
92027
92027A
92049
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,24MM 480 480J2400 1
CIRCLIP-TYPE-C,35MM 481 481J3500 1
PIN-COTTER,3.0X25 550 550D3025 1
BEARING-BALL,#6202UG 601 601B6202UG 2
OIL SEAL,#50659 654 654A506509 1
DRUM-ASSY,FRONT BRAKE 41034 41034-1156 1
GEAR-METER SCREW 41059 41059-027 1
GEAR-METER SCREW,8T 41060 41060-015 1
BUSHING,SPEEDOMETER CABLE 41062 41062-005 1
WASHER,5.1X9X0.4 41063 41063-001 2
RECEIVER-SPEEDOMETER 41064 41064-015 1
WASHER,24.5X32X0.8 41065 41065-005 1
AXLE,FR 41068 41068-1291 1
CASE-ASSY-METER GEAR 41078 41078-011 1
PIN,SPRING 41082 41082-001 1
NUT,FLANGED,14MM 92015 92015-1401 1
COLLAR,15.2X22.2X75 92027 92027-1958 1
COLLAR,L=12 92027A 92027-1959 1
SEAL-OIL,MH20354.5 92049 92049-1176 1
