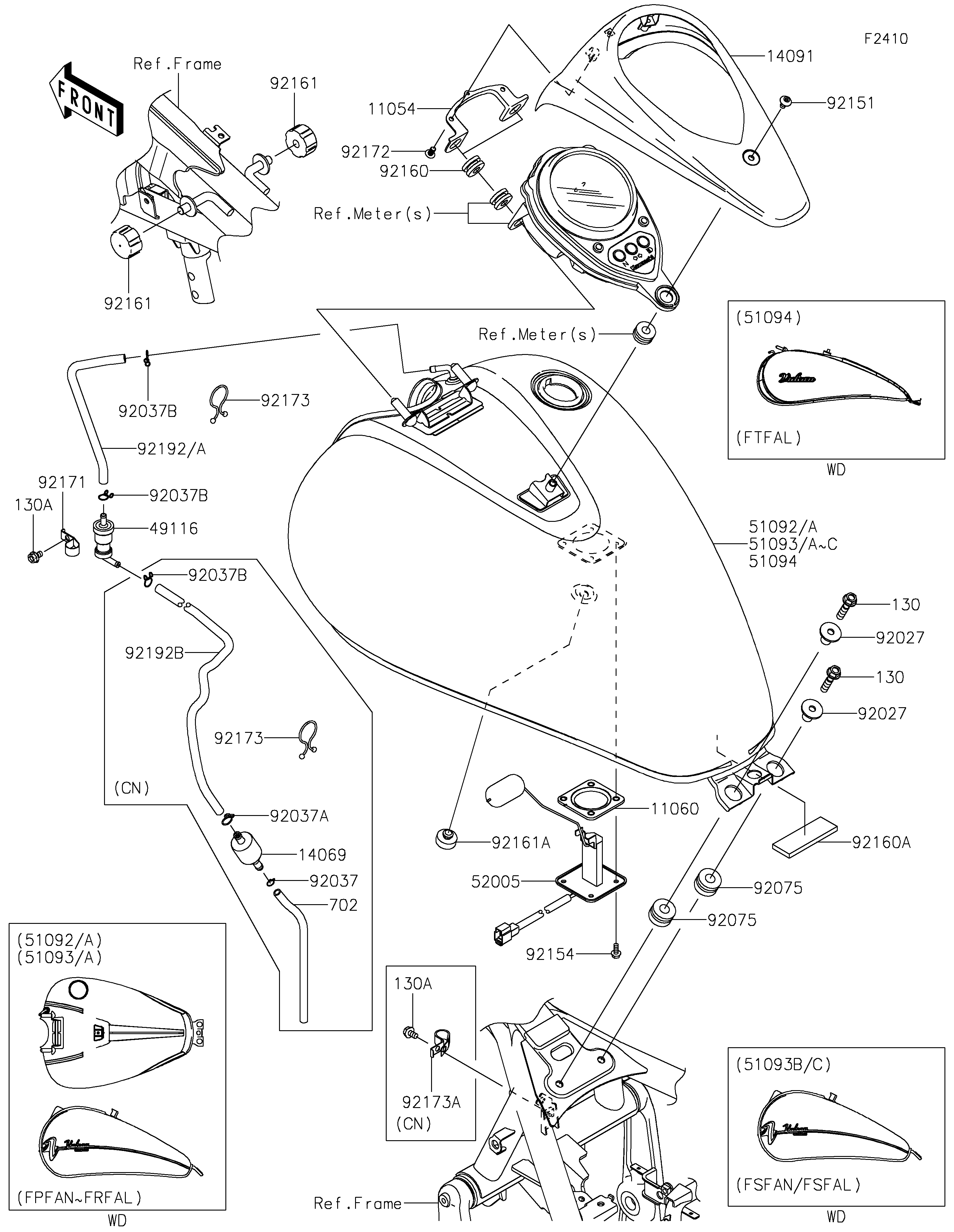

2023 VULCAN® 900 CUSTOM - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11060
11060
14069
14069
14091
14091
49116
49116
51092
51092
51092A
51092A
52005
52005
92027
92027
92027
92027
92037
92037
92037A
92037A
92075
92075
92075
92075
92151
92151
92154
92154
92160
92160
92160A
92160A
92161
92161
92161
92161
92161A
92161A
92171
92171
92172
92172
92173A
92173A
92192
92192
92192B
92192B
130
130
130
130
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER,FR 11054 11054-0034 1
GASKET,FUEL GAUGE 11060 11060-1952 1
BREATHER,FUEL TANK 14069 14069-1004 1 CN
COVER,METER,EBONY 14091 14091-1730-H8 1
VALVE-ASSY,CHECK 49116 49116-0014 1
TANK-COMP-FUEL,F.EBONY+GRN 51092 51092-5414-69G 1 CN
TANK-COMP-FUEL,F.EBONY+GRN 51092A 51092-5415-69G 1 CA
GAUGE,FUEL 52005 52005-0718 1
COLLAR,L=19.3 92027 92027-1780 2
CLAMP,TUBE 92037 92037-010 1 CN
CLAMP,HOSE 92037A 92037-1104 1 CN
DAMPER 92075 92075-1736 2
BOLT,SOCKET,6X12 92151 92151-1940 1
BOLT,FLANGED,5X12 92154 92154-1856 4
DAMPER 92160 92160-1162 2
DAMPER 92160A 92160-1323 1
DAMPER,FUEL TANK 92161 92161-0293 2
DAMPER 92161A 92161-1065 1
CLAMP 92171 92171-0595 1
SCREW,TAPPING,5X14 92172 92172-0006 2
CLAMP 92173A 92173-0925 1 CN
TUBE,BREATHER,L=220 92192 92192-1107 1 CN
TUBE,5X10X500/350 92192B 92192-1129 1 CN
BOLT-FLANGED,8X30 130 130BA0830 2
TUBE-RUBBER,6X200 702 702A06200 1 CN
