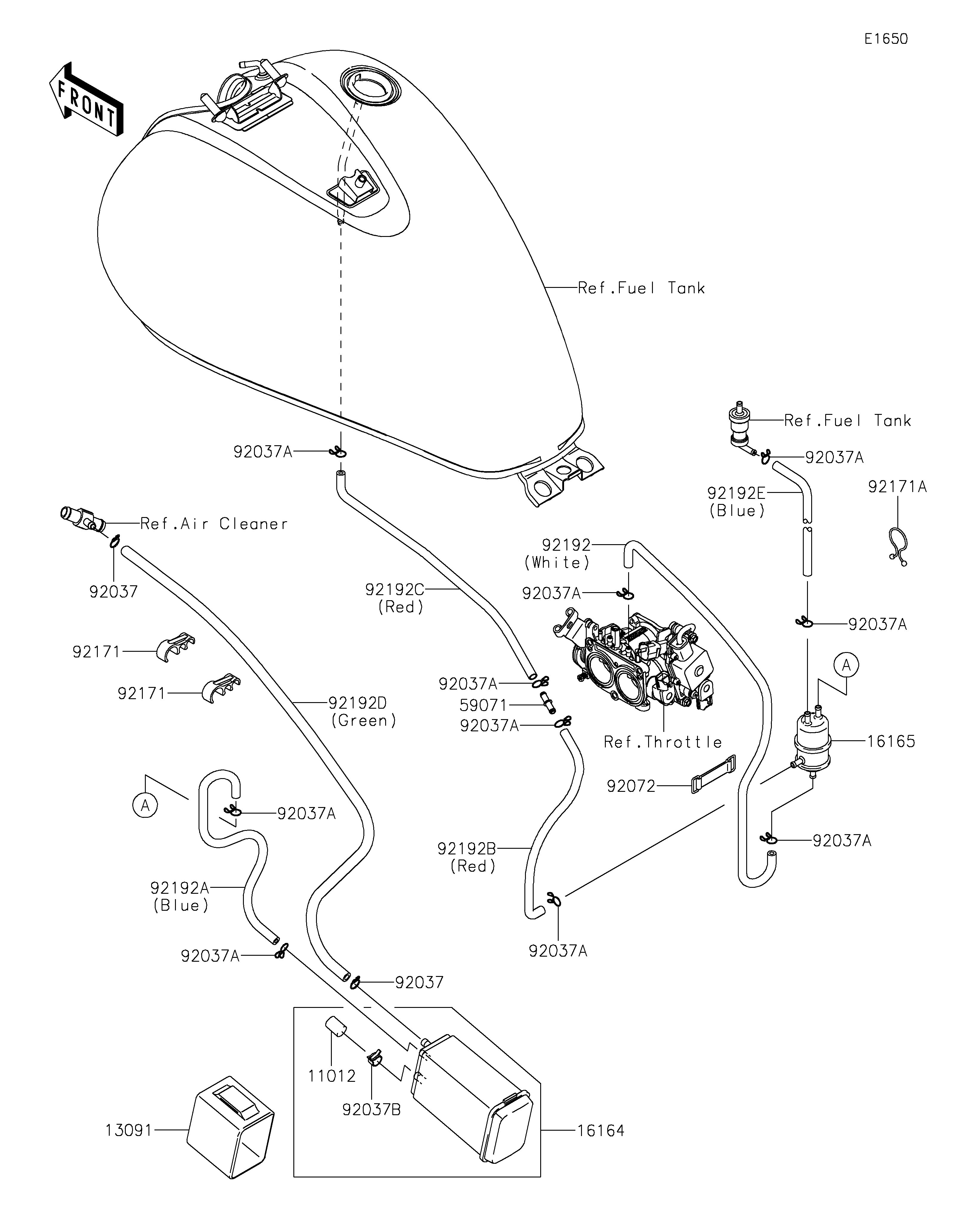

2026 VULCAN® 900 CUSTOM - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
11012
13091
16164
16165
59071
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92072
92171
92171
92171A
92192
92192A
92192B
92192C
92192D
92192E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CANISTER 11012 11012-1388 1 _________________________________________CA
HOLDER,CANISTER 13091 13091-1308 1 _________________________________________CA
CANISTER 16164 16164-0017 1 _________________________________________CA
SEPARATOR 16165 16165-1001 1 _________________________________________CA
JOINT 59071 59071-3717 1 _________________________________________CA
CLAMP,HOSE 92037 92037-1104 2 _________________________________________CA
CLAMP,TUBE 92037A 92037-147 10 _________________________________________CA 1
CLAMP,CANISTER 92037B 92037-1512 1 _________________________________________CA
BAND,L=50 92072 92072-1419 1 _________________________________________CA
CLAMP 92171 92171-0765 2 _________________________________________CA
CLAMP 92171A 92171-1185 1 _________________________________________CA
TUBE,SEPARATOR-THROBO,WHITE 92192 92192-0275 1 _________________________________________CA
TUBE,SEPARATOR-CANISTER,BLUE 92192A 92192-0505 1 _________________________________________CA
TUBE,SEPARATOR-JOINT,RED 92192B 92192-0506 1 _________________________________________CA
TUBE,JOINT-TANK,RED 92192C 92192-0507 1 _________________________________________CA
TUBE,7X12X760,GREEN 92192D 92192-0509 1 _________________________________________CA
TUBE,5X10X705,BLUE 92192E 92192-1063 1 _________________________________________CA
