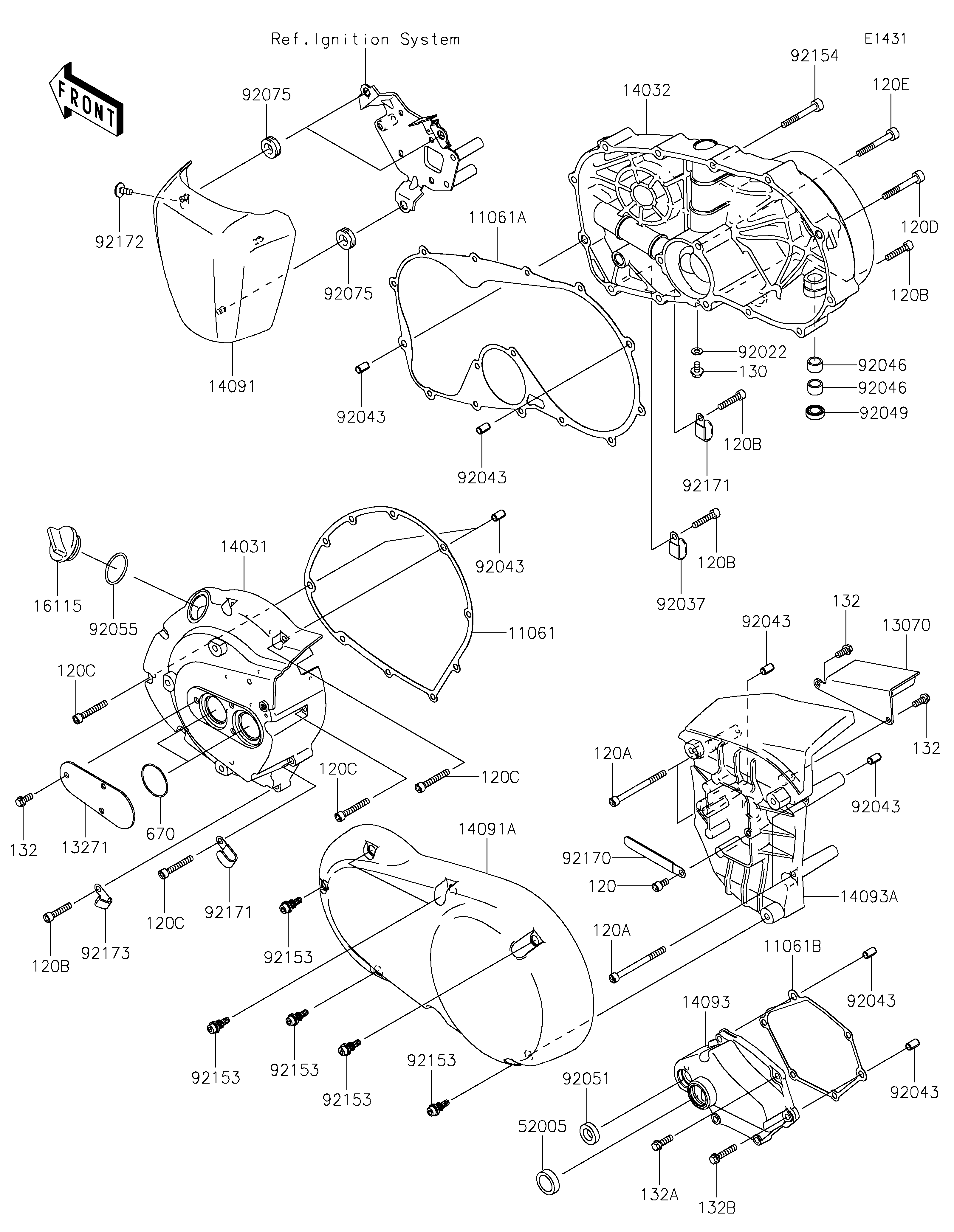

2023 VULCAN® 900 CUSTOM - Engine Cover(s)
11061
11061A
11061B
13070
13271
14031
14032
14091
14091A
14093
14093A
16115
52005
92022
92037
92043
92043
92043
92043
92043
92043
92043
92046
92046
92049
92051
92055
92075
92075
92153
92153
92153
92153
92153
92154
92170
92171
92171
92172
92173
120
120A
120A
120B
120B
120B
120B
120C
120C
120C
120C
120D
120E
130
132
132
132
132A
132B
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,GENERATOR COVER | 11061 | 11061-0209 | 1 | ||
| GASKET,CLUTCH COVER | 11061A | 11061-1517 | 1 | ||
| GASKET,MECHANISM COVER | 11061B | 11061-1519 | 1 | ||
| GUIDE,BELT | 13070 | 13070-0055 | 1 | ||
| PLATE | 13271 | 13271-0700 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-0620 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-0135 | 1 | ||
| COVER,IGNITION COIL,EBONY | 14091 | 14091-0882-H8 | 1 | ||
| COVER,OUTER,LH | 14091A | 14091-1737 | 1 | ||
| COVER,CHANGE MECHANISM | 14093 | 14093-0673 | 1 | ||
| COVER,PULLEY | 14093A | 14093-0674 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
| CLAMP,L=45 | 92037 | 92037-1539 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 8 | ||
| BEARING-NEEDLE,HK1210FM | 92046 | 92046-0034 | 2 | ||
| SEAL-OIL,TB12205.5 | 92049 | 92049-1271 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
| DAMPER | 92075 | 92075-1629 | 3 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-1331 | 6 | ||
| BOLT,SOCKET,6X50 | 92154 | 92154-0270 | 1 | ||
| CLAMP | 92170 | 92170-1925 | 1 | ||
| CLAMP | 92171 | 92171-0739 | 2 | ||
| SCREW,5X12 | 92172 | 92172-0101 | 1 | ||
| CLAMP,HARNESS | 92173 | 92173-1368 | 1 | ||
| BOLT-SOCKET,6X12 | 120 | 120CA0612 | 1 | ||
| BOLT-SOCKET,6X75 | 120A | 120CA0675 | 4 | ||
| BOLT-SOCKET,6X30 | 120B | 120CC0630 | 9 | ||
| BOLT-SOCKET,6X40 | 120C | 120CC0640 | 4 | ||
| BOLT-SOCKET,6X50 | 120D | 120CC0650 | 10 | ||
| BOLT-SOCKET,6X65 | 120E | 120CC0665 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 1 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 5 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132BA0620 | 1 | ||
| BOLT-FLANGED-SMALL,6X30 | 132B | 132BA0630 | 5 | ||
| O RING,34MM | 670 | 670B3034 | 2 |
