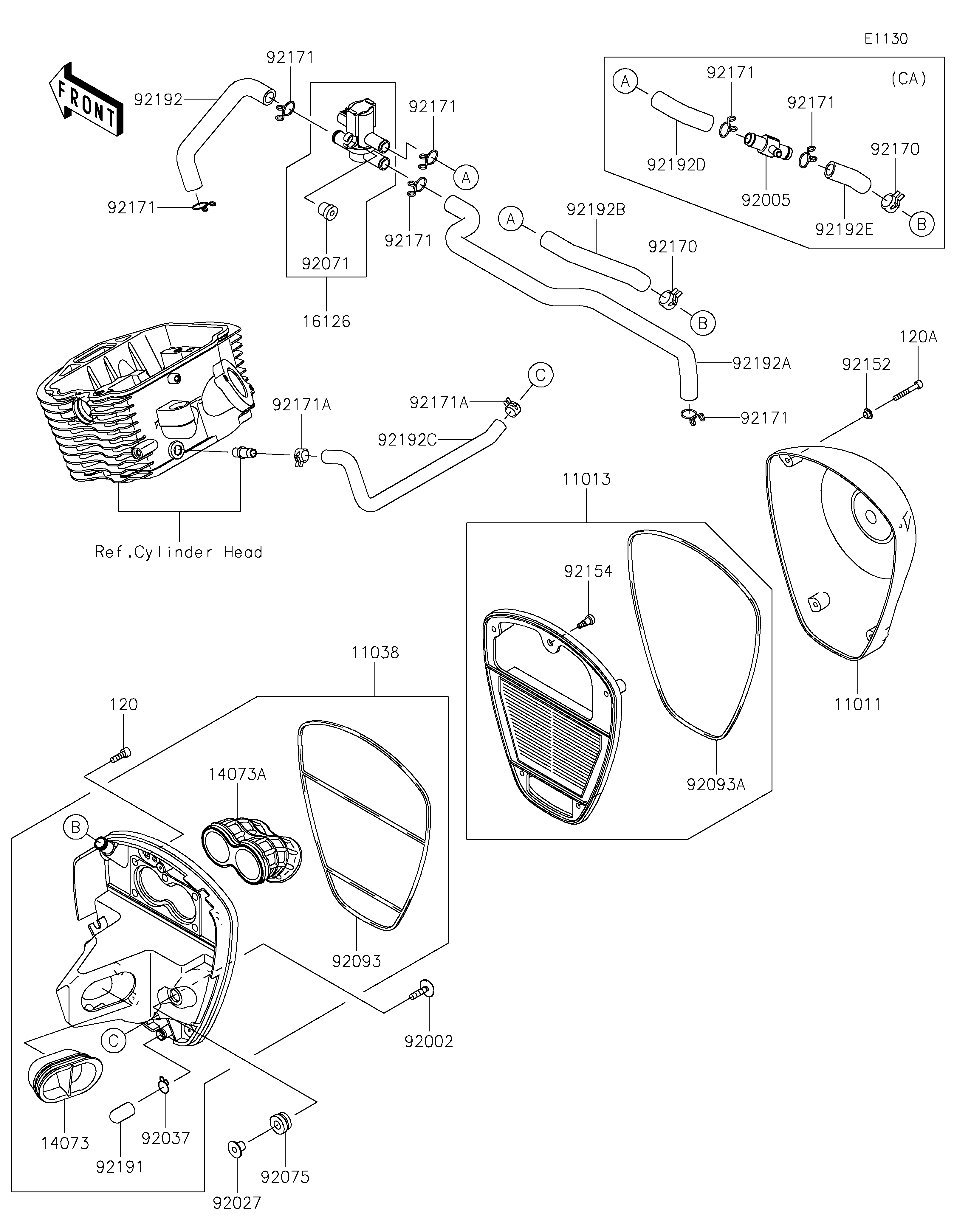

2023 VULCAN® 900 CUSTOM - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11011
11013
11038
14073
14073A
16126
92002
92027
92037
92071
92075
92093
92093A
92152
92154
92170
92170
92171A
92171A
92191
92192
92192A
92192B
92192C
120
120A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-0142 1
ELEMENT-AIR FILTER 11013 11013-0015 1
CASE-ASSY-AIR FILTER 11038 11038-0015 1
DUCT,INTAKE 14073 14073-0103 1
DUCT,THROTTLE BODY 14073A 14073-0104 1
VALVE 16126 16126-0022 1
BOLT,6X25 92002 92002-1135 2
COLLAR,L=12 92027 92027-1062 2
CLAMP,14.5MM 92037 92037-1900 1
GROMMET 92071 92071-0026 1
DAMPER,RUBBER 92075 92075-1123 2
SEAL 92093 92093-0054 1
SEAL 92093A 92093-0057 1
COLLAR 92152 92152-0451 4
BOLT,SOCKET,5X16.5 92154 92154-0120 1
CLAMP 92170 92170-1989 1
CLAMP 92171A 92171-1441 2
TUBE 92191 92191-1704 1
TUBE,ASV-FR HEAD 92192 92192-0266 1
TUBE,ASV-RR HEAD 92192A 92192-0267 1
TUBE,A/C-ASV 92192B 92192-0268 1 CN
TUBE,BLOWBY 92192C 92192-0269 1
BOLT-SOCKET,6X18 120 120CA0618 5
BOLT-SOCKET,5X35 120A 120CC0535 4
