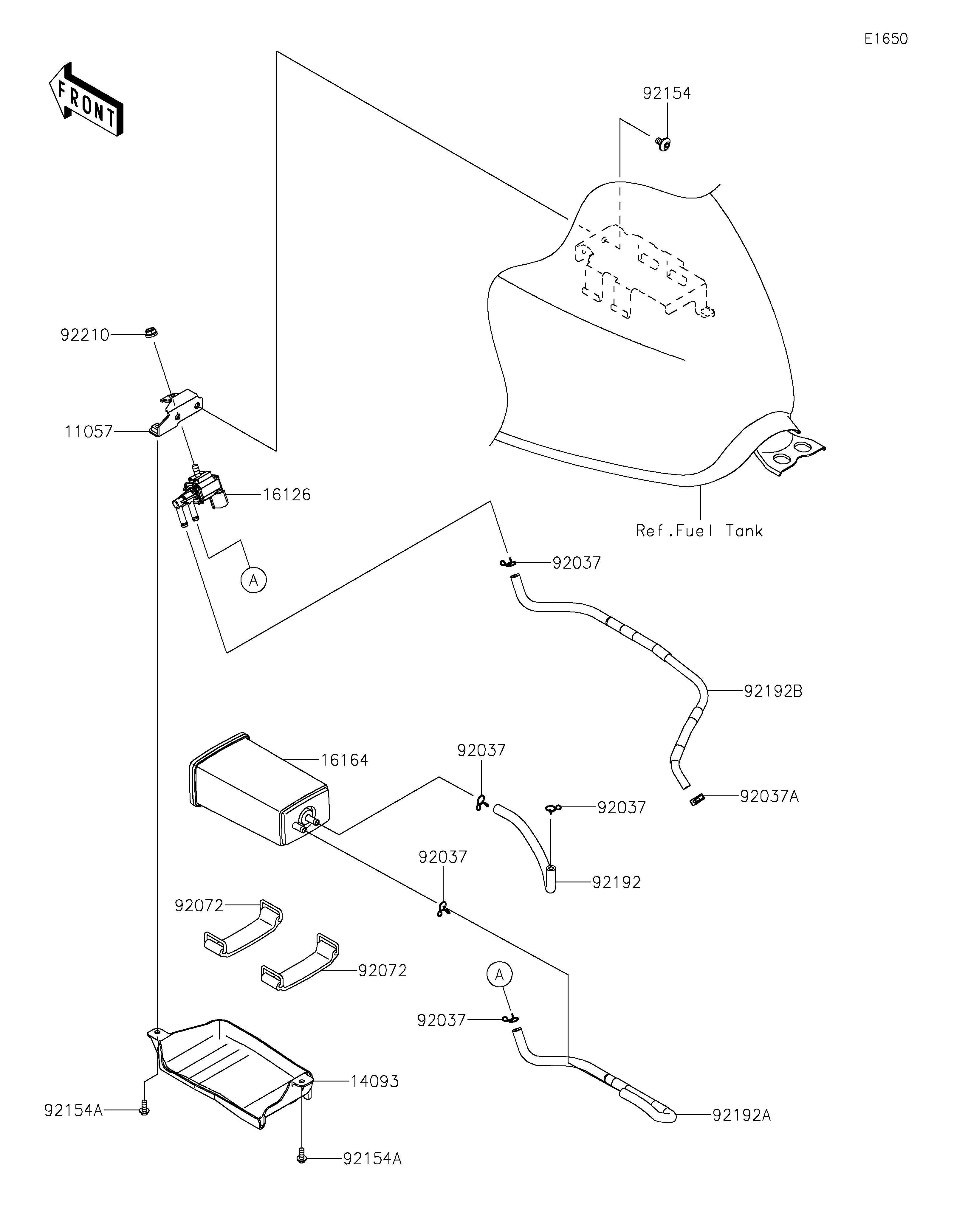

2026 W800 ABS - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
11057
14093
16126
16164
92037
92037
92037
92037
92037
92037A
92072
92072
92154
92154A
92154A
92192
92192A
92192B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CANISTER 11057 11057-2071 1 _________________________________________CA
COVER,CANISTER 14093 14093-0791 1 _________________________________________CA
VALVE,SOLENOID 16126 16126-0705 1 _________________________________________CA
CANISTER 16164 16164-0012 1 _________________________________________CA
CLAMP 92037 92037-1712 5 _________________________________________CA
CLAMP,7.8MM 92037A 92037-2116 1 _________________________________________CA
BAND,L=90 92072 92072-045 2 _________________________________________CA
BOLT,SOCKET,6X10 92154 92154-1834 2 _________________________________________CA
BOLT,SOCKET,5X12,MEC 92154A 92154-2678 2 _________________________________________CA
TUBE,TANK-CANISTER 92192 92192-1932 1 _________________________________________CA
TUBE,CANISTER-VALVE 92192A 92192-1933 1 _________________________________________CA
TUBE,VALVE-THROTTLE 92192B 92192-1934 1 _________________________________________CA
NUT,LOCK,FLANGED,6MM 92210 92210-0303 1 _________________________________________CA
