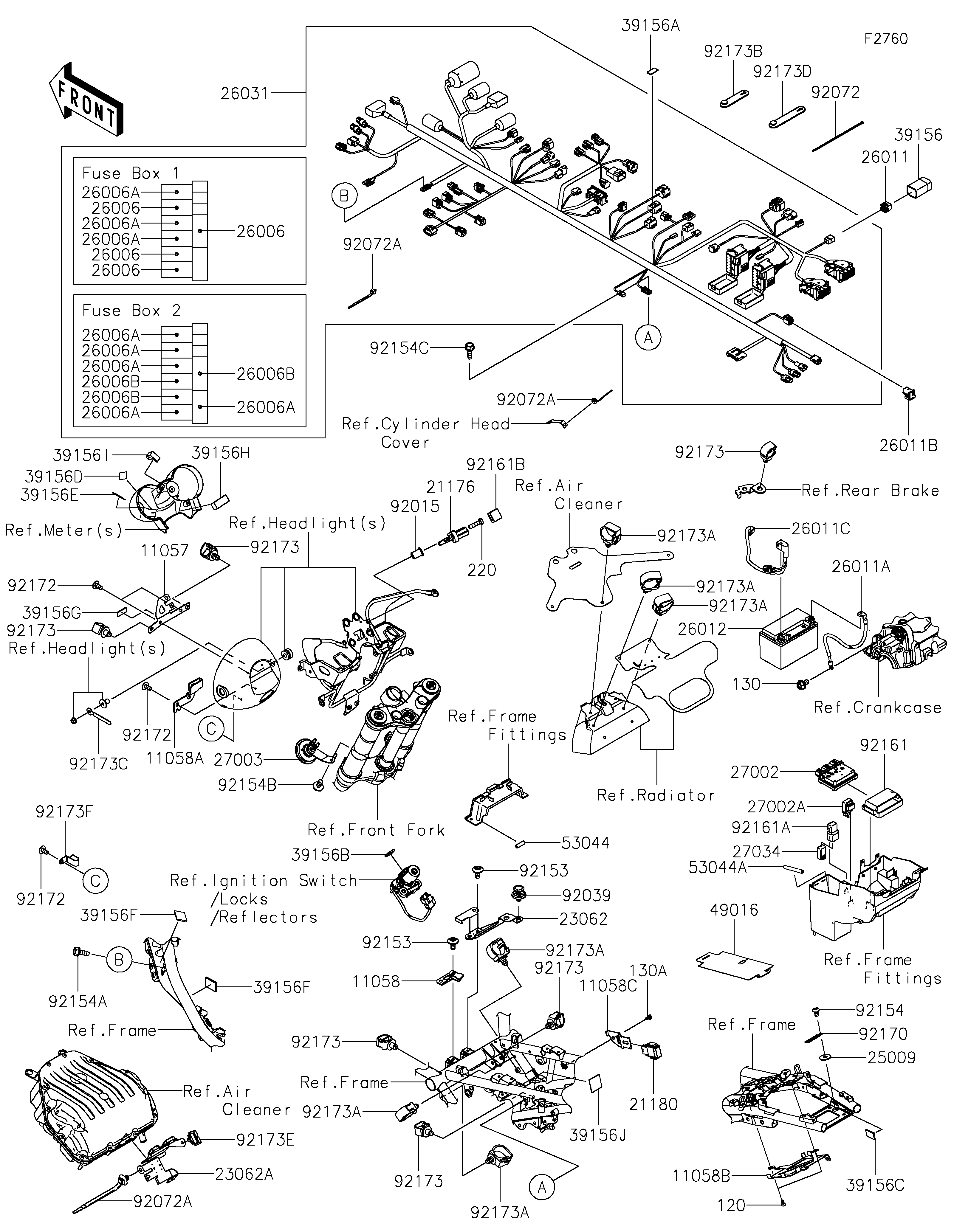

2026 Z900RS CAFÉ ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11058
11058
11058A
11058A
11058B
11058B
11058C
11058C
21176
21176
21180
21180
23062
23062
23062A
23062A
25009
25009
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
27002
27002
27002A
27002A
27003
27003
27034
27034
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
39156F
39156F
39156G
39156G
39156H
39156H
39156I
39156I
39156J
39156J
49016
49016
53044
53044
53044A
53044A
92015
92015
92039
92039
92072
92072
92072A
92072A
92072A
92072A
92072A
92072A
92153
92153
92153
92153
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92161
92161
92161A
92161A
92161B
92161B
92170
92170
92172
92172
92172
92172
92172
92172
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173B
92173B
92173C
92173C
92173D
92173D
92173E
92173E
92173F
92173F
120
120
130
130
130A
130A
220
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP COVER,UPP 11057 11057-1321 1
BRACKET,FUEL PUMP CONNECTOR 11058 11058-2977 1
BRACKET,SPEED SENSOR 11058A 11058-2980 1
BRACKET,ECU 11058B 11058-2981 1
BRACKET,TRANSCEIVER 11058C 11058-3715 1
SENSOR,AIR TEMPERATURE 21176 21176-0048 1
TRANSCEIVER 21180 21180-0010 1
BRACKET-COMP,UPPER-CROSS 23062 23062-1650 1
BRACKET-COMP,AIR CLEANER 23062A 23062-1651 1
WASHER,5.2X16X1.2 25009 25009-004 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 4
FUSE,MINI BLADE,10A,RED 26006A 26006-1078 8
FUSE,MINI BLADE,30A,GREEN 26006B 26006-1080 3
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0972 1
WIRE-LEAD,DIAG CONNECTOR 26011B 26011-1901 1
WIRE-LEAD,BATTERY(+) 26011C 26011-2519 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-1524 1
HARNESS,MAIN 26031 26031-7204 1
RELAY-ASSY 27002 27002-0061 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-0068 1
HORN 27003 27003-0146 1
RELAY 27034 27034-0012 1
PAD,DIAG. CONNECTOR 39156 39156-2112 1
PAD,10X20X1 39156A 39156-2241 1
PAD,20X25X4 39156B 39156-2284 1
PAD,20X40X4 39156C 39156-2285 2
PAD,20X20X1 39156D 39156-2288 1
PAD,30X30X1 39156E 39156-2289 1
PAD,30X40X4 39156F 39156-2348 2
PAD,15X35X1 39156G 39156-2364 1
PAD,20X50X15 39156H 39156-2378 1
PAD 39156I 39156-2962 1
PAD,20X20X2 39156J 39156-3868 1
COVER-SEAL 49016 49016-0730 1
TRIM,L=30 53044 53044-0001 1
TRIM 53044A 53044-0018 1
NUT,WELL,5MM 92015 92015-1757 1
RIVET,HOLE 8MM 92039 92039-0014 1
BAND,202X3.6 92072 92072-0782 1
BAND,OS170-FT7(BLACK) 92072A 92072-1414 AR
BOLT,SOCKET,6X12 92153 92153-1948 2
BOLT 92154 92154-0314 1
BOLT,FLANGED,6X16 92154A 92154-0551 1
BOLT,SOCKET,6X12 92154B 92154-2706 1
BOLT,FLANGED,6X18 92154C 92154-4008 1
DAMPER,RELAY BOX 92161 92161-0203 1
DAMPER 92161A 92161-2290 1
DAMPER 92161B 92161-2752 1
CLAMP 92170 92170-1514 1
SCREW,TAPPING,5X10 92172 92172-0262 4
CLAMP,12MM DIA. 92173 92173-0736 6
CLAMP 92173A 92173-0861 6
CLAMP,RUBBER PLATE 92173B 92173-1229 1
CLAMP 92173C 92173-1306 1
CLAMP 92173D 92173-1526 1
CLAMP,SENSOR WIRE 92173E 92173-1802 1
CLAMP 92173F 92173-1891 1
BOLT-SOCKET,6X10 120 120CA0610 2
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X10 130A 130CA0610 1
SCREW-PAN-CROS,5X18 220 220AB0518 1
