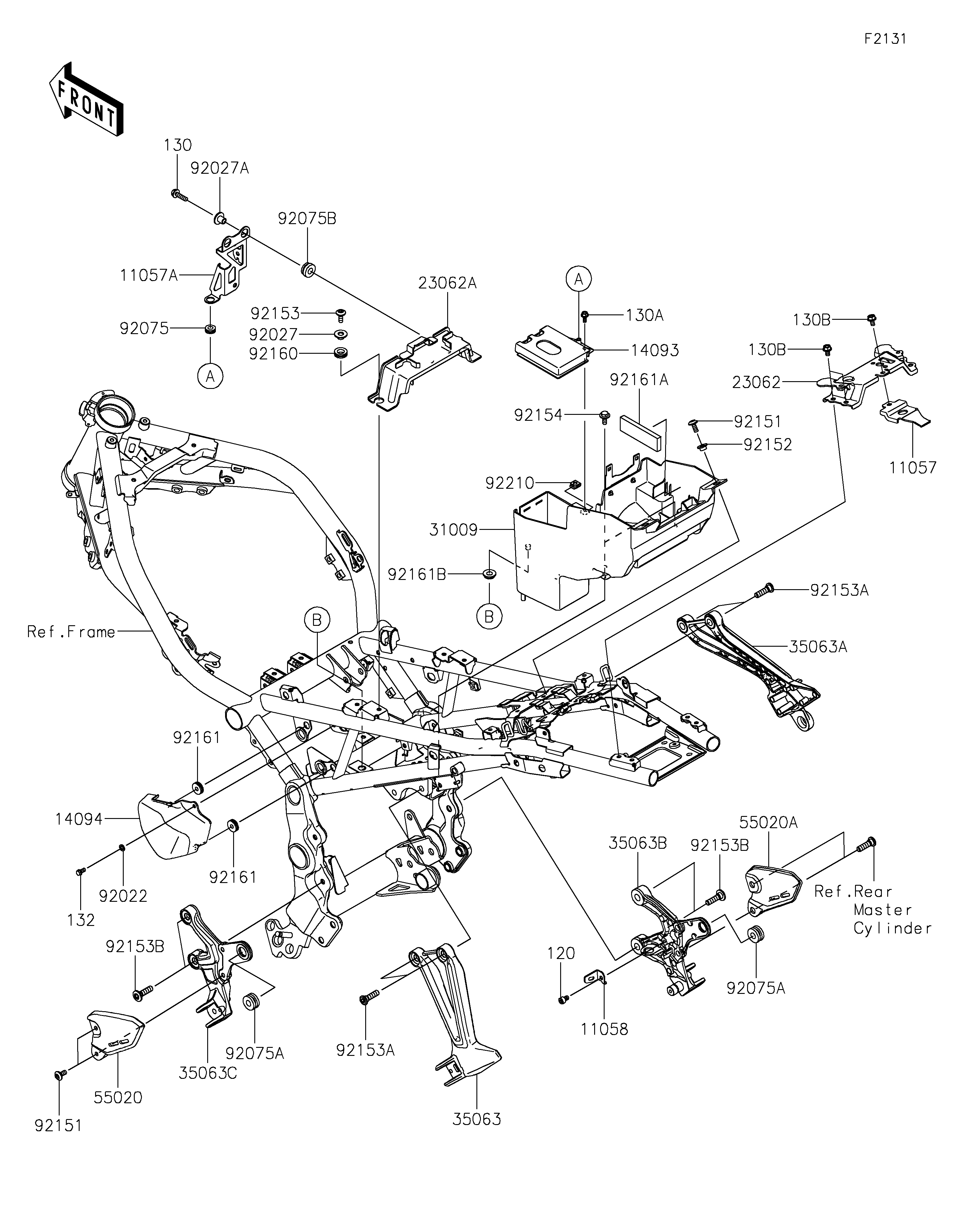

2026 Z900RS CAFÉ ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11058
14093
14094
23062
23062A
31009
35063
35063A
35063B
35063C
55020
55020A
92022
92027
92027A
92075
92075A
92075A
92075B
92151
92151
92152
92153
92153A
92153A
92153B
92153B
92154
92160
92161
92161
92161A
92161B
92210
120
130
130A
130B
130B
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TAIL LAMP 11057 11057-1341 1
BRACKET,REGULATOR 11057A 11057-1393 1
BRACKET,STEP STAY 11058 11058-2938 1
COVER,CANISTER 14093 14093-0619 1
COVER,ABS 14094 14094-0335 1
BRACKET-COMP,SEAT,RR 23062 23062-0969 1
BRACKET-COMP 23062A 23062-1711 1
CASE-COMP-BATTERY 31009 31009-0010 1
STAY,RR STEP,LH,F.S.BLACK 35063 35063-1393-18R 1
STAY,RR STEP,RH,F.S.BLACK 35063A 35063-1394-18R 1
STAY,STEP,RH,F.S.BLACK 35063B 35063-1640-18R 1
STAY,STEP,LH,F.S.BLACK 35063C 35063-1642-18R 1
GUARD,LH 55020 55020-2178 1
GUARD,RH 55020A 55020-2179 1
WASHER,6.3X10.2X1.6 92022 92022-1588 1
COLLAR,L=7 92027 92027-153 2
COLLAR,FLANGED,L=12.1,BLACK 92027A 92027-1651 2
DAMPER 92075 92075-161 1
DAMPER,10X24X12 92075A 92075-1690 2
DAMPER 92075B 92075-277 2
BOLT,SOCKET,6X14 92151 92151-1654 4
COLLAR 92152 92152-0422 2
BOLT,SOCKET,6X16 92153 92153-1526 2
BOLT,SOCKET,8X30 92153A 92153-1624 4
BOLT,SOCKET,8X30 92153B 92153-1630 4
BOLT,FLANGED,6X16 92154 92154-2955 2
DAMPER 92160 92160-1278 2
DAMPER,6X19X5.6 92161 92161-1911 2
DAMPER,25X83X8 92161A 92161-2134 1
DAMPER 92161B 92161-2717 1
NUT 92210 92210-0571 1
BOLT-SOCKET,6X10 120 120CA0610 1
BOLT-FLANGED,6X22 130 130BA0622 2
BOLT-FLANGED,5X12 130A 130BC0512 1
BOLT-FLANGED,6X10 130B 130CA0610 5
BOLT-FLANGED-SMALL,5X10 132 132BA0510 1
