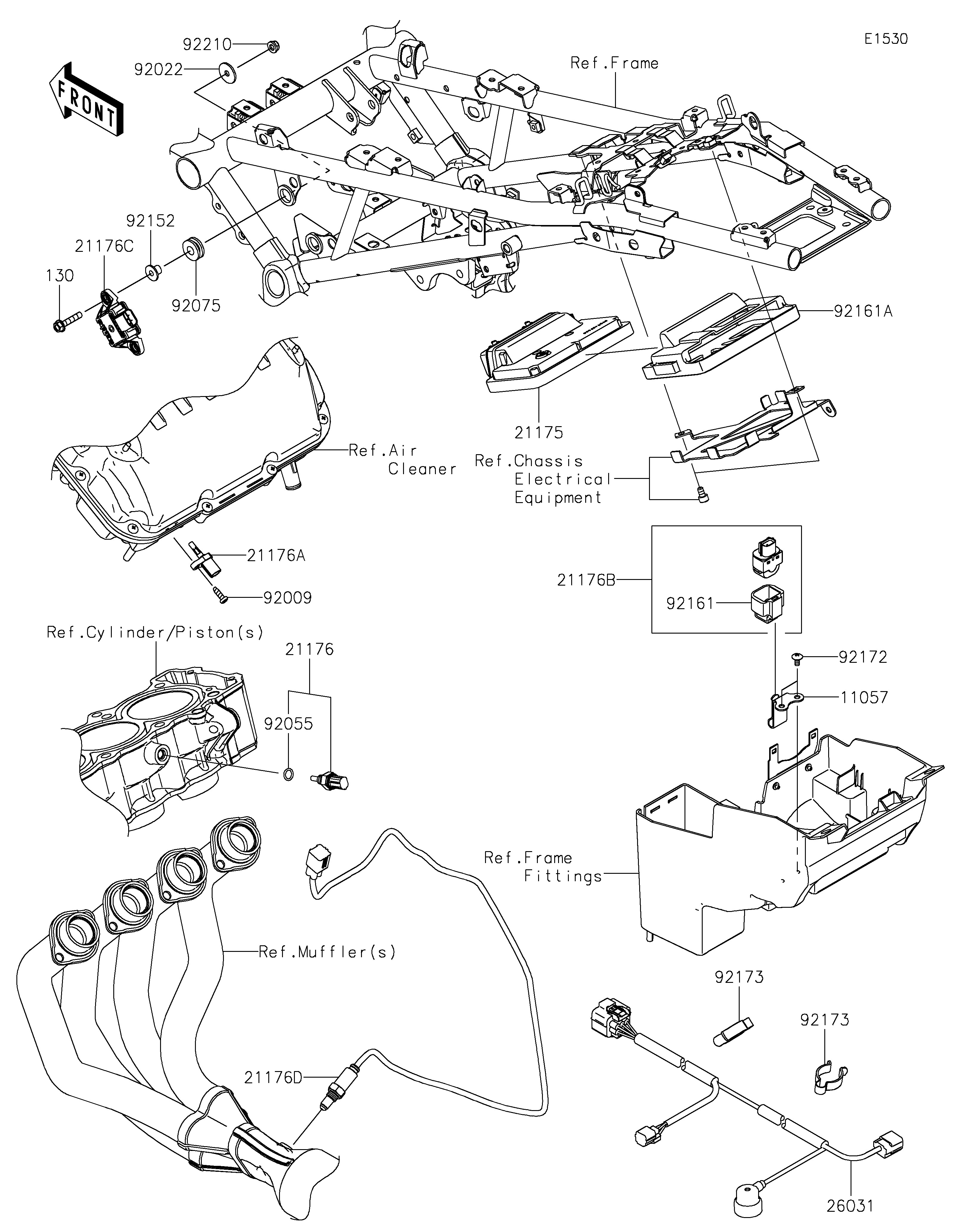

2026 Z900RS CAFÉ ABS - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11057
21175
21176
21176A
21176B
21176C
21176D
26031
92009
92022
92055
92075
92152
92161
92161A
92172
92173
92173
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,VEHICLE DOWN SENSOR 11057 11057-0896 1
CONTROL UNIT-ELECTRONIC 21175 21175-2236 1
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,AIR TEMPERATURE 21176A 21176-0048 1
SENSOR,VEHICLE-DOWN 21176B 21176-0704 1
SENSOR,GYRO 21176C 21176-1126 1
SENSOR,OXYGEN,FR 21176D 21176-1220 1
HARNESS,SUB 26031 26031-7055 1
SCREW,TAPPING,5X16 92009 92009-1984 1
WASHER,6.5X24X2 92022 92022-1690 2
RING-O,9.5X1.9 92055 92055-0016 1
DAMPER 92075 92075-1185 2
COLLAR 92152 92152-0352 2
DAMPER 92161 92161-0951 1
DAMPER,ECU 92161A 92161-2140 1
SCREW,TAPPING,5X10 92172 92172-0262 2
CLAMP 92173 92173-2419 2
NUT,LOCK,FLANGED,6MM 92210 92210-0303 2
BOLT-FLANGED,6X30 130 130BA0630 2
