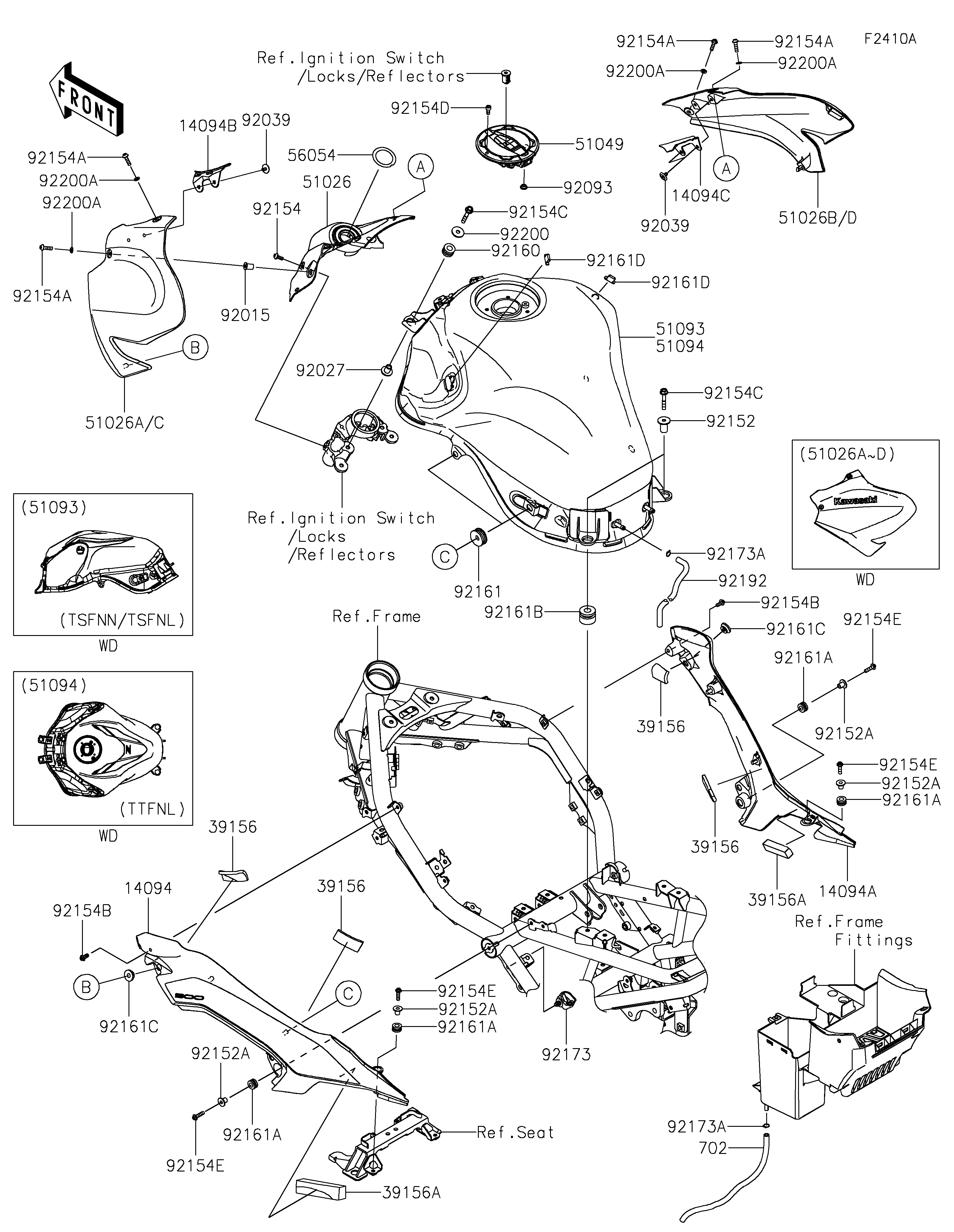

2026 Z900 SE ABS - Fuel Tank(CA)

DOWNLOAD PDF
SELECT A NEW PART
14094
14094
14094A
14094A
14094B
14094B
14094C
14094C
39156
39156
39156
39156
39156
39156
39156
39156
39156A
39156A
39156A
39156A
51026
51026
51026C
51026C
51026D
51026D
51049
51049
51094
51094
56054
56054
92015
92015
92027
92027
92039
92039
92039
92039
92093
92093
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92154D
92154D
92154E
92154E
92154E
92154E
92154E
92154E
92154E
92154E
92160
92160
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92161C
92161C
92161D
92161D
92161D
92161D
92173
92173
92173A
92173A
92173A
92173A
92192
92192
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,KNEE GRIP,LH 14094 14094-0124 1 _________________________________________CA
COVER,KNEE GRIP,RH 14094A 14094-0125 1 _________________________________________CA
COVER,TANK ORNAMENT,LH 14094B 14094-0126 1 _________________________________________CA
COVER,TANK ORNAMENT,RH 14094C 14094-0127 1 _________________________________________CA
PAD,20X50X5 39156 39156-2191 4 _________________________________________CA
PAD,15X66X10 39156A 39156-2215 2 _________________________________________CA
COVER TANK,CNT 51026 51026-0027 1 _________________________________________CA
COVER TANK,LH,M.M.G.GRAY 51026C 51026-5272-68P 1
COVER TANK,RH,M.M.G.GRAY 51026D 51026-5274-68P 1
CAP-TANK,FUEL 51049 51049-0756 1 _________________________________________CA
TANK-COMP-FUEL,M.M.C.GRAY 51094 51094-5241-51B 1
MARK,IG. SWITCH 56054 56054-2963 1 _________________________________________CA
NUT,WELL,5MM 92015 92015-1757 2 _________________________________________CA
COLLAR,6.5X10X14.1 92027 92027-1183 2 _________________________________________CA
RIVET 92039 92039-0768 4 _________________________________________CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 _________________________________________CA
COLLAR,6.3X12X22.6 92152 92152-2252 2 _________________________________________CA
COLLAR,5.6X8X11.2 92152A 92152-2342 4 _________________________________________CA
BOLT,SOCKET,5X12 92154 92154-0917 2 _________________________________________CA
BOLT,SOCKET,5X18 92154A 92154-1945 4 _________________________________________CA
BOLT,SOCKET,5X12 92154B 92154-4289 2 _________________________________________CA
BOLT-FLANGED,6X35 92154C 92154-4290 4 _________________________________________CA
BOLT-SOCKET,5X12 92154D 92154-4291 4 _________________________________________CA
BOLT,SOCKET,5X20 92154E 92154-4301 4 _________________________________________CA
DAMPER,10X20X12 92160 92160-1167 2 _________________________________________CA
DAMPER 92161 92161-0588 4 _________________________________________CA
DAMPER,8X16X8.6 92161A 92161-0685 4 _________________________________________CA
DAMPER,12X28X21 92161B 92161-1468 2 _________________________________________CA
DAMPER 92161C 92161-1810 2 _________________________________________CA
DAMPER 92161D 92161-1917 2 _________________________________________CA
CLAMP 92173 92173-0861 1 _________________________________________CA
CLAMP,TUBE 92173A 92173-2442 2 _________________________________________CA
TUBE,DRAIN 92192 92192-2895 1 _________________________________________CA
WASHER,6.5X22X1.6 92200 92200-1087 2 _________________________________________CA
WASHER,5.2X10X1 92200A 92200-2286 4 _________________________________________CA
TUBE-RUBBER,6X9X330 702 702A06330 1 _________________________________________CA
