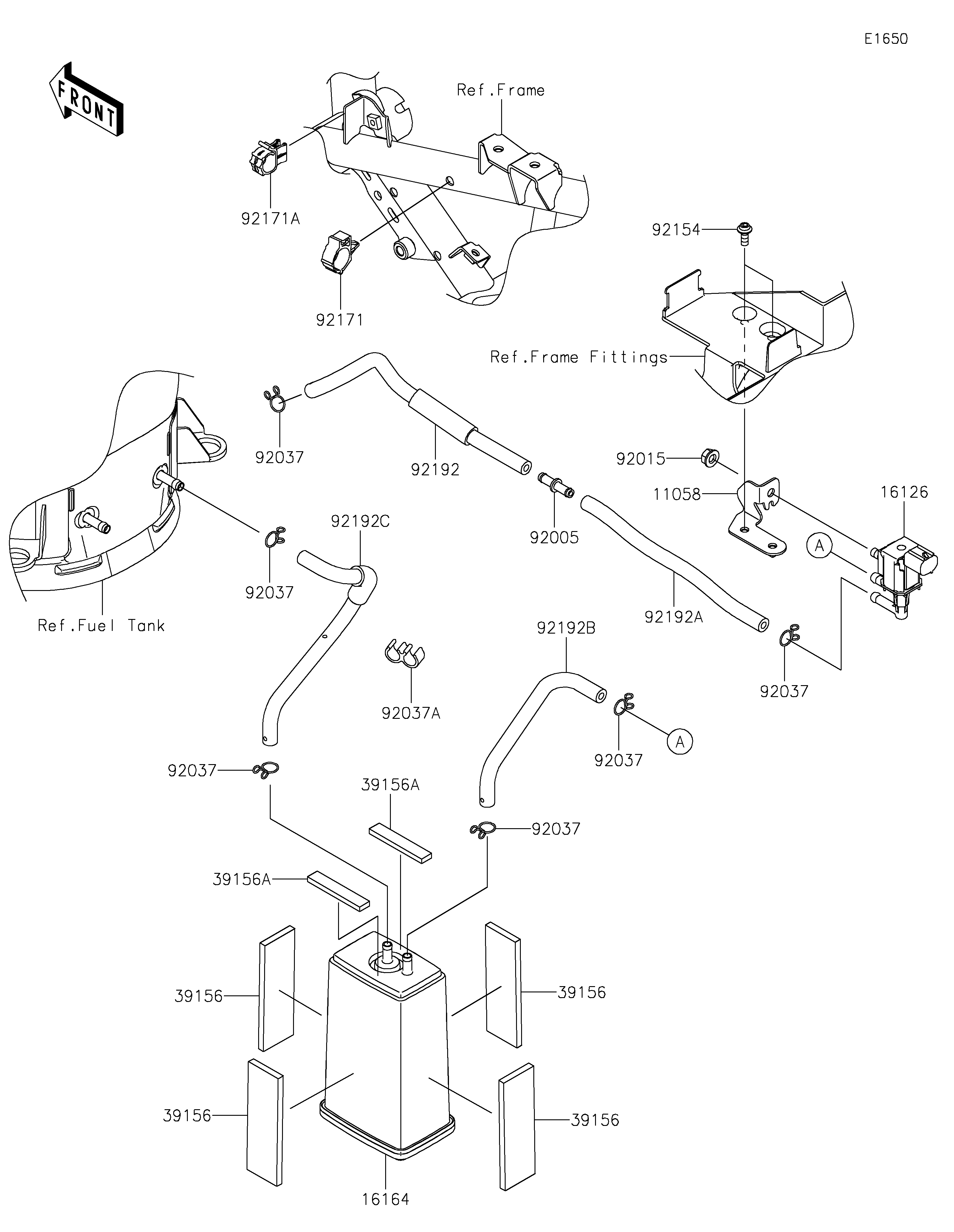

2026 Z900 SE ABS - Fuel Evaporative System(CA)

DOWNLOAD PDF
SELECT A NEW PART
11058
16126
16164
39156
39156
39156
39156
39156A
39156A
92005
92015
92037
92037
92037
92037
92037
92037
92037A
92154
92171
92171A
92192
92192A
92192B
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,PCV 11058 11058-1852 1 _________________________________________CA
VALVE,PCV 16126 16126-0740 1 _________________________________________CA
CANISTER 16164 16164-0012 1 _________________________________________CA
PAD,93X30X5 39156 39156-1858 4 _________________________________________CA
PAD,10X52.5X4 39156A 39156-2206 2 _________________________________________CA
FITTING 92005 92005-0721 1 _________________________________________CA
NUT,FLANGED,6MM 92015 92015-1367 1 _________________________________________CA
CLAMP,TUBE 92037 92037-147 6 _________________________________________CA
CLAMP,CORD 92037A 92037-1603 1 _________________________________________CA
BOLT,SOCKET,5X12 92154 92154-4289 2 _________________________________________CA
CLAMP,BRAKE HOSE 92171 92171-0316 1 _________________________________________CA
CLAMP,EDGE CLIP 92171A 92171-1722 1 _________________________________________CA
TUBE,THB-PCV 92192 92192-2755 1 _________________________________________CA
TUBE,THB-PCV 92192A 92192-2756 1 _________________________________________CA
TUBE-PCV-CANISTER 92192B 92192-2757 1 _________________________________________CA
TUBE,CANISTER-TANK 92192C 92192-2758 1 _________________________________________CA
