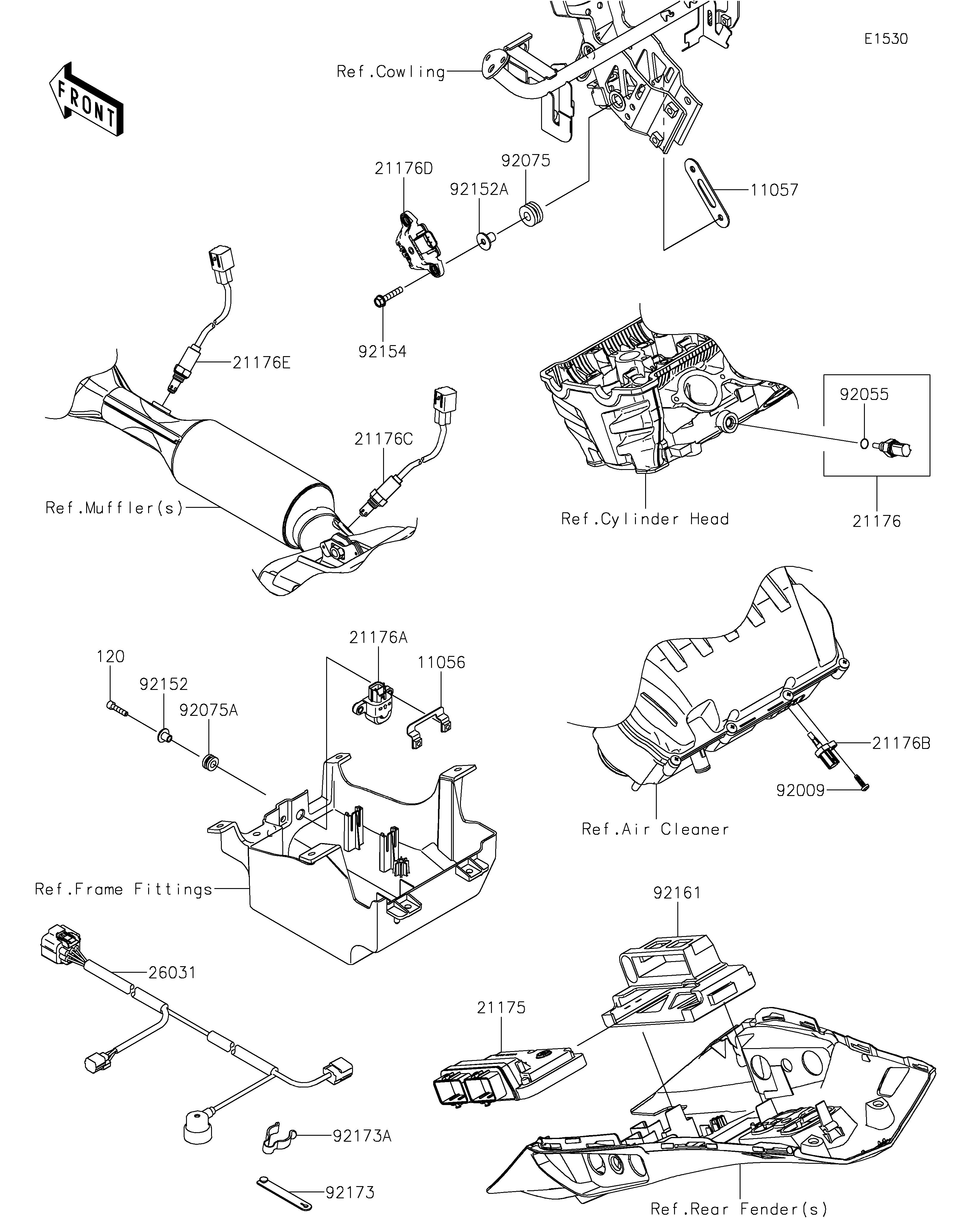

2025 Ninja 1100SX - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11056
11057
21175
21176
21176A
21176B
21176C
21176D
21176E
26031
92009
92055
92075
92075A
92152
92152A
92154
92161
92173
92173A
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-0124 1
BRACKET,SENSOR 11057 11057-0381 1
CONTROL UNIT-ELECTRONIC 21175 21175-2218 1
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,AIR TEMPERATURE 21176B 21176-0048 1
SENSOR,OXYGEN 21176C 21176-0932 1
SENSOR,GYRO 21176D 21176-1126 1
SENSOR,OXYGEN 21176E 21176-1205 1
HARNESS,SUB 26031 26031-4167 1
SCREW,TAPPING,5X16 92009 92009-1984 1
RING-O,9.5X1.9 92055 92055-0016 1
DAMPER,10X24X12 92075 92075-1690 2
DAMPER 92075A 92075-1912 2
COLLAR 92152 92152-0134 2
COLLAR,6.3X9.5X14.1 92152A 92152-1847 2
BOLT,FLANGED,6X30 92154 92154-1857 2
DAMPER,ECU 92161 92161-2261 1
CLAMP 92173 92173-2194 1
CLAMP 92173A 92173-2419 1
BOLT-SOCKET,5X25 120 120CA0525 2
