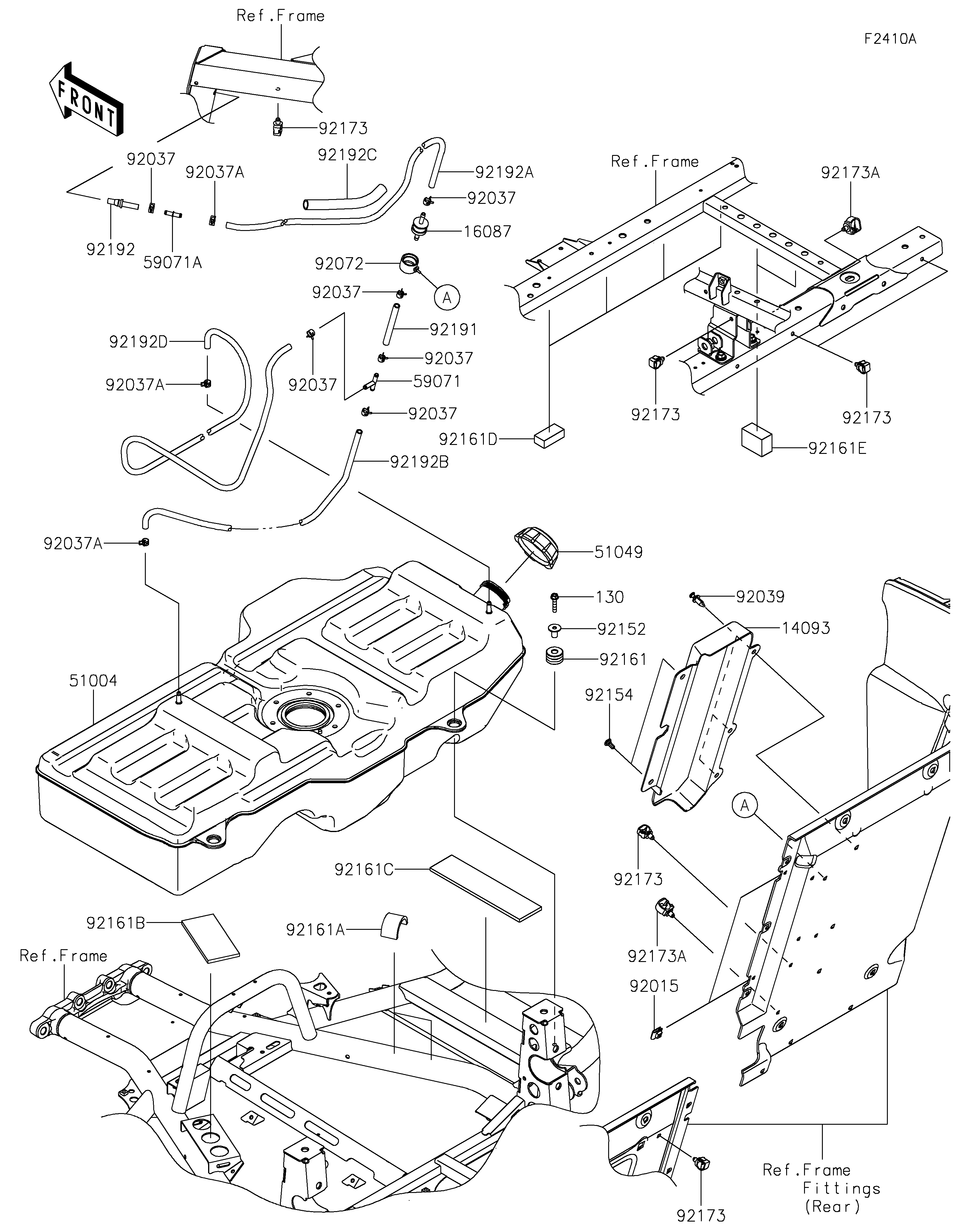

2026 Teryx KRX 1000 eS - Fuel Tank(CN,US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,BREATHER PIPE | 14093 | 14093-0987 | 1 | US | |
| VALVE-CHECK | 16087 | 16087-0008 | 1 | US | |
| TANK-FUEL | 51004 | 51004-0044 | 1 | US | |
| CAP-TANK,FUEL | 51049 | 51049-0718 | 1 | US | |
| JOINT | 59071 | 59071-3705 | 1 | US | |
| JOINT | 59071A | 59071-3717 | 1 | US | |
| NUT,CLAMP,6MM | 92015 | 92015-1678 | 2 | US | |
| CLAMP,TUBE | 92037 | 92037-1461 | 6 | US | |
| CLAMP | 92037A | 92037-2113 | 3 | US | |
| RIVET | 92039 | 92039-0776 | 3 | US | |
| BAND | 92072 | 92072-0850 | 1 | US | |
| COLLAR,6.8X10X18.1 | 92152 | 92152-1867 | 3 | US | |
| BOLT | 92154 | 92154-3957 | 2 | US | |
| DAMPER,TANK | 92161 | 92161-2178 | 3 | US | |
| DAMPER,TANK FRAME PIPE | 92161A | 92161-2179 | 2 | US | |
| DAMPER,TANK LH LOWER | 92161B | 92161-2180 | 1 | US | |
| DAMPER,TANK LOWER | 92161C | 92161-2253 | 1 | US | |
| DAMPER,TANK & SEAT FRAME | 92161D | 92161-2275 | 4 | US | |
| DAMPER,TANK & SEAT FRAME | 92161E | 92161-2288 | 2 | US | |
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 6 | US | |
| CLAMP | 92173A | 92173-0861 | 2 | US | |
| TUBE,5X9X100 | 92191 | 92191-1792 | 1 | US | |
| TUBE,FRAME PIPE-CHECK VALVE | 92192 | 92192-0068 | 1 | US | |
| TUBE,5X11X870 | 92192A | 92192-1948 | 1 | US | |
| TUBE,5X11X1020 | 92192B | 92192-1994 | 1 | US | |
| TUBE,CONVOLUTED,13.2X17.5X160 | 92192C | 92192-2294 | 1 | US | |
| TUBE,5X11X1380 | 92192D | 92192-2351 | 1 | US | |
| BOLT-FLANGED,6X30 | 130 | 130BA0630 | 3 | US |
| COVER,BREATHER PIPE | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| VALVE-CHECK | |
| REF # | 16087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TANK-FUEL | |
| REF # | 51004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| JOINT | |
| REF # | 59071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| NUT,CLAMP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | US |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | US |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | US |
| REMARKS | |
| BAND | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| COLLAR,6.8X10X18.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | US |
| REMARKS | |
| BOLT | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| DAMPER,TANK | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | US |
| REMARKS | |
| DAMPER,TANK FRAME PIPE | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| DAMPER,TANK LH LOWER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| DAMPER,TANK LOWER | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| DAMPER,TANK & SEAT FRAME | |
| REF # | 92161D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | US |
| REMARKS | |
| DAMPER,TANK & SEAT FRAME | |
| REF # | 92161E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| CLAMP,12MM DIA. | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | US |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| TUBE,5X9X100 | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TUBE,FRAME PIPE-CHECK VALVE | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TUBE,5X11X870 | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TUBE,5X11X1020 | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TUBE,CONVOLUTED,13.2X17.5X160 | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| TUBE,5X11X1380 | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| BOLT-FLANGED,6X30 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | US |
| REMARKS | |
