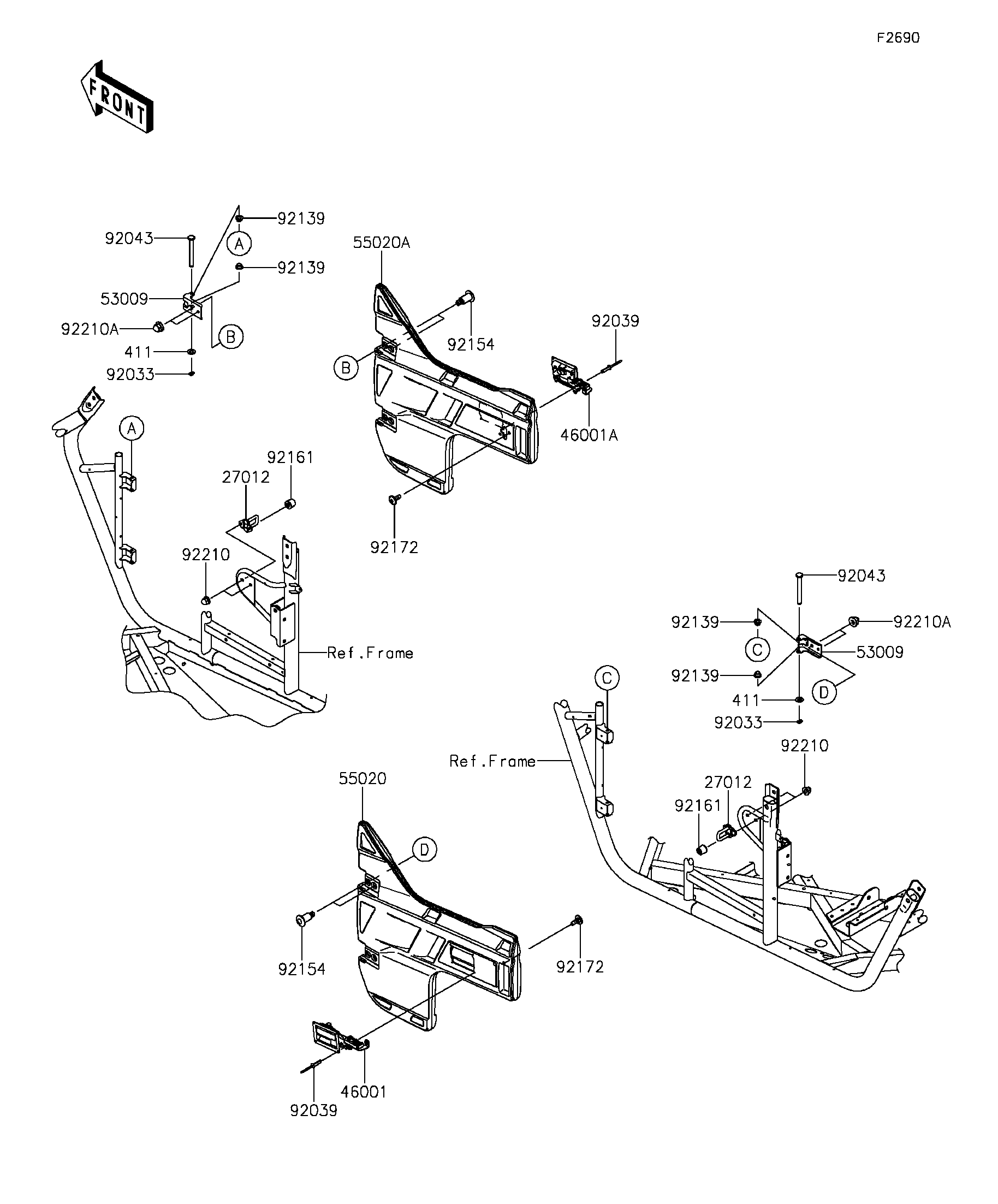

2014 Teryx - Door

DOWNLOAD PDF
SELECT A NEW PART
27012
27012
46001
46001A
53009
53009
55020
55020A
92033
92033
92039
92039
92043
92043
92139
92139
92139
92139
92154
92154
92161
92161
92172
92172
92210
92210
92210A
92210A
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOOK 27012 27012-0705 2
HANDLE-ASSY,SIDE GUARD,LH 46001 46001-0556 1
HANDLE-ASSY,SIDE GUARD,RH 46001A 46001-0557 1
HINGE 53009 53009-0303 4
GUARD,SIDE,FR,LH 55020 55020-0730 1
GUARD,SIDE,FR,RH 55020A 55020-0731 1
RING-SNAP 92033 92033-0719 4
RIVET,4.0X17.5 92039 92039-0703 8
PIN,6X56 92043 92043-0743 4
BUSHING,6X8X6 92139 92139-0709 8
BOLT,SOCKET,8X30 92154 92154-0712 8
DAMPER,9X28X24.3 92161 92161-1456 2
SCREW,6X16 92172 92172-0711 4
NUT,CAP,6MM 92210 92210-0003 4
NUT,CAP,8MM 92210A 92210-0488 8
WASHER-PLAIN,6MM 411 411AB0600 4
