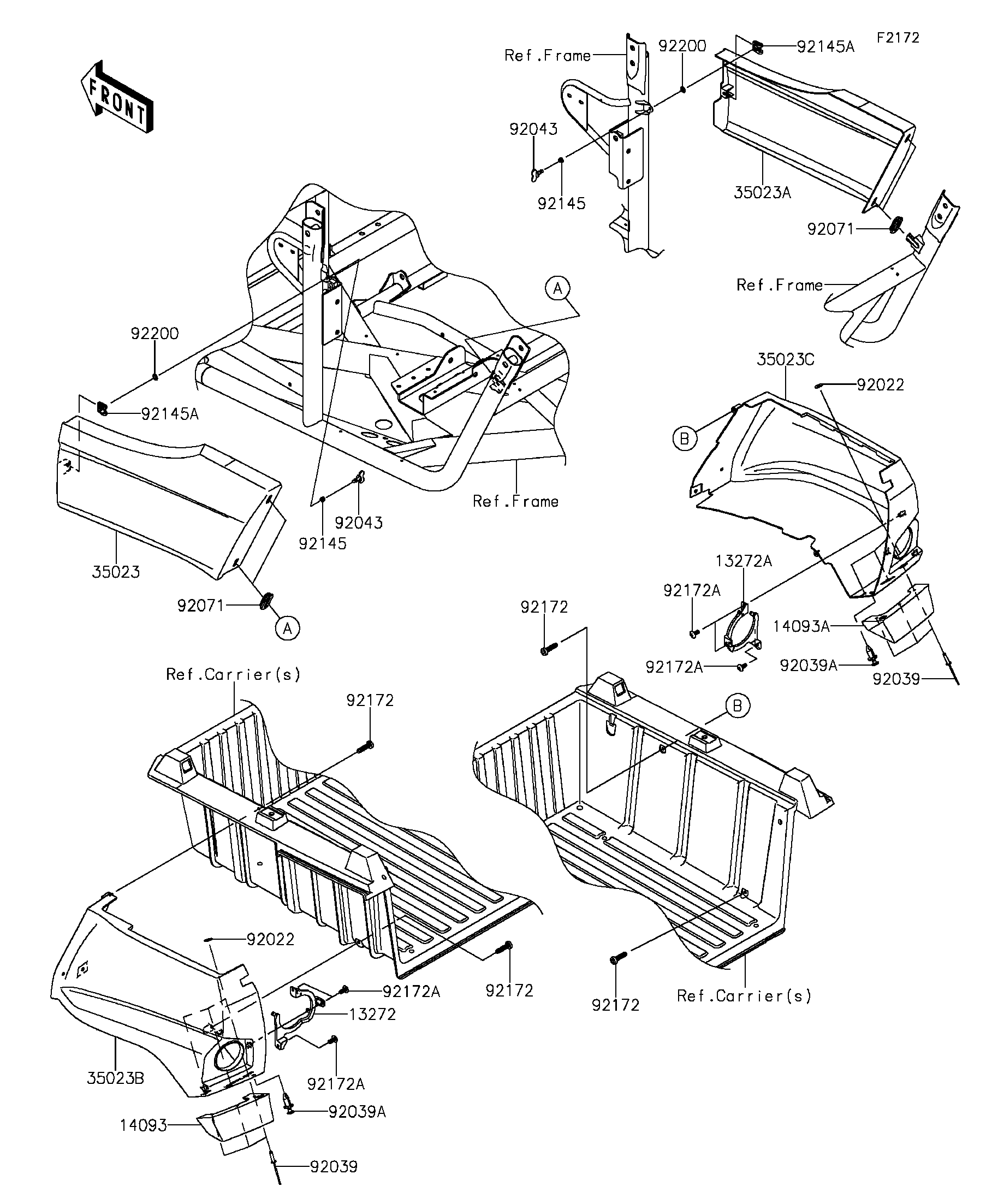

2014 Teryx - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
13272
13272A
14093
14093A
35023
35023A
35023B
35023C
92022
92022
92039
92039
92039A
92039A
92043
92043
92071
92071
92145
92145
92145A
92145A
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,TAILLIGHT MOUNT,LH 13272 13272-1481 1
PLATE,TAILLIGHT MOUNT,RH 13272A 13272-1482 1
COVER,MUD GUARD,LH 14093 14093-0001 1
COVER,MUD GUARD,RH 14093A 14093-0002 1
FENDER-REAR,FR,LH,S.BLACK 35023 35023-0366-839 1
FENDER-REAR,FR,RH,S.BLACK 35023A 35023-0367-839 1
FENDER-REAR,RR,LH,S.BLACK 35023B 35023-0368-839 1
FENDER-REAR,RR,RH,S.BLACK 35023C 35023-0369-839 1
WASHER,5.2X13X1 92022 92022-1380 6
RIVET,4.9X19.8 92039 92039-0704 6
RIVET 92039A 92039-1229 2
PIN,WINGED,240 92043 92043-0779 2
GROMMET 92071 92071-1187 4
SPRING 92145 92145-0905 2
SPRING,CLIP 92145A 92145-0906 2
SCREW 92172 92172-0886 4
SCREW,5X12 92172A 92172-3714 6
WASHER 92200 92200-0800 2
