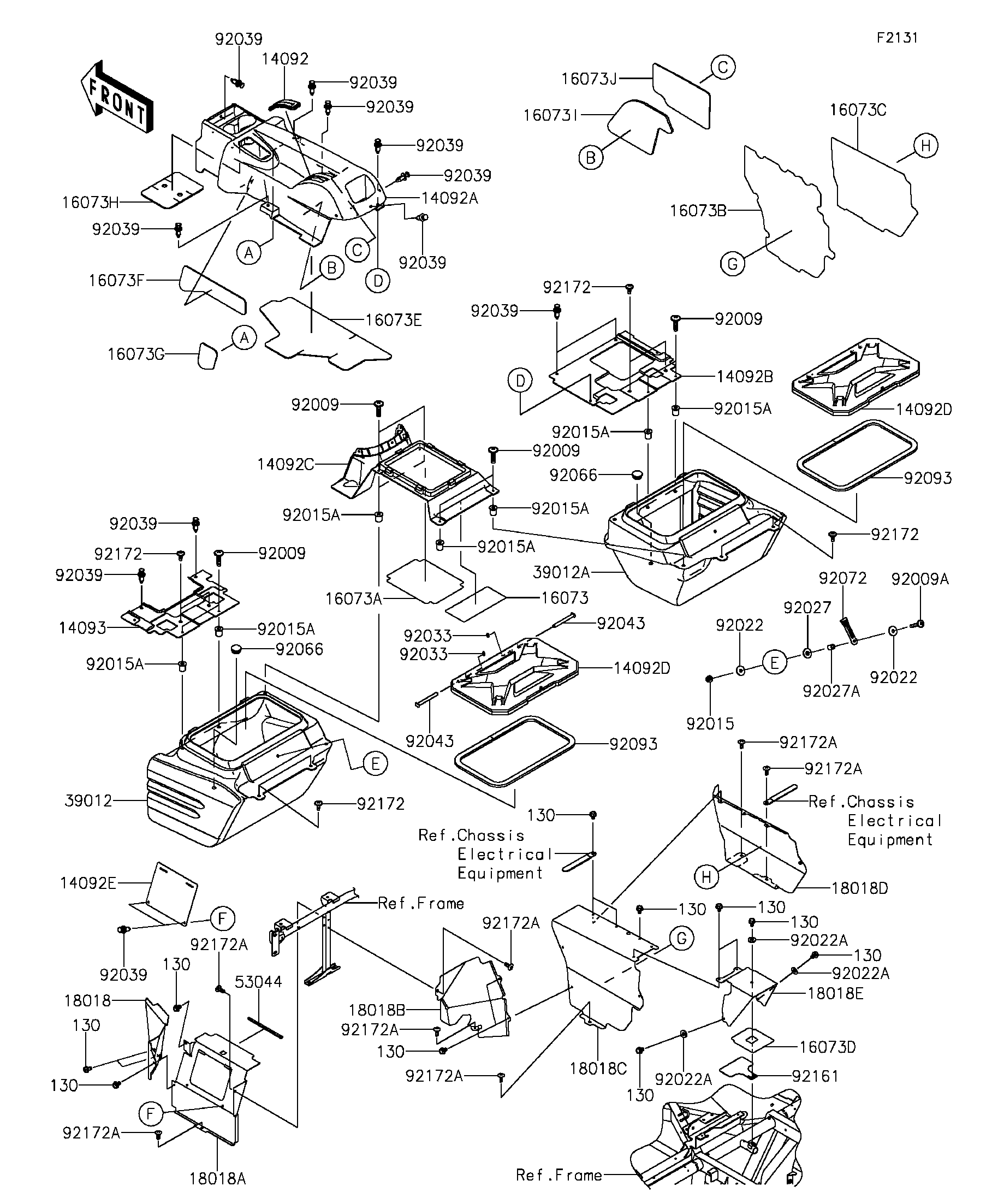

2014 Teryx - Frame Fittings(Rear)

DOWNLOAD PDF
SELECT A NEW PART
14092
14092
14092A
14092A
14092B
14092B
14092C
14092C
14092D
14092D
14092D
14092D
14092E
14092E
14093
14093
16073
16073
16073A
16073A
16073B
16073B
16073C
16073C
16073D
16073D
16073E
16073E
16073F
16073F
16073G
16073G
16073H
16073H
16073I
16073I
16073J
16073J
18018
18018
18018A
18018A
18018B
18018B
18018C
18018C
18018D
18018D
18018E
18018E
39012
39012
39012A
39012A
53044
53044
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92027
92027
92027A
92027A
92033
92033
92033
92033
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92043
92043
92043
92043
92066
92066
92066
92066
92072
92072
92093
92093
92093
92093
92161
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,CENTER CONSOLE,TOP 14092 14092-0791 1
COVER,CENTER CONSOLE 14092A 14092-1056 1
COVER,RR SIDE,RH 14092B 14092-1070 1
COVER,RR CONSOLE 14092C 14092-1071 1
COVER,RR STORAGE 14092D 14092-1072 2
COVER,MAINTENANCE 14092E 14092-1136 1
COVER,RR SIDE,LH 14093 14093-0063 1
INSULATOR,RR,115X255 16073 16073-0791 1
INSULATOR,FR,225X290 16073A 16073-0792 1
INSULATOR,RR TUNNEL,LH 16073B 16073-0795 1
INSULATOR,RR TUNNEL,RH 16073C 16073-0796 1
INSULATOR,RR TUNNEL,RR 16073D 16073-0797 1
INSULATOR,CENTER CONSOLE 16073E 16073-0800 1
INSULATOR,CENTER CONSOLE 16073F 16073-0801 1
INSULATOR,CENTER CONSOLE 16073G 16073-0802 1
INSULATOR,CENTER CONSOLE 16073H 16073-0803 1
INSULATOR,CENTER CONSOLE 16073I 16073-0804 1
INSULATOR,CENTER CONSOLE 16073J 16073-0805 1
PLATE-HEAT GUARD,DRIVER 18018 18018-0040 1
PLATE-HEAT GUARD,LH UD SEAT,FR 18018A 18018-0042 1
PLATE-HEAT GUARD,LH UD SEAT,RR 18018B 18018-0043 1
PLATE-HEAT GUARD,RR TUNNEL,LH 18018C 18018-0044 1
PLATE-HEAT GUARD,RR TUNNEL,RH 18018D 18018-0045 1
PLATE-HEAT GUARD,RR TUNNEL,RR 18018E 18018-0047 1
CASE-STORAGE,RR,LH 39012 39012-0035 1
CASE-STORAGE,RR,RH 39012A 39012-0036 1
TRIM,L=200 53044 53044-0573 1
SCREW,6X25 92009 92009-1465 8
SCREW,6X35 92009A 92009-1672 2
NUT,LOCK,FLANGED,6MM 92015 92015-1339 2
NUT 92015A 92015-1700 8
WASHER,6.5X20X1.6 92022 92022-125 4
WASHER 92022A 92022-2247 3
COLLAR,L=5.1 92027 92027-1260 2
COLLAR,6.8X10X12 92027A 92027-162 2
RING-SNAP 92033 92033-0719 4
RIVET 92039 92039-1229 14
PIN,6X56 92043 92043-0778 4
PLUG 92066 92066-1306 2
BAND 92072 92072-0144 2
SEAL 92093 92093-0605 2
DAMPER,RR TUNNEL 92161 92161-1577 1
SCREW,6X16 92172 92172-0711 8
SCREW,TAPPING,6X16 92172A 92172-0739 7
BOLT-FLANGED,6X10 130 130AA0610 14
