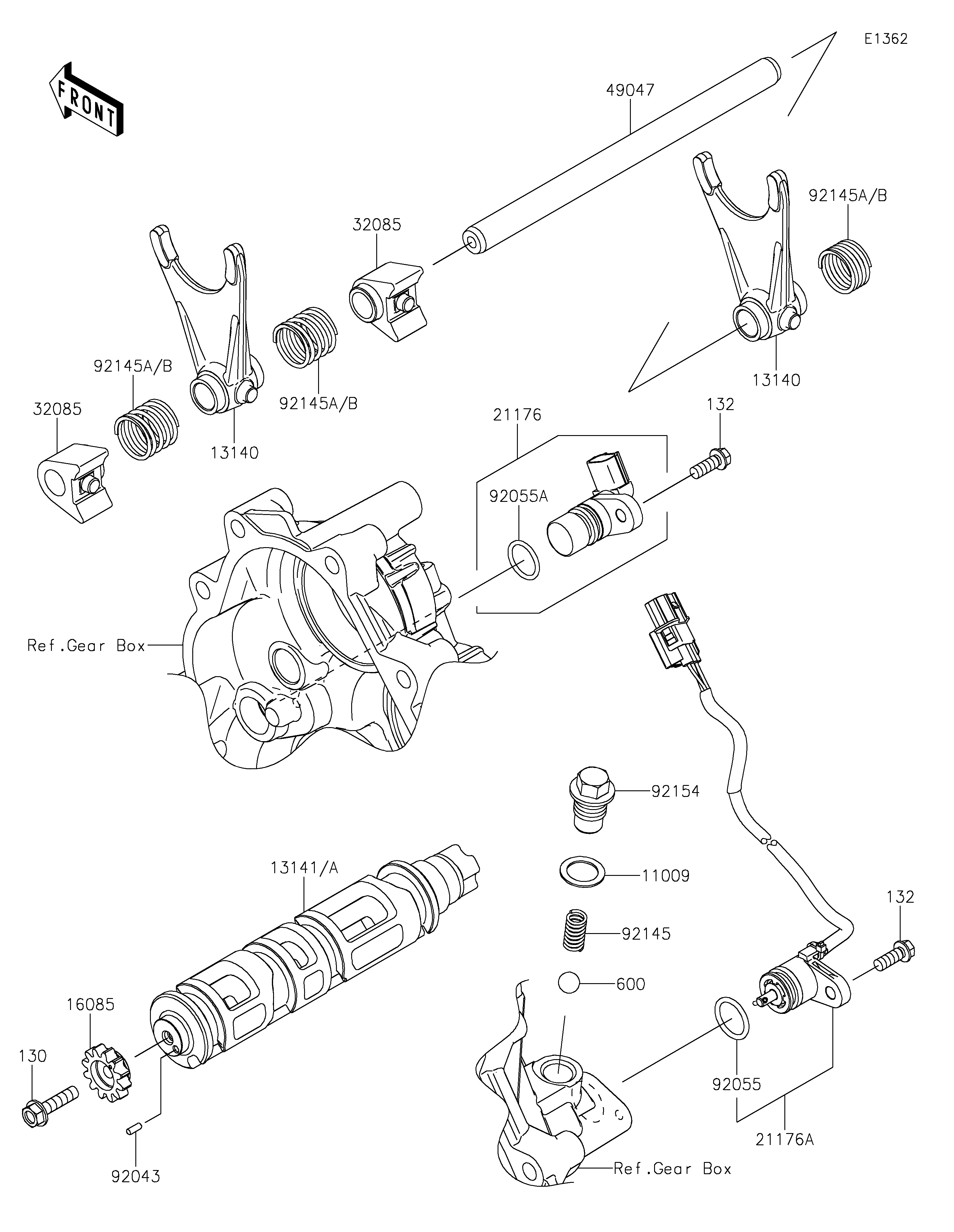

2026 TERYX® KRX4™ 1000 eS - Gear Change Drum/Shift Fork(s)

DOWNLOAD PDF
SELECT A NEW PART
11009
13140
13140
13141
13141A
16085
21176
21176A
32085
32085
49047
92043
92055
92055A
92145
92145A
92145A
92145A
92145B
92145B
92145B
92154
130
132
132
600
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,15.5X22X1 11009 11009-1008 1
FORK-SHIFT 13140 13140-0693 2
DRUM-CHANGE 13141 13141-0614 1
DRUM-CHANGE 13141A 13141-0618 1
GEAR,12T 16085 16085-0681 1
SENSOR,SPEED 21176 21176-0891 1
SENSOR,GEAR POSITION 21176A 21176-1161 1
STOPPER 32085 32085-0901 2
ROD-SHIFT 49047 49047-0641 1
PIN,3X8 92043 92043-1716 1
RING-O 92055 92055-0917 1
RING-O 92055A 92055-1639 1
SPRING 92145 92145-1590 1
SPRING 92145A 92145-2276 3
SPRING 92145B 92145-2315 3
BOLT,CHANGE POSITION 92154 92154-1366 1
BOLT-FLANGED,6X25 130 130CA0625 1
BOLT-FLANGED-SMALL,6X16 132 132BA0616 2
BALL-STEEL,13/32 600 600A1300 1
