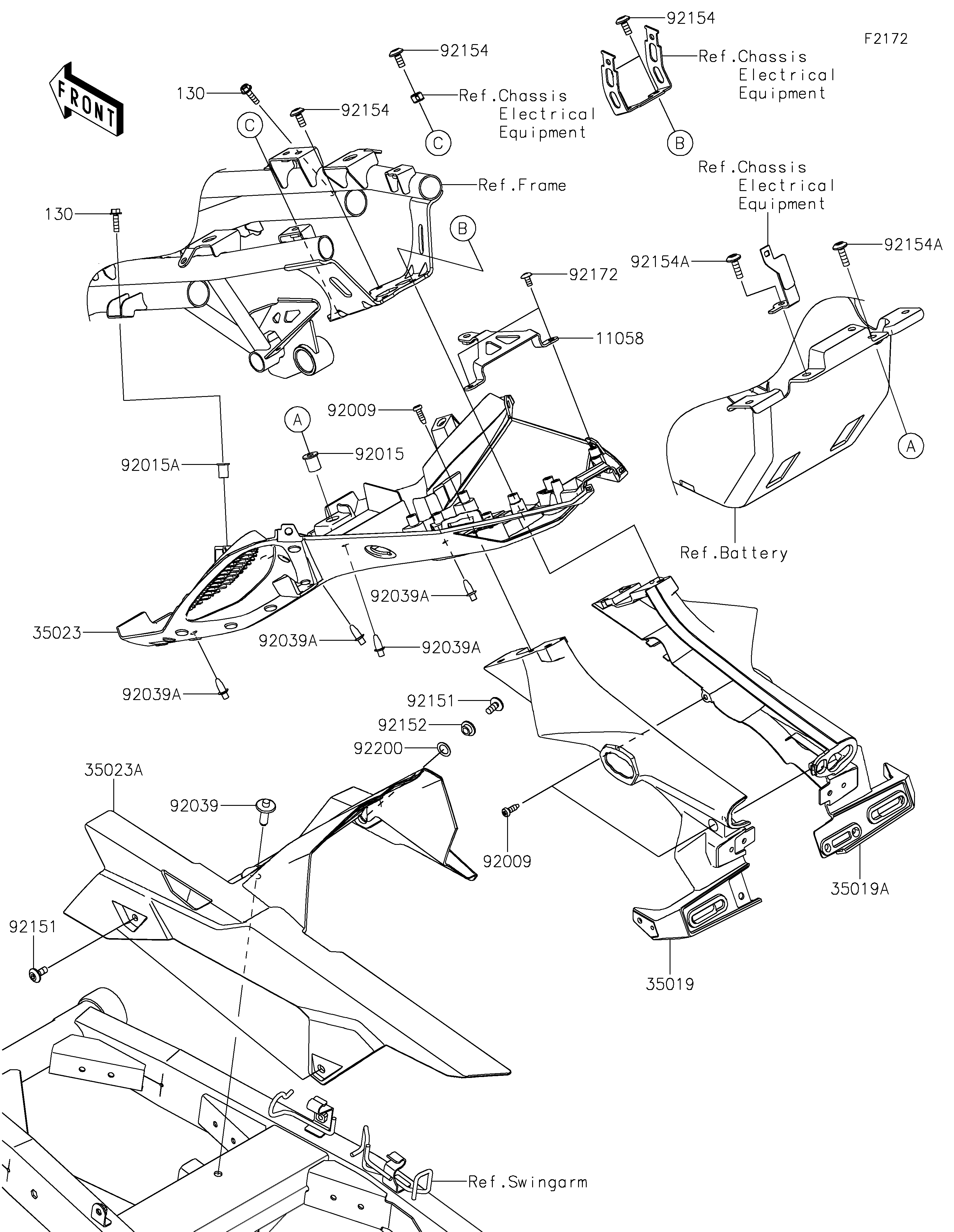

2024 NINJA® 7 HYBRID ABS - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11058
35019
35019A
35023
35023A
92009
92009
92015
92015A
92039
92039A
92039A
92039A
92039A
92151
92151
92152
92154
92154
92154
92154A
92154A
92172
92200
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR FENDER 11058 11058-0423 1
FLAP,RR,LH 35019 35019-0677 1
FLAP,RR,RH 35019A 35019-0678 1
FENDER-REAR 35023 35023-0488 1
FENDER-REAR,INNER 35023A 35023-0526 1
SCREW,TAPPING,5X16 92009 92009-1984 3
NUT 92015 92015-1700 2
NUT,WELL,5MM 92015A 92015-1757 2
RIVET 92039 92039-0086 1
RIVET 92039A 92039-0709 4
BOLT,SOCKET,6X14 92151 92151-1654 3
COLLAR,6.5X10X5.9 92152 92152-2486 1
BOLT,SOCKET,6X14 92154 92154-0745 4
BOLT,SOCKET,6X20 92154A 92154-0918 2
SCREW,TAPPING,5X10 92172 92172-0262 2
WASHER,10.4X15.9X0.5 92200 92200-2525 1
BOLT-FLANGED,5X18 130 130BA0518 2
