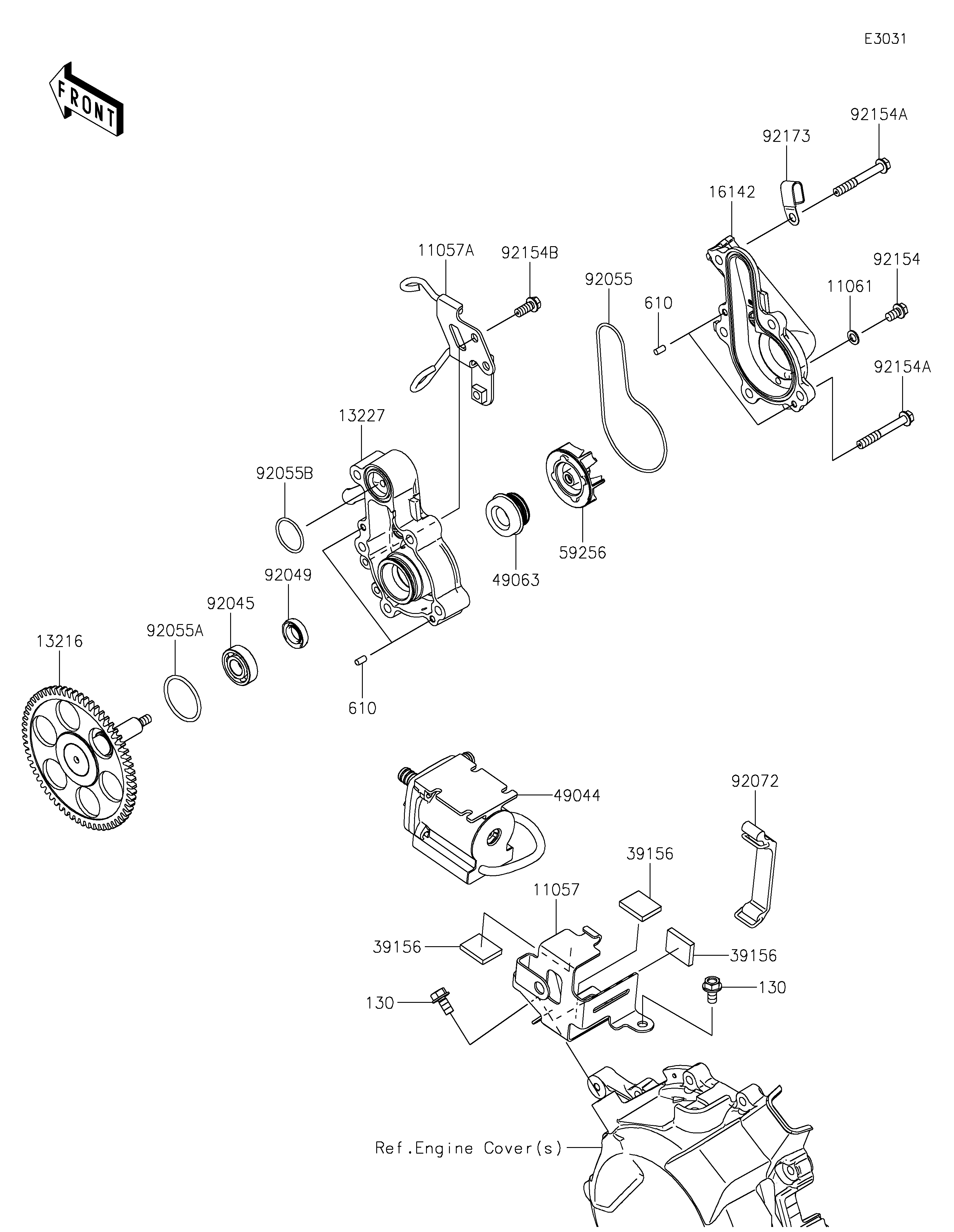

2024 NINJA® 7 HYBRID ABS - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11061
13216
13227
16142
39156
39156
39156
49044
49063
59256
92045
92049
92055
92055A
92055B
92072
92154
92154A
92154A
92154B
92173
130
130
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,WATER PUMP 11057 11057-7939 1
BRACKET 11057A 11057-7997 1
GASKET,DRAIN 11061 11061-0875 1
GEAR-COMP,WATER PUMP,62T 13216 13216-0894 1
HOUSING,WATER PUMP 13227 13227-0713 1
COVER-PUMP 16142 16142-0766 1
PAD 39156 39156-0285 3
PUMP-WATER 49044 49044-0018 1
SEAL-MECHANICAL 49063 49063-1055 1
IMPELLER 59256 59256-0554 1
BEARING-BALL 92045 92045-0067 1
SEAL-OIL,12X22X5 92049 92049-0783 1
RING-O 92055 92055-0889 1
RING-O,31.20X2.4 92055A 92055-0896 1
RING-O,23.3X1.9 92055B 92055-1555 1
BAND,TOOL,L=82 92072 92072-1294 1
BOLT,FLANGED,6X10 92154 92154-2344 1
BOLT,FLANGED,6X45 92154A 92154-2789 5
BOLT,FLANGED,6X14 92154B 92154-2838 2
CLAMP 92173 92173-1828 1
BOLT-FLANGED,6X12 130 130BB0612 2
ROLLER,4X8 610 610A0408 4
