Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13272
21003
21007
21200
23062
92027
92027
92075
92075
92154
92154A
92154B
92154B
92154C
92154C
92173
92200
220

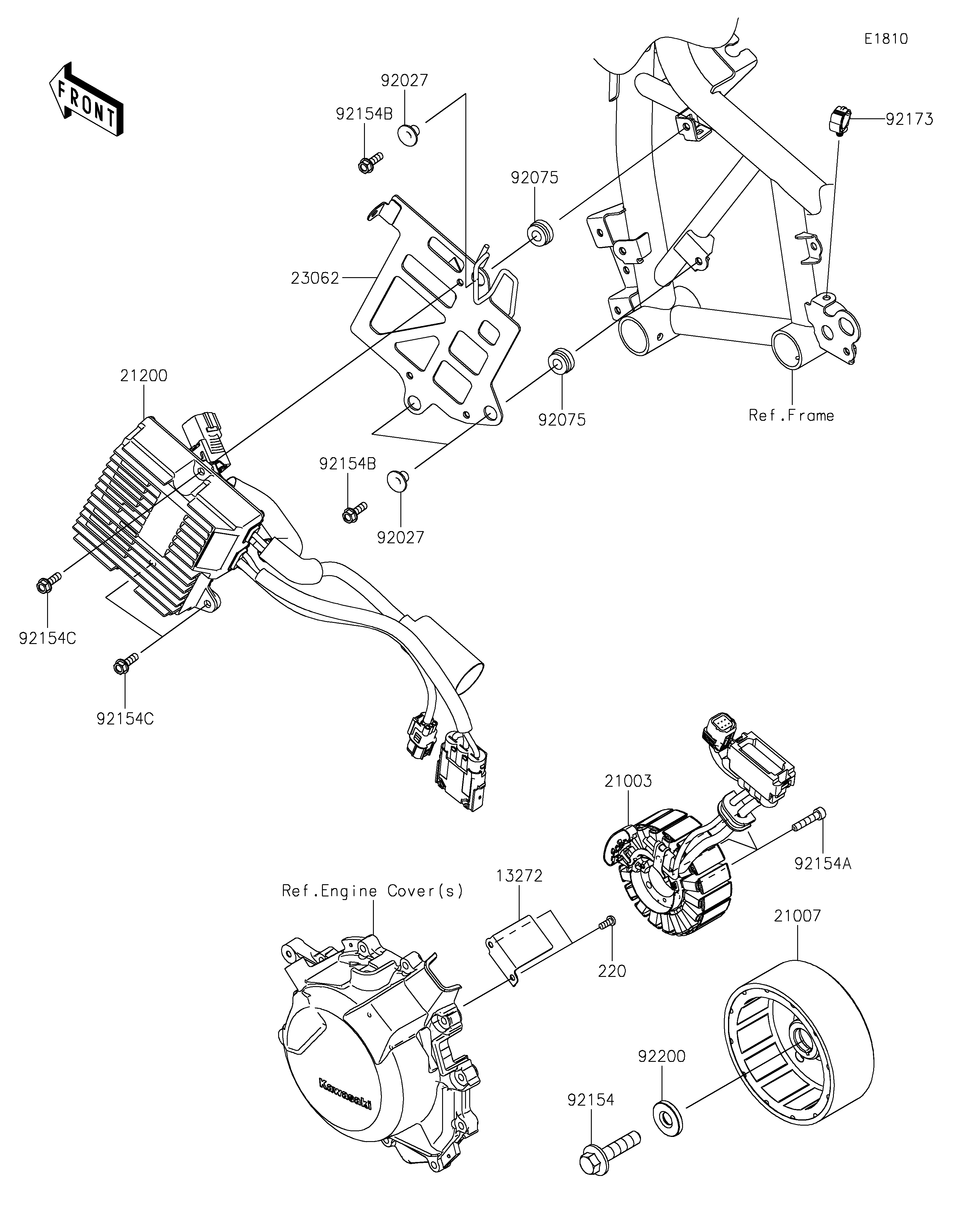

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,HARNESS | 13272 | 13272-4037 | 1 | ||
| STATOR | 21003 | 21003-0218 | 1 | ||
| ROTOR | 21007 | 21007-0740 | 1 | ||
| INVERTER | 21200 | 21200-0001 | 1 | ||
| BRACKET-COMP,INVERTER | 23062 | 23062-1366 | 1 | ||
| COLLAR,FLANGED,L=12.1,BLACK | 92027 | 92027-1651 | 3 | ||
| DAMPER | 92075 | 92075-277 | 3 | ||
| BOLT,12X50 | 92154 | 92154-1826 | 1 | ||
| BOLT,SOCKET,6X30 | 92154A | 92154-2820 | 3 | ||
| BOLT,6X20 | 92154B | 92154-7029 | 3 | ||
| BOLT,FLANGED,6X20 | 92154C | 92154-7513 | 3 | ||
| CLAMP,HOLDER CLIP | 92173 | 92173-0868 | 1 | ||
| WASHER,12X33X5 | 92200 | 92200-0220 | 1 | ||
| SCREW-PAN-CROS,5X12 | 220 | 220AA0512 | 2 |
