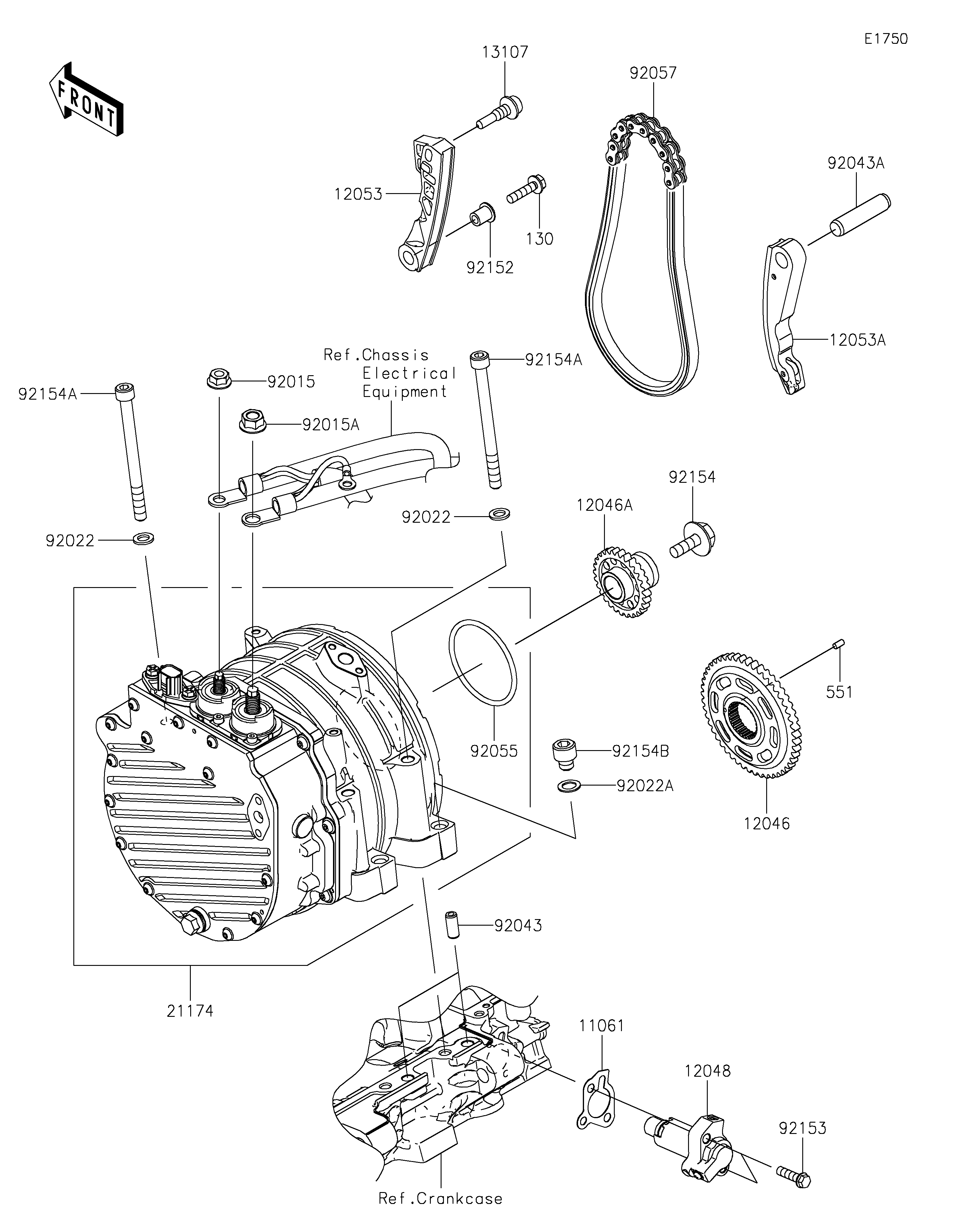

2024 NINJA® 7 HYBRID ABS - Electric Motor

DOWNLOAD PDF
SELECT A NEW PART
11061
12046
12046A
12048
12053
12053A
13107
21174
92015
92015A
92022
92022
92022A
92043
92043A
92055
92057
92152
92153
92154
92154A
92154A
92154B
92154C
92200
130
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TENSIONER 11061 11061-0796 1
SPROCKET,DRIVEN 12046 12046-0636 1
SPROCKET,DRIVE 12046A 12046-0637 1
TENSIONER-ASSY 12048 12048-0130 1
GUIDE-CHAIN,FR 12053 12053-0319 1
GUIDE-CHAIN,RR 12053A 12053-0320 1
SHAFT,CHAIN GUIDE 13107 13107-0157 1
MOTOR-ELECTRIC 21174 21174-0030 1
NUT,FLANGED,8MM 92015 92015-1014 1
NUT,10MM 92015A 92015-1021 1
WASHER,8.5X14.5X1.6 92022 92022-1470 4
WASHER,10.2X16X1 92022A 92022-1829 2
PIN 92043 92043-1770 2
PIN 92043A 92043-1774 1
RING-O,59.6X3.5 92055 92055-0974 1
CHAIN,T112 92057 92057-0865 1
COLLAR 92152 92152-0413 1
BOLT,FLANGED-SMALL,6X22 92153 92153-1560 2
BOLT,FLANGED,8X23 92154 92154-0187 1
BOLT,SOCKET,8X100 92154A 92154-4478 4
BOLT,SOCKET,10X10 92154B 92154-7167 2
BOLT 92154C 92154-7886 1
WASHER 92200 92200-2880 1
BOLT-FLANGED,6X25 130 130CA0625 1
PIN-DOWEL,4X8 551 551A0408 1
