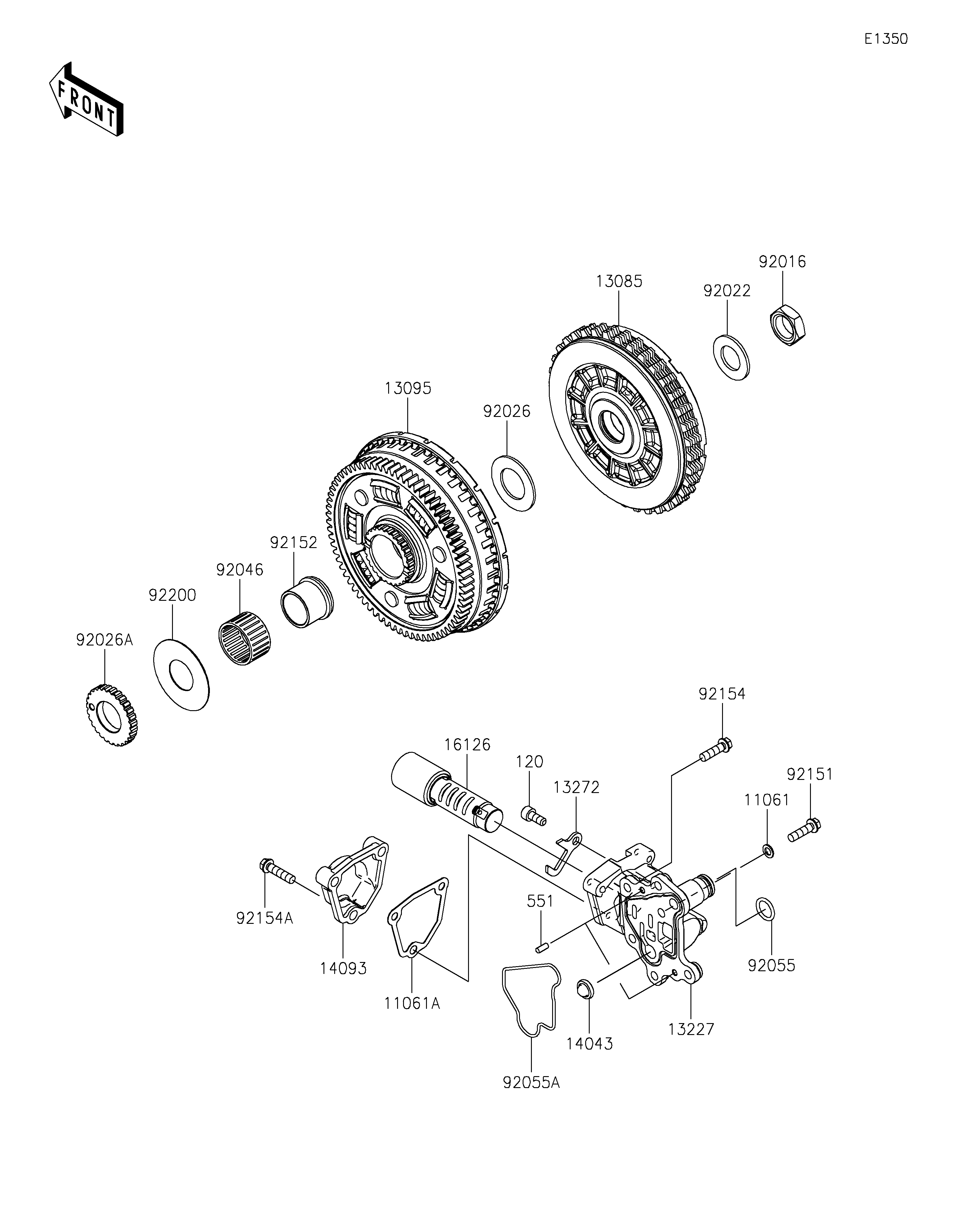

2024 NINJA® 7 HYBRID ABS - Clutch

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
13085
13095
13227
13272
14043
14093
16126
92016
92022
92026
92026A
92046
92055
92055A
92151
92152
92154
92154A
92200
120
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DRAIN 11061 11061-0875 1
GASKET,VALVE COVER 11061A 11061-1441 1
PLATE-ASSY-CLUTCH 13085 13085-0170 1
HOUSING-COMP-CLUTCH 13095 13095-0616 1
HOUSING 13227 13227-0714 1
PLATE,VALVE 13272 13272-4021 1
FILTER,ELEMENT 14043 14043-0009 1
COVER,VALVE 14093 14093-1285 1
VALVE 16126 16126-0774 1
NUT,20MM 92016 92016-028 1
WASHER,20.3X36X2.3 92022 92022-1116 1
SPACER,25.5X44.5X2 92026 92026-0734 1
SPACER 92026A 92026-0926 1
BEARING-NEEDLE,K30X35X20 92046 92046-1171 1
RING-O,13.8MM 92055 92055-0848 1
RING-O,HOUSING 92055A 92055-1730 1
BOLT,6X22 92151 92151-1936 1
COLLAR 92152 92152-2905 1
BOLT,FLANGED,6X22 92154 92154-0794 5
BOLT,FLANGED,6X25 92154A 92154-0819 3
WASHER,25.1X58X0.8 92200 92200-2539 1
BOLT-SOCKET,6X14 120 120CA0614 1
PIN-DOWEL,4X10 551 551A0410 2
