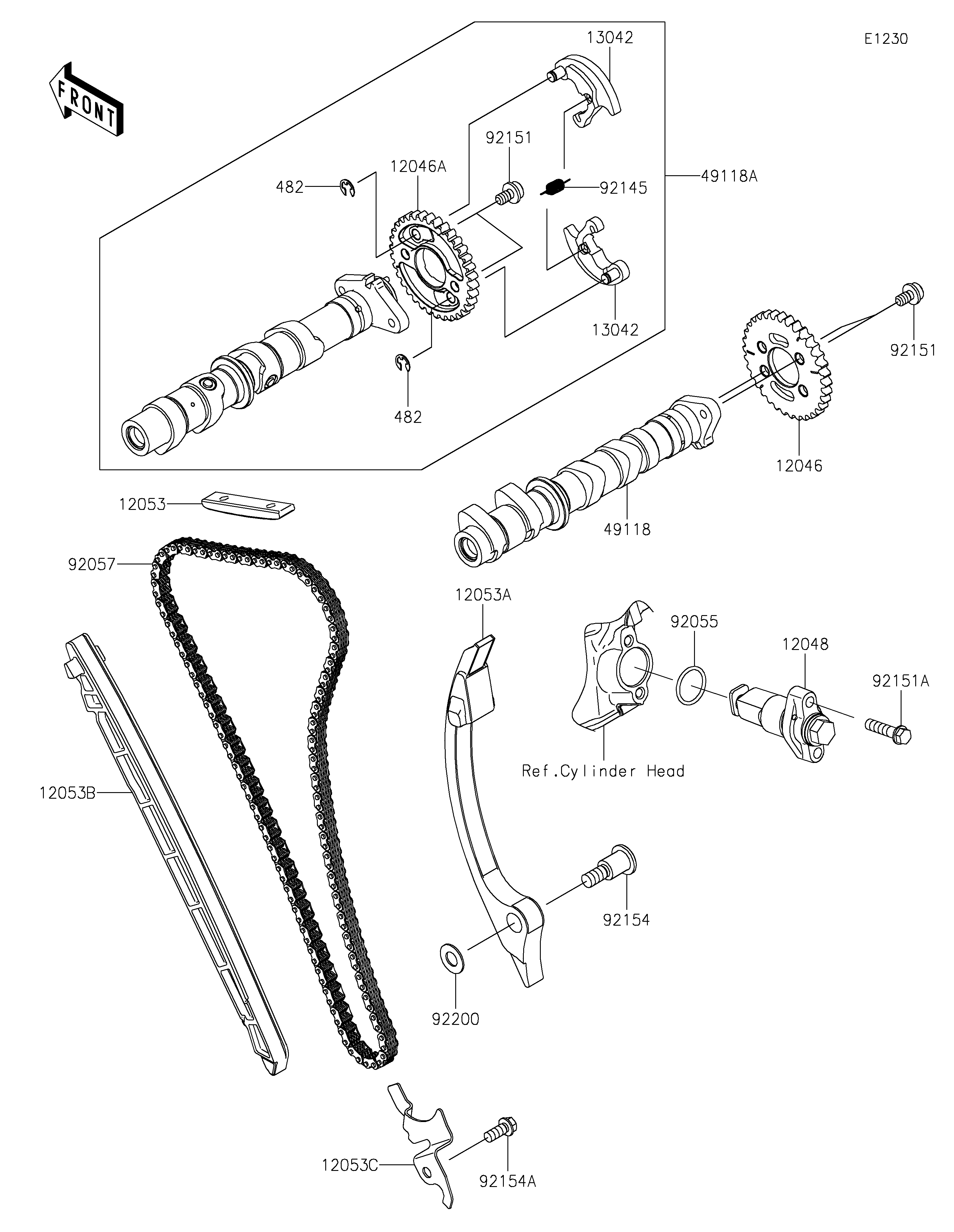

2024 NINJA® 7 HYBRID ABS - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
12046
12046A
12048
12053
12053A
12053B
12053C
13042
13042
49118
49118A
92055
92057
92145
92151
92151
92151A
92154
92154A
92200
482
482
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,34T 12046 12046-0599 1
SPROCKET,34T 12046A 12046-0635 1
TENSIONER-ASSY 12048 12048-0132 1
GUIDE-CHAIN,UPP 12053 12053-0051 1
GUIDE-CHAIN,RR 12053A 12053-0244 1
GUIDE-CHAIN,FR 12053B 12053-0323 1
GUIDE-CHAIN,LWR 12053C 12053-0324 1
WEIGHT 13042 13042-0005 2
CAMSHAFT-COMP,INTAKE 49118 49118-1272 1
CAMSHAFT-COMP,EXHAUST 49118A 49118-1293 1
RING-O,18.8X1.9 92055 92055-086 1
CHAIN,CAM,92RH2015 126M 92057 92057-0602 1
SPRING 92145 92145-0390 1
BOLT,SOCKET,6X10 92151 92151-1829 4
BOLT,FLANGED-SMALL,6X25 92151A 92151-1930 2
BOLT,SOCKET,8X29.2 92154 92154-0953 1
BOLT,FLANGED,6X14 92154A 92154-2907 1
WASHER,9X18X1 92200 92200-1954 1
CIRCLIP-TYPE-E,5MM 482 482J5000 2
