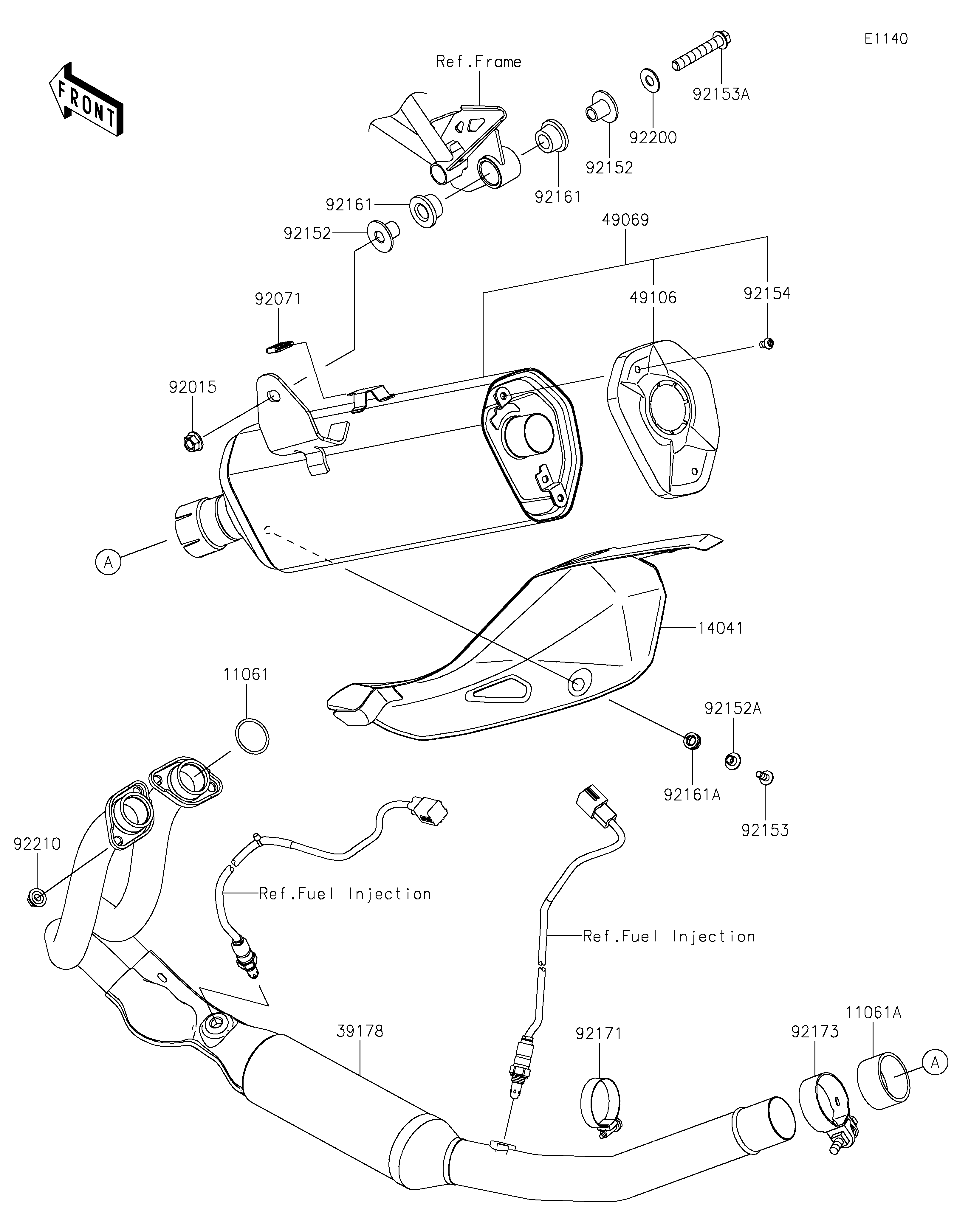

2024 NINJA® 7 HYBRID ABS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
14041
39178
49069
49106
92015
92071
92152
92152
92152A
92153
92153A
92154
92161
92161
92161A
92171
92173
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11061 11061-1249 2
GASKET,EXHAUST PIPE CONNECTING 11061A 11061-1266 1
COVER-COMP,MUFFLER 14041 14041-0634 1
MANIFOLD-COMP-EXHAUST 39178 39178-0437 1
MUFFLER-ASSY 49069 49069-0899 1
COVER-MUFFLER 49106 49106-0872 1
NUT,FLANGED,10MM 92015 92015-1387 1
GROMMET 92071 92071-0786 1
COLLAR 92152 92152-2295 2
COLLAR,6.3X8.3X16 92152A 92152-2850 1
BOLT,SOCKET,6X16 92153 92153-0817 1
BOLT,FLANGED,10X60 92153A 92153-1777 1
BOLT,SOCKET,6X10 92154 92154-7250 2
DAMPER 92161 92161-1497 2
DAMPER 92161A 92161-2152 1
CLAMP 92171 92171-0058 1
CLAMP 92173 92173-1931 1
WASHER,10.5X24X1.5 92200 92200-0154 1
NUT,8MM 92210 92210-1114 4
