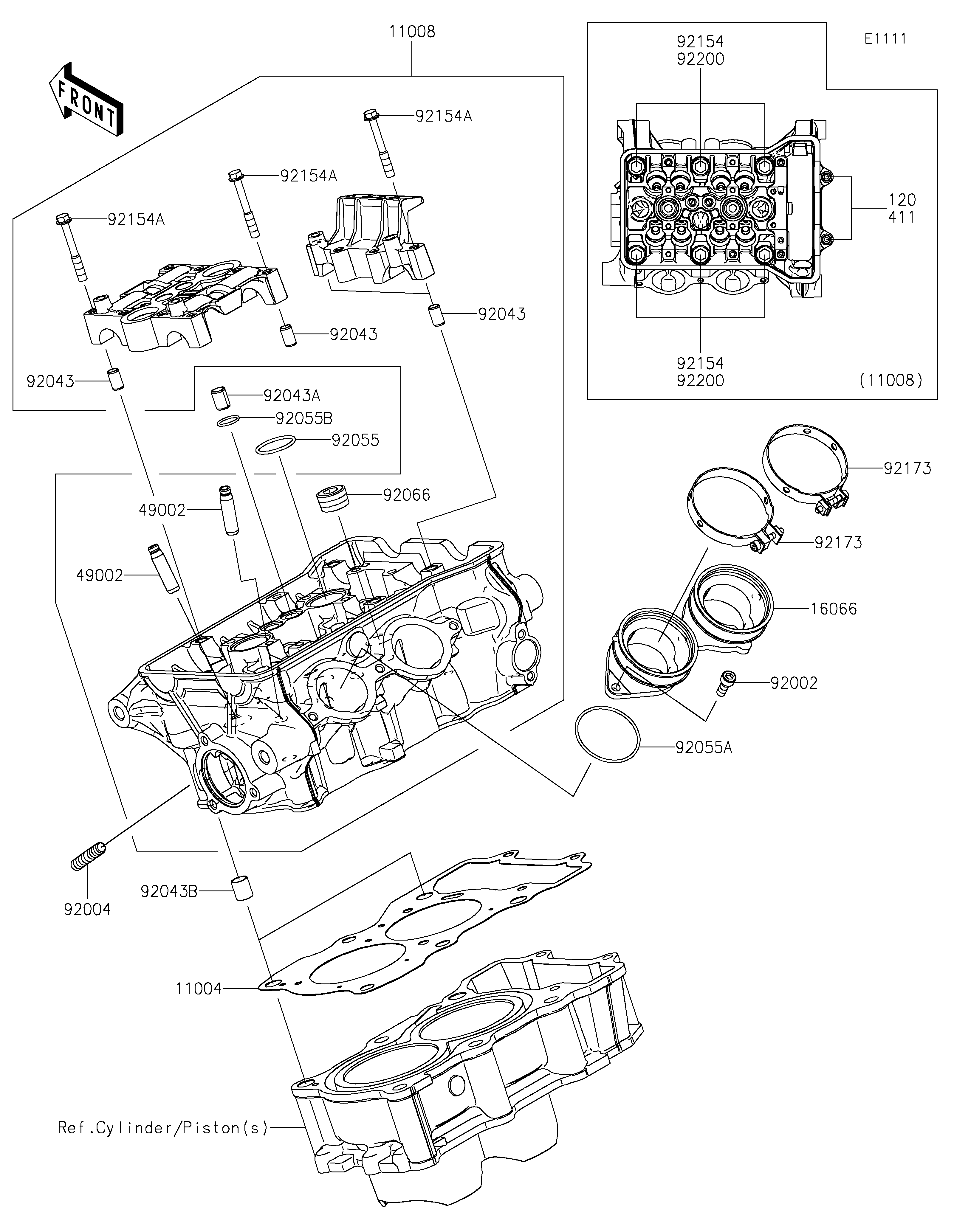

2024 NINJA® 7 HYBRID ABS - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
16066
49002
49002
92002
92004
92043
92043
92043
92043A
92043B
92055
92055A
92055B
92066
92154
92154
92154A
92154A
92154A
92173
92173
92200
92200
120
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0805 1
HEAD-COMP-CYLINDER 11008 11008-1497 1
HOLDER-THROTTLE BODY 16066 16066-0007 1
GUIDE-VALVE 49002 49002-0009 8
BOLT,6X16 92002 92002-1143 3
STUD,8X25 92004 92004-0731 4
PIN,6.2X8X14 92043 92043-1263 4
PIN,8.2X10X14 92043A 92043-1264 2
PIN,10.1X12X14 92043B 92043-4009 2
RING-O,25.5X2 92055 92055-0074 2
RING-O,44.5X1.9 92055A 92055-0890 2
RING-O,13.5X1.5 92055B 92055-0944 2
PLUG,PT1/2X12.5 92066 92066-0002 3
BOLT,FLANGED,9X138 92154 92154-2732 6
BOLT,FLANGED,6X45 92154A 92154-3737 12
CLAMP,58MM 92173 92173-2669 2
WASHER,10.5X19X2.3 92200 92200-0363 6
BOLT-SOCKET,6X90 120 120CC0690 2
WASHER-PLAIN,6MM 411 411AA0600 2
