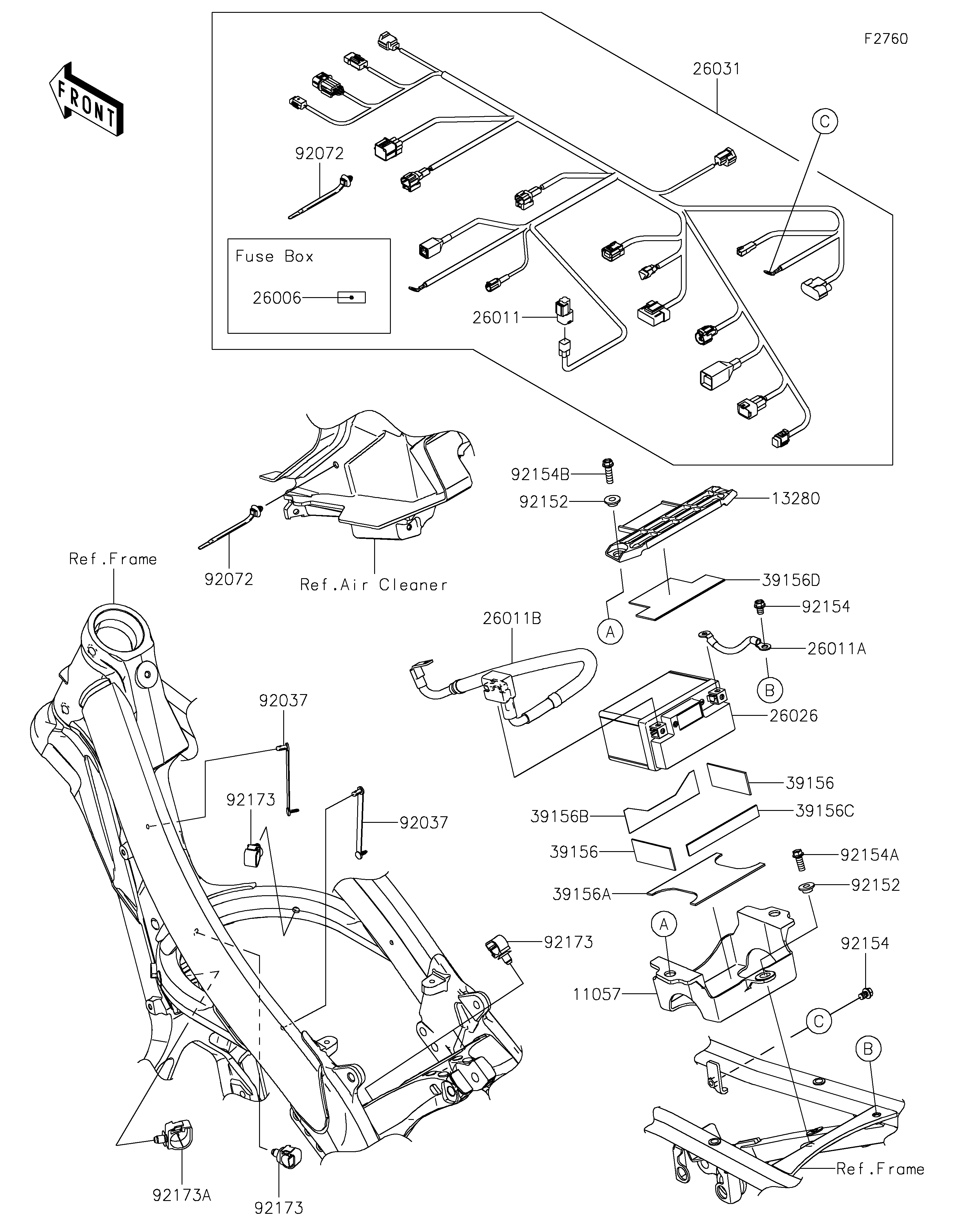

2026 KX™450X - Chassis Electrical Equipment(NRFNN/NSFNN

DOWNLOAD PDF
SELECT A NEW PART
11057
13280
26006
26011
26011A
26011B
26026
26031
39156
39156
39156A
39156B
39156C
39156D
92037
92037
92072
92072
92152
92152
92154
92154
92154A
92154B
92173
92173
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BATTERY CASE 11057 11057-1550 1
HOLDER,BATTERY COVER 13280 13280-0912 1
FUSE,MINI BLADE,5A,TAN 26006 26006-1077 1
WIRE-LEAD,NATURAL 26011 26011-0273 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0997 1
WIRE-LEAD,BATTERY(+) 26011B 26011-2429 1
BATTERY-LI-ION-STARTER,HJ01 26026 26026-0003 1
HARNESS,MAIN 26031 26031-4041 1
PAD,25X58X1.5 39156 39156-2419 2
PAD,100X72X1.5 39156A 39156-2420 1
PAD,FR 39156B 39156-2640 1
PAD,RR 39156C 39156-2641 1
PAD,TOP 39156D 39156-2642 1
CLAMP,SPEED,L=80.5 92037 92037-1903 2
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
COLLAR,6.5X10X5.6 92152 92152-0445 3
BOLT,FLANGED,6X8 92154 92154-2962 2
BOLT,FLANGED,6X16 92154A 92154-2965 1
BOLT,FLANGED,6X20 92154B 92154-2966 2
CLAMP,12MM DIA. 92173 92173-0736 4
CLAMP 92173A 92173-0861 1
