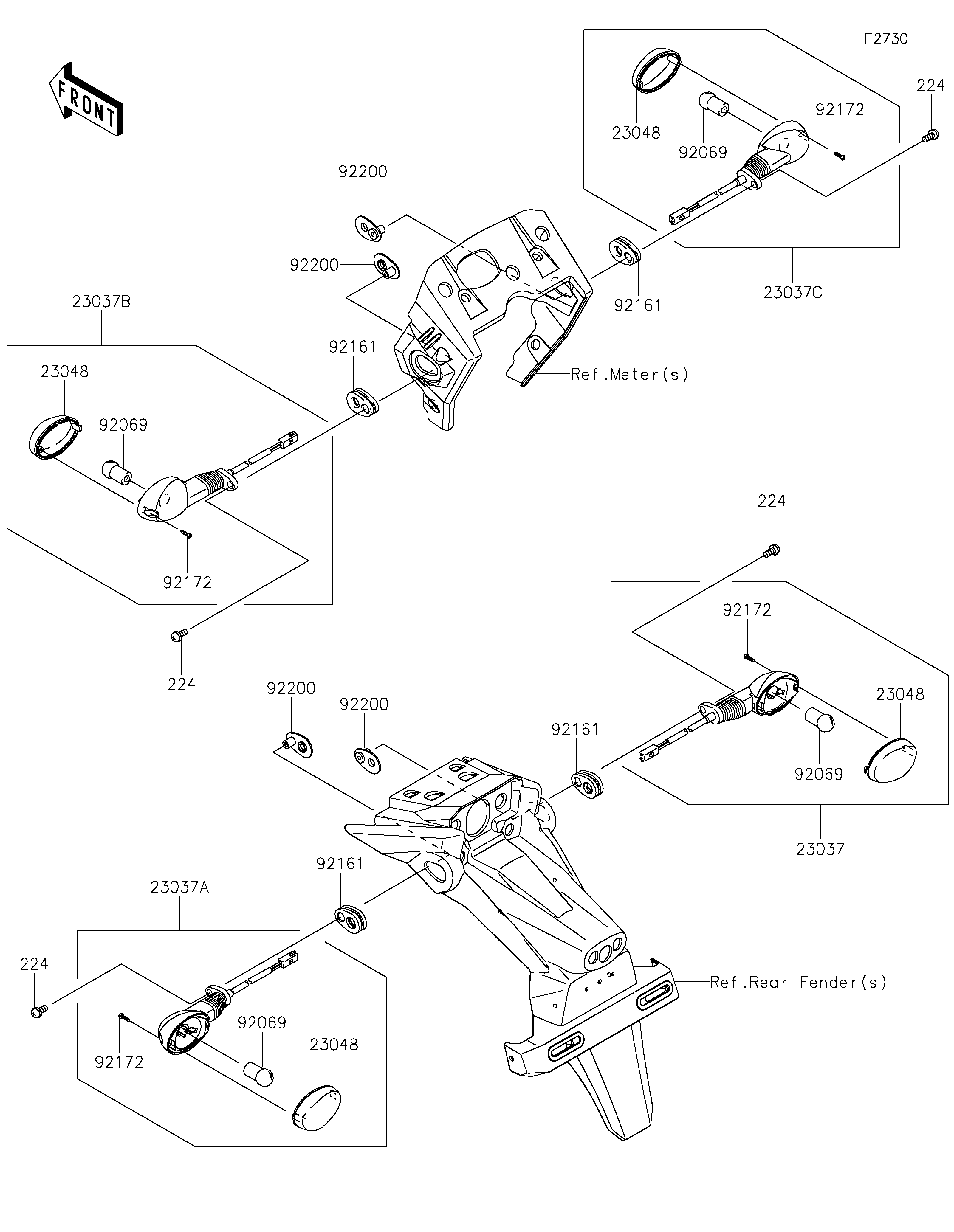

Parts Diagrams |
23037
23037A
23037B
23037C
23048
23048
23048
23048
92069
92069
92069
92069
92161
92161
92161
92161
92172
92172
92172
92172
92200
92200
92200
92200
224
224
224
224
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP-ASSY-SIGNAL,RR,RH | 23037 | 23037-0416 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,LH | 23037A | 23037-0417 | 1 | ||
| LAMP-ASSY-SIGNAL,FR,LH | 23037B | 23037-0456 | 1 | ||
| LAMP-ASSY-SIGNAL,FR,RH | 23037C | 23037-0457 | 1 | ||
| LENS-SIGNAL LAMP | 23048 | 23048-0035 | 4 | ||
| BULB,12V 10W | 92069 | 92069-0106 | 4 | ||
| DAMPER,SIGNAL LAMP | 92161 | 92161-0828 | 4 | ||
| SCREW,TAPPING,2.9X13 | 92172 | 92172-0343 | 4 | ||
| WASHER,SIGNAL LAMP | 92200 | 92200-0370 | 4 | ||
| SCREW-PAN-WP-CROS,6X14 | 224 | 224AB0614 | 4 |
