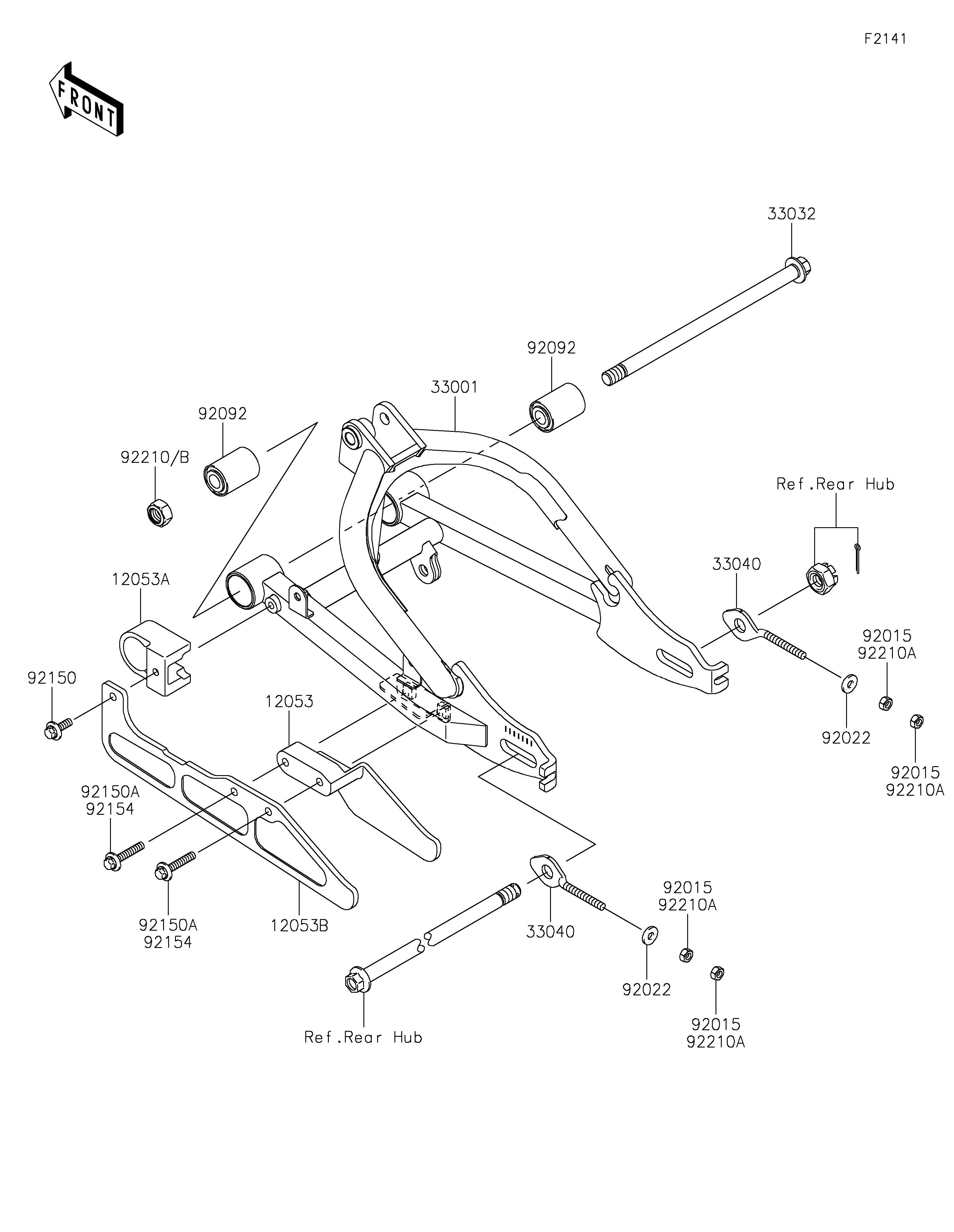

Parts Diagrams |
12053
12053A
12053B
33001
33032
33040
33040
92022
92022
92092
92092
92150
92154
92154
92210A
92210A
92210A
92210A
92210B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE-CHAIN,RR,INSIDE | 12053 | 12053-0165 | 1 | ||
| GUIDE-CHAIN,FR | 12053A | 12053-1459 | 1 | ||
| GUIDE-CHAIN,RR,OUTSIDE | 12053B | 12053-1460 | 1 | ||
| ARM-COMP-SWING,P.SILVER | 33001 | 33001-0200-458 | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-0035 | 1 | ||
| ADJUSTER-CHAIN | 33040 | 33040-1006 | 2 | ||
| WASHER,6.5X16X2 | 92022 | 92022-1565 | 2 | ||
| BUSHING-RUBBER | 92092 | 92092-1088 | 2 | ||
| BOLT,FLANGED,6X20 | 92150 | 92150-1339 | 1 | ||
| BOLT,FLANGED,6X35 | 92154 | 92154-7216 | 2 | ||
| NUT,6MM | 92210A | 92210-1972 | 4 | ||
| NUT,12MM | 92210B | 92210-1975 | 1 |
| GUIDE-CHAIN,RR,INSIDE | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,FR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,RR,OUTSIDE | |
| REF # | 12053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-COMP-SWING,P.SILVER | |
| REF # | 33001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-SWING ARM | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER-CHAIN | |
| REF # | 33040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X20 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X35 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,12MM | |
| REF # | 92210B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
