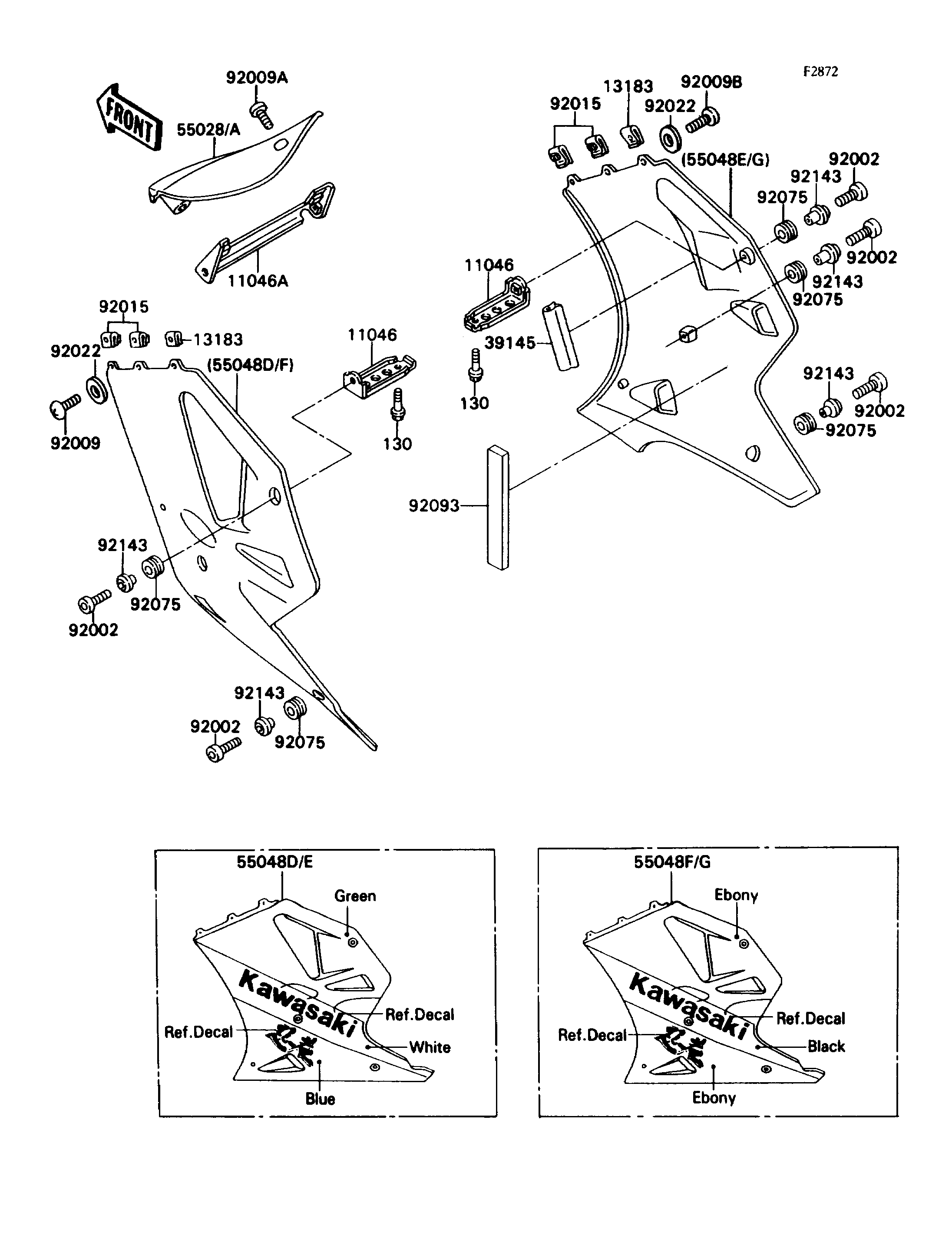

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11046 | 11046-1512 | 2 | ||
| BRACKET,LWR COWLING | 11046A | 11046-1516 | 1 | ||
| PLATE | 13183 | 13183-1474 | 2 | ||
| TRIM-SEAL,SIDE COWLING | 39145 | 39145-1055 | 2 | ||
| COWLING,LWR,FR,BLUE 24 | 55028 | 55028-1236-DB | 1 | ||
| COWLING,LWR,FR,EBONY | 55028A | 55028-1236-H8 | 1 | ||
| COWLING.,SIDE,LH,GREEN/BLUE | 55048D | 55048-5186-DY | 1 | ||
| COWLING.,SIDE,RH,GREEN/BLUE | 55048E | 55048-5187-DY | 1 | ||
| COWLING.,SIDE,LH,EBONY | 55048F | 55048-5189-H8 | 1 | ||
| COWLING.,SIDE,RH,EBONY | 55048G | 55048-5190-H8 | 1 | ||
| BOLT,SOCKET,6X18,BLACK | 92002 | 92002-1514 | 6 | ||
| SCREW,5X16,BLACK | 92009 | 92009-1301 | 4 | ||
| SCREW,5X14,BLACK | 92009A | 92009-1383 | 4 | ||
| SCREW,5X20,BLACK | 92009B | 92009-1453 | 2 | ||
| NUT,5MM | 92015 | 92015-1710 | 4 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 6 | ||
| DAMPER | 92075 | 92075-1634 | 6 | ||
| SEAL | 92093 | 92093-1277 | 2 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT-FLANGED,6X8 | 130 | 130J0608 | 2 |
