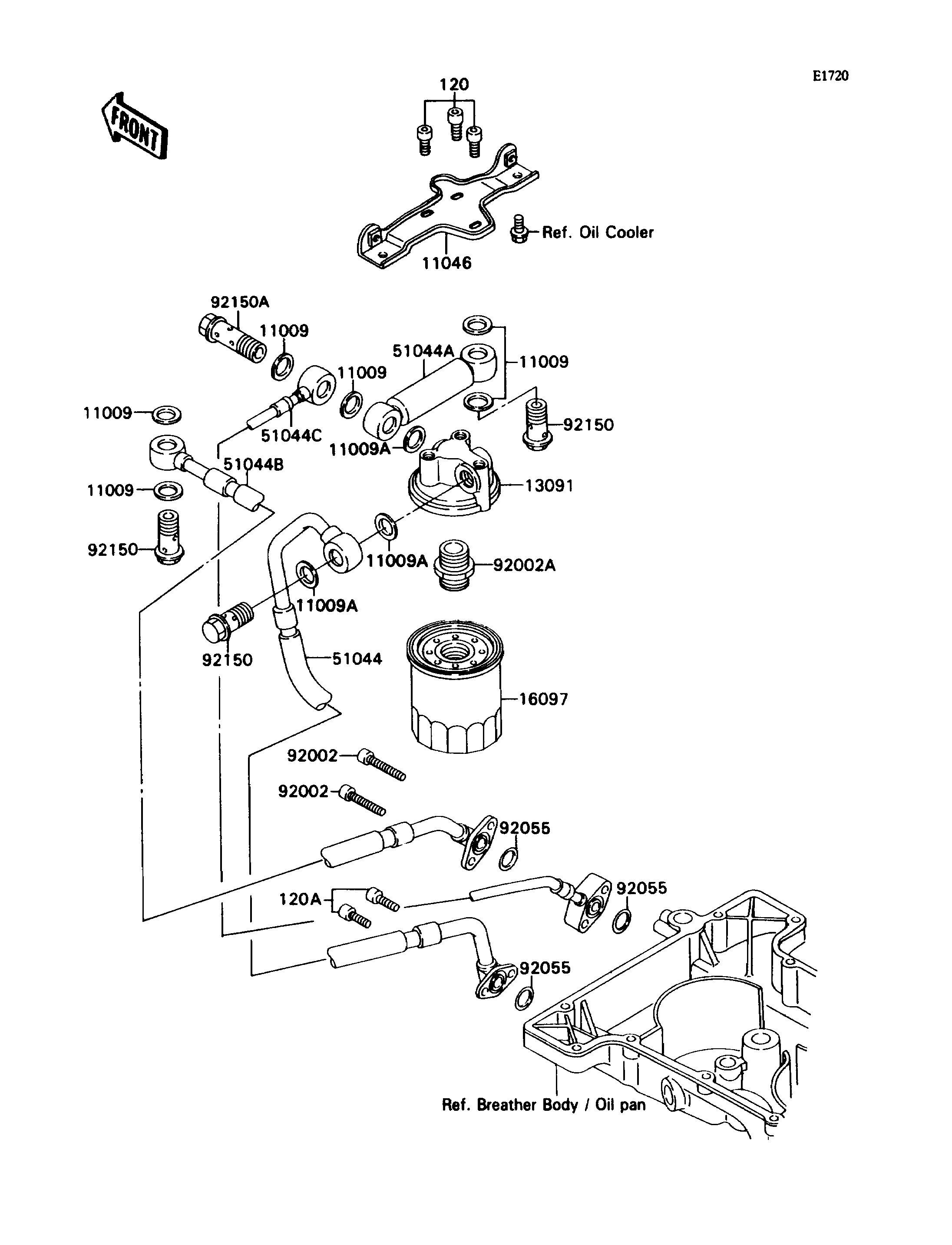

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,14X19.5X1.4 | 11009 | 11009-1461 | 6 | ||
| GASKET,14X21.5X1.4 | 11009A | 11009-1877 | 3 | ||
| BRACKET,OIL FILTER | 11046 | 11046-1578 | 1 | ||
| HOLDER,OIL FILTER | 13091 | 13091-1599 | 1 | ||
| FILTER-ASSY-OIL | 16097 | 16097-1061 | 1 | ||
| TUBE-ASSY,OIL PAN-FILTER | 51044 | 51044-1102 | 1 | ||
| TUBE-ASSY,FILTER-OIL COOLER | 51044A | 51044-1103 | 1 | ||
| TUBE-ASSY,OIL COOLER-OIL PAN | 51044B | 51044-1104 | 1 | ||
| TUBE-ASSY | 51044C | 51044-1111 | 1 | ||
| BOLT,6X35 | 92002 | 92002-1270 | 2 | ||
| BOLT,OIL FILTER | 92002A | 92002-1899 | 1 | ||
| RING-O,1.9X15.8 | 92055 | 92055-1460 | 3 | ||
| BOLT,BANJO,14X28.5 | 92150 | 92150-1242 | 3 | ||
| BOLT,BANJO,14X46 | 92150A | 92150-1324 | 1 | ||
| BOLT-SOCKET,6X14,BLACK | 120 | 120S0614 | 3 | ||
| BOLT-SOCKET,6X16,BLACK | 120A | 120S0616 | 2 |
| GASKET,14X19.5X1.4 | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GASKET,14X21.5X1.4 | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BRACKET,OIL FILTER | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,OIL FILTER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-ASSY-OIL | |
| REF # | 16097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY,OIL PAN-FILTER | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY,FILTER-OIL COOLER | |
| REF # | 51044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY,OIL COOLER-OIL PAN | |
| REF # | 51044B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY | |
| REF # | 51044C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X35 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL FILTER | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,1.9X15.8 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,BANJO,14X28.5 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,BANJO,14X46 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X14,BLACK | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X16,BLACK | |
| REF # | 120A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
