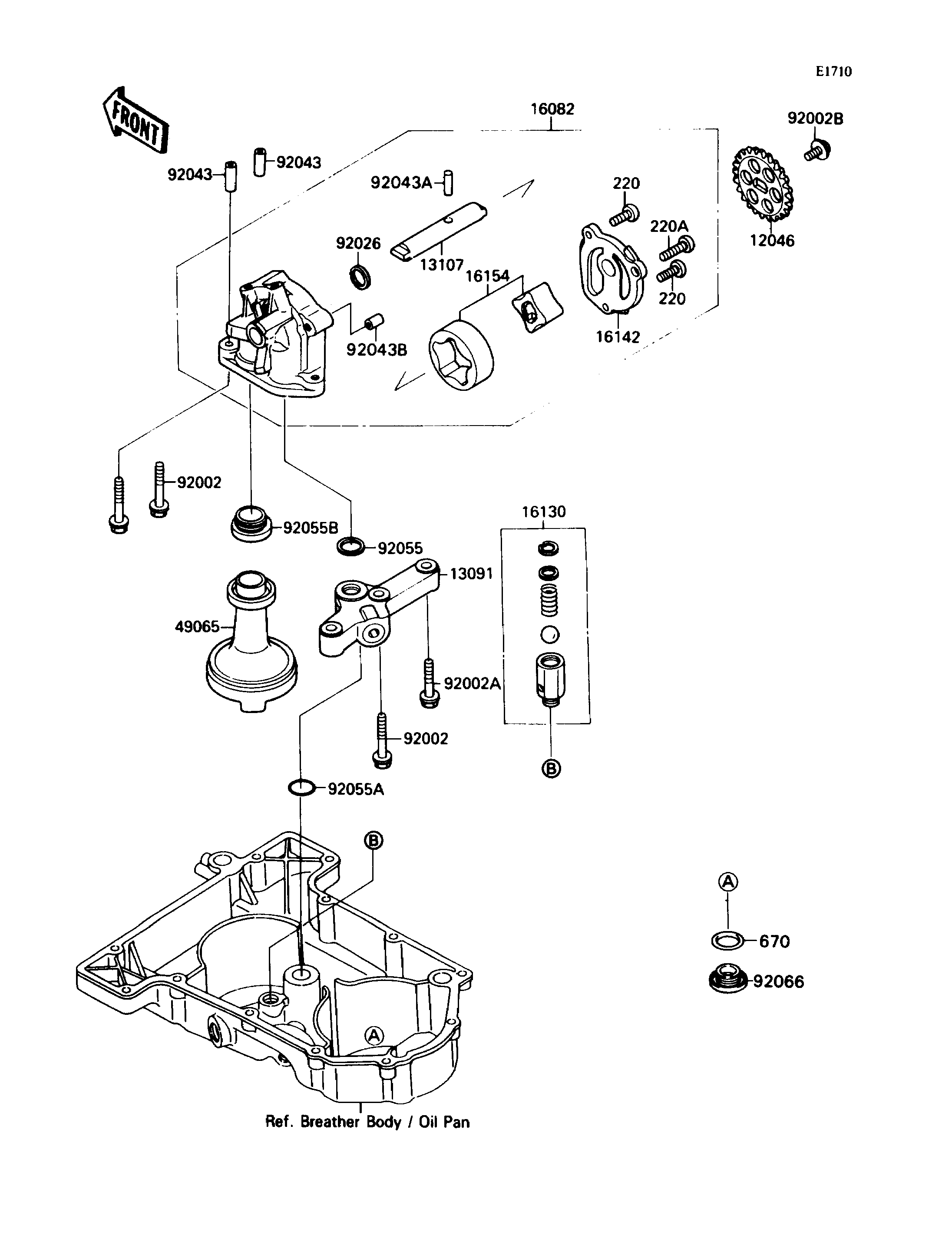

1989 Ninja® ZX™-7 - Oil Pump/Oil Filter
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,25T | 12046 | 12046-1093 | 1 | ||
| HOLDER,OIL PUMP | 13091 | 13091-1439 | 1 | ||
| SHAFT | 13107 | 13107-1199 | 1 | ||
| PUMP-ASSY-OIL | 16082 | 16082-1083 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1054 | 1 | ||
| COVER-PUMP | 16142 | 16142-1075 | 1 | ||
| ROTOR-PUMP | 16154 | 16154-1063 | 1 | ||
| FILTER-OIL | 49065 | 49065-1062 | 1 | ||
| BOLT,6X38 | 92002 | 92002-1431 | 3 | ||
| BOLT,6X30 | 92002A | 92002-1797 | 2 | ||
| BOLT,6X14 | 92002B | 92002-1859 | 1 | ||
| SPACER | 92026 | 92026-1284 | 1 | ||
| PIN,6.2X8X21 | 92043 | 92043-1335 | 2 | ||
| PIN | 92043A | 92043-1353 | 1 | ||
| PIN | 92043B | 92043-1354 | 1 | ||
| RING-O,19.5MM | 92055 | 92055-077 | 1 | ||
| RING-O,16.3X3.5 | 92055A | 92055-1353 | 1 | ||
| RING-O,OIL FILTER | 92055B | 92055-1354 | 1 | ||
| PLUG,ROCKER SHAFT | 92066 | 92066-1188 | 1 | ||
| SCREW-PAN-CROS,6X16 | 220 | 220B0616 | 2 | ||
| SCREW-PAN-CROS,6X20,WHITE | 220A | 220B0620 | 1 | ||
| O RING,20MM | 670 | 670B2020 | 1 |
